Delivery of APP24 High Pressure Seawater Desalination Pump
By admin
0 Comments

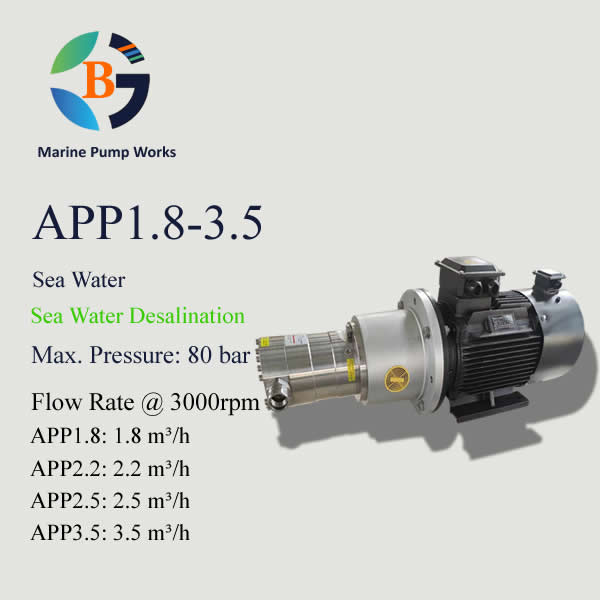

APP1.8-3.5
Type: Positive Displacement Axial Piston Pump
Fluid: Sea Water
Application: Seawater Desalination/ Reverse Osmosis
Max. Pressure: 80 bar
APP1.8 Flow Rate @ 3000rpm: 1.8 m³/h
APP2.2 Flow Rate @ 3000rpm: 2.2 m³/h
APP2.5 Flow Rate @ 3000rpm: 2.5 m³/h
APP3.5 Flow Rate @ 3000rpm: 3.5 m³/h
Certificate: NK/ABS
Description
APP pumps are positive displacement axial piston pumps, flow is proportional to the number of revolutions(rpm), unlike centrifugal pumps, they produce a fixed flow at a given speed no matter what the discharge pressure.
APP1.8/APP2.2/APP2.5/APP3.5 high pressure desalination pumps are axial piston pumps designed for seawater desalination RO(reverse osmosis) system with flow rate 1.6/2.2/2.5/3.5 m³/h @ 3000rpm, max. pressure 80bar.
1. Model Key
APP3.5
- PAH – High Pressure Pump Code
- 3.5 – Flow Rate is 3.5 m³/h @ 3000rpm
2. Construction:
| Part No. | Name | Part No. | Name |
| 1 | Main Shaft | 11 | Piston |
| 2 | Shaft Seal | 12 | Spring |
| 3 | Mounting Flange | 13 | Bushing |
| 4 | Cylinder Barrel | 14 | Guide Pin |
| 5 | Casing with bearing | 15 | Top Pin |
| 6 | Port Flange | 16 | Piston Shoes |
| 7 | Swash Plate | 17 | Plug |
| 8 | Port Plate | 18 | Flushing Valve |
| 9 | Retainer plate | ||
| 10 | Valve Plate |
3. Technical Date:
| Model | APP1.8 | APP2.2 | APP2.5 | APP3.5 |
| Geometric Displacement(cm³/rev) | 10 | 12.5 | 15 | 20 |
| Min. Continuous Speed(rpm) | 700 | 700 | 700 | 700 |
| Max. Continuous Speed(rpm) | 3450 | 3450 | 3450 | 3450 |
| Min. Outlet Pressure(bar) | 20 | 20 | 20 | 20 |
| Max. Continuous Outlet Pressure(bar) | 80 | 80 | 80 | 80 |
| Peak Pressure(bar) | 100 | 100 | 100 | 100 |
| Max. Continuous Flow @ 3000rpm(m³/h) | 1.8 | 2.2 | 2.5 | 3.5 |
| Working Noise @1m Distance(dB) | ＜77 | ＜77 | ＜77 | ＜77 |
| Motor Power Required @ 3000rpm(kW) | 5.5 | 7.5 | 7.5 | 11 |
| Media Temperature(℃) | 3~50 | 3~50 | 3~50 | 3~50 |
| Ambient Temperature(℃) | 3~50 | 3~50 | 3~50 | 3~50 |
| Main Material | SAF 2205 | SAF 2205 | SAF 2205 | SAF 2205 |
| Flushing Valve | Include | Include | Include | Include |
| Pump Weight(kg) | 7.8 | 7.8 | 7.8 | 7.8 |

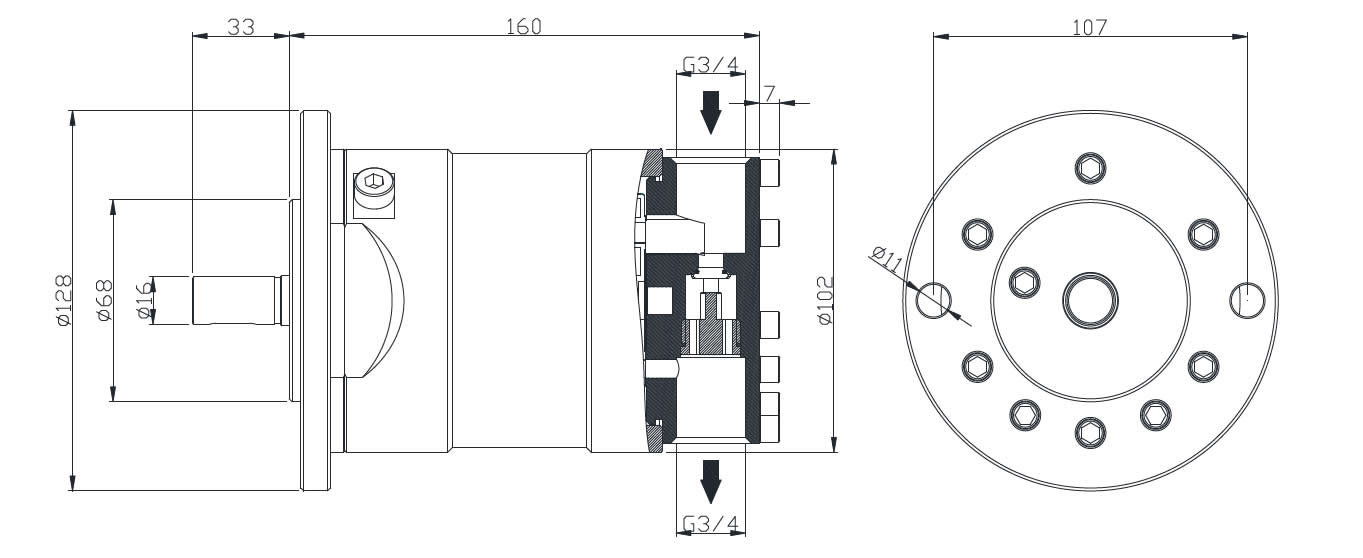

4. Dimensions:
