Delivery of APP24 High Pressure Seawater Desalination Pump
By admin
0 Comments
CR10
Type: Vertical Multistage Pump in Series
Pump No.: 2 sets
Fluid: Fresh Water & Sea Water
Application: RO System/ High Pressure Water Supply
Q(@50Hz, 2900r/min): 5 ~ 13 m³/h
Hmax(@50Hz, 2900r/min): 444 m
Description

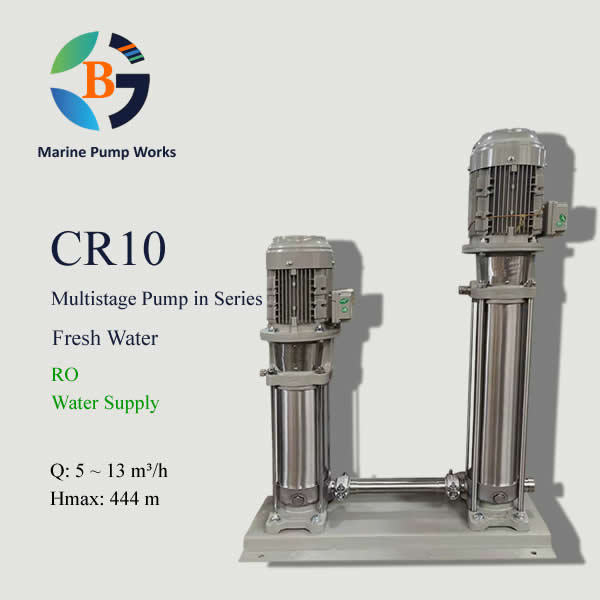

CR10 vertical multistage pump in series is 2 sets multistage centrifugal pump with rated capacity 10 m³/h to achieve max. high pressure 444m. CR vertical multistage pumps in series is specially designed for Reverse Osmosis system and high pressure water supply system.
1. Model Key
CR10-200+220
- CR – Industrial pump code
- 10 – Pump rated capacity is 10 m³/h
- 200 – Number of impellers of Jockey Pump is 20
- 220 – Number of impellers of High Pressure Pump is 22
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Pump Head | QT500/SUS304、316、2205 |
| 3 | Seal Cover | QT500/SUS304、316、2205 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Top Diffuser | SUS304、316、2205 |
| 6 | Diffuser | SUS304、316、2205 |
| 7 | Support Diffuser | SUS304、316、2205 |
| 8 | Coupling | QT500 |
| 9 | Impeller | SUS304、316、2205 |
| 10 | Cylinder | SUS304、316、2205 |
| 11 | Shaft | SUS304、316、2205 |
| 12 | Bearing | TC |
| 13 | Inducer | SUS304、316、2205 |
| 14 | Pump Base | QT500/SUS304、316、2205 |
| 15 | Base Plate | QT500 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 |
| CR10-20+220 | 0.75+7.5 | H (m) | 241 | 236 | 229 | 217 | 205 | 191 | 175 | 158 | 137 |
| CR10-30+220 | 1.1+7.5 | 252 | 248 | 241 | 229 | 217 | 201 | 185 | 167 | 145 | |
| CR10-40+220 | 1.5+7.5 | 263 | 259 | 252 | 240 | 226 | 211 | 194 | 175 | 151 | |
| CR10-50+220 | 2.2+7.5 | 272 | 268 | 261 | 249 | 235 | 219 | 201 | 181 | 157 | |
| CR10-60+220 | 2.2+7.5 | 282 | 278 | 270 | 258 | 243 | 227 | 209 | 188 | 164 | |
| CR10-70+220 | 3.0+7.5 | 293 | 288 | 280 | 267 | 252 | 235 | 216 | 195 | 169 | |
| CR10-80+220 | 3.0+7.5 | 303 | 298 | 290 | 278 | 261 | 243 | 224 | 202 | 175 | |
| CR10-90+220 | 3.0+7.5 | 313 | 308 | 300 | 286 | 270 | 251 | 232 | 209 | 180 | |
| CR10-100+220 | 4.0+7.5 | 324 | 318 | 310 | 296 | 280 | 261 | 239 | 216 | 187 | |
| CR10-120+220 | 4.0+7.5 | 343 | 338 | 327 | 313 | 296 | 276 | 254 | 229 | 198 | |
| CR10-140+220 | 5.5+1.5 | 364 | 358 | 348 | 334 | 315 | 293 | 269 | 243 | 210 | |
| CR10-160+220 | 5.5+7.5 | 384 | 378 | 367 | 352 | 331 | 309 | 284 | 256 | 221 | |
| CR10-180+220 | 7.5+7.5 | 405 | 399 | 388 | 370 | 350 | 327 | 301 | 270 | 235 | |
| CR10-200+220 | 7.5+7.5 | 425 | 419 | 408 | 389 | 368 | 344 | 316 | 283 | 248 | |
| CR10-220+220 | 7.5+7.5 | 444 | 438 | 426 | 406 | 384 | 358 | 330 | 298 | 260 |

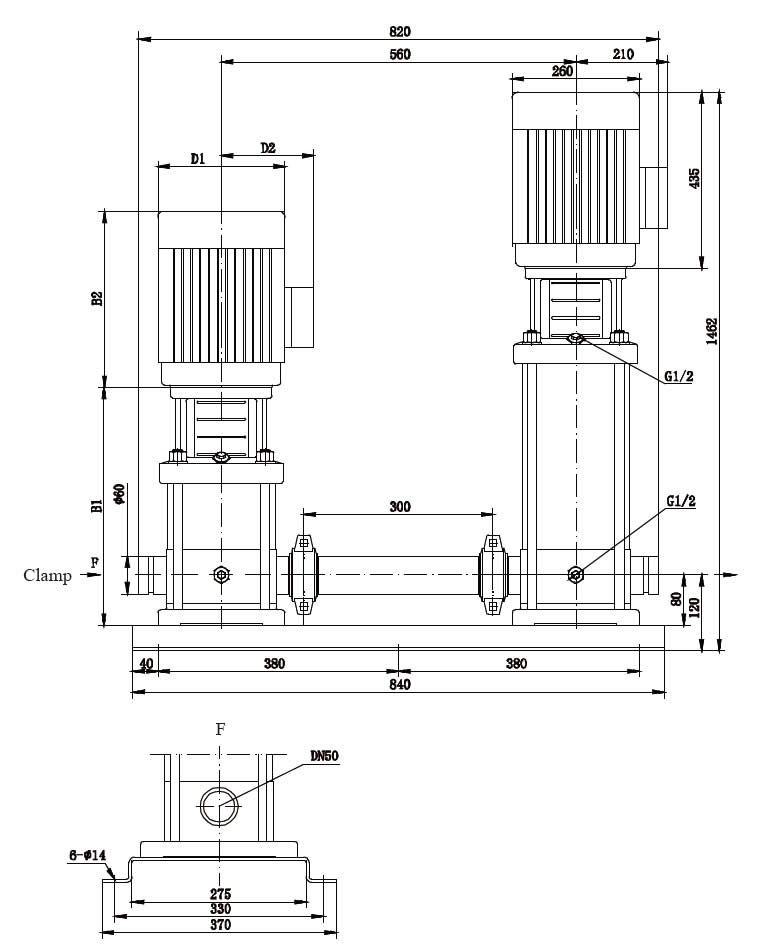

4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size（mm) | Weight | ||||
| Bl | B2 | B1＋B2 | D1 | D2 | (kg) | |
| CR10-20+220 | 347 | 280 | 627 | 170 | 142 | 144 |
| CR10-30+220 | 377 | 280 | 657 | 170 | 142 | 146 |
| CR10-40+220 | 417 | 333 | 750 | 190 | 155 | 152 |
| CR10-50+220 | 447 | 333 | 780 | 190 | 155 | 156 |
| CR10-60+220 | 477 | 333 | 810 | 190 | 155 | 157 |
| CR10-70+220 | 517 | 348 | 865 | 197 | 165 | 164 |
| CR10-80+220 | 547 | 348 | 895 | 197 | 165 | 165 |
| CR10-90+220 | 577 | 348 | 925 | 197 | 165 | 166 |
| CR10-100+220 | 607 | 382 | 989 | 230 | 185 | 176 |
| CR10-120+220 | 667 | 382 | 1049 | 230 | 185 | 178 |
| CR10-140+220 | 747 | 435 | 1182 | 260 | 210 | 193 |
| CR10-160+220 | 807 | 435 | 1242 | 260 | 210 | 194 |
| CR10-180+220 | 867 | 435 | 1302 | 260 | 210 | 205 |
| CR10-200+220 | 927 | 435 | 1362 | 260 | 210 | 206 |
| CR10-220+220 | 987 | 435 | 1422 | 260 | 210 | 207 |
