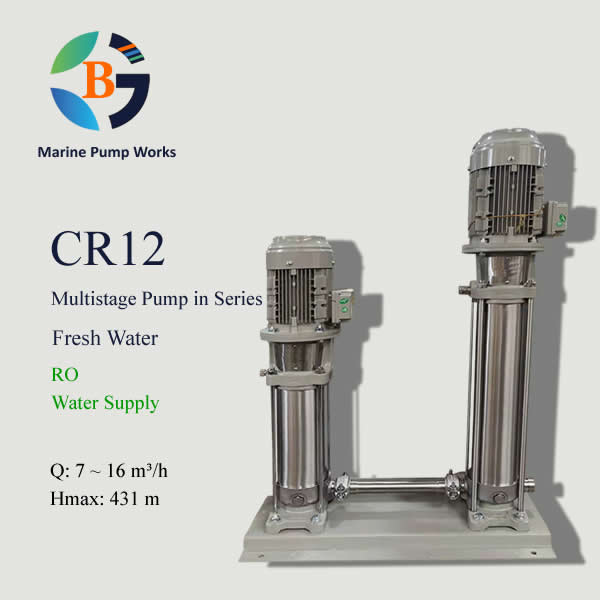

Delivery of APP24 High Pressure Seawater Desalination Pump
By admin
0 Comments
CR12
Type: Vertical Multistage Pump in Series
Pump No.: 2 sets
Fluid: Fresh Water & Sea Water
Application: RO System/ High Pressure Water Supply
Q(@50Hz, 2900r/min): 7 ~ 16 m³/h
Hmax(@50Hz, 2900r/min): 431 m
Description
CR12 vertical multistage pump in series is 2 sets multistage centrifugal pump with rated capacity 12 m³/h to achieve max. high pressure 431m. CR vertical multistage pumps in series is specially designed for Reverse Osmosis system and high pressure water supply system.
1. Model Key
CR12-180+180
- CR – Industrial pump code
- 12 – Pump rated capacity is 12 m³/h
- 180 – Number of impellers of Jockey Pump is 18
- 180 – Number of impellers of High Pressure Pump is 18
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Pump Head | QT500/SUS304、316、2205 |
| 3 | Seal Cover | QT500/SUS304、316、2205 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Top Diffuser | SUS304、316、2205 |
| 6 | Diffuser | SUS304、316、2205 |
| 7 | Support Diffuser | SUS304、316、2205 |
| 8 | Coupling | QT500 |
| 9 | Impeller | SUS304、316、2205 |
| 10 | Cylinder | SUS304、316、2205 |
| 11 | Shaft | SUS304、316、2205 |
| 12 | Bearing | TC |
| 13 | Inducer | SUS304、316、2205 |
| 14 | Pump Base | QT500/SUS304、316、2205 |
| 15 | Base Plate | QT500 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| CR12-20+180 | 1.5＋11 | H (m) | 237.5 | 232 | 225.5 | 218 | 210 | 200 | 187.5 | 174 | 157.5 | 141 |
| CR12-30+180 | 2.2+11 | 249.5 | 244 | 237 | 229 | 220.5 | 210 | 197 | 183 | 165.5 | 148 | |
| CR12-40+180 | 3.0+11 | 261 | 255 | 248 | 240 | 231 | 220 | 206 | 191 | 173 | 155 | |
| CR12-50+180 | 3.0+11 | 273.5 | 267 | 259.5 | 251 | 241.5 | 230 | 215.5 | 200 | 181 | 162 | |
| CR12-60+180 | 4.0+11 | 285.5 | 279 | 271 | 262 | 252 | 240 | 225 | 却9 | 189 | 169 | |
| CR12-70+180 | 5.5+11 | 297.5 | 291 | 282.5 | 273 | 262.5 | 250 | 234.5 | 218 | 197 | 176 | |
| CR12-80+180 | 5.5+11 | 309.5 | 303 | 294 | 284 | 273 | 260 | 244 | 227 | 205 | 183 | |
| CR12-90+180 | 5.5+11 | 322 | 315 | 306 | 296 | 284.5 | 271 | 254 | 236 | 213.5 | 191 | |
| CR12-100+180 | 7.5+11 | 334 | 327 | 317.5 | 3σ7 | 295 | 281 | 263.5 | 245 | 222 | 199 | |
| CR12-120+180 | 7.5+11 | 357.5 | 350 | 340 | 329 | 316 | 301 | 282.5 | 263 | 238 | 213 | |
| CR12-140+180 | 11+11 | 382 | 374 | 363 | 351 | 337 | 321 | 301.5 | 281 | 254 | 227 | |
| CR12-160+180 | 11+11 | 406.5 | 398 | 386.5 | 374 | 359 | 342 | 321 | 299 | 270.5 | 242 | |
| CR12-180+180 | 11+11 | 431 | 422 | 410.5 | 398 | 381.5 | 363 | 340.5 | 317 | 287 | 257 |

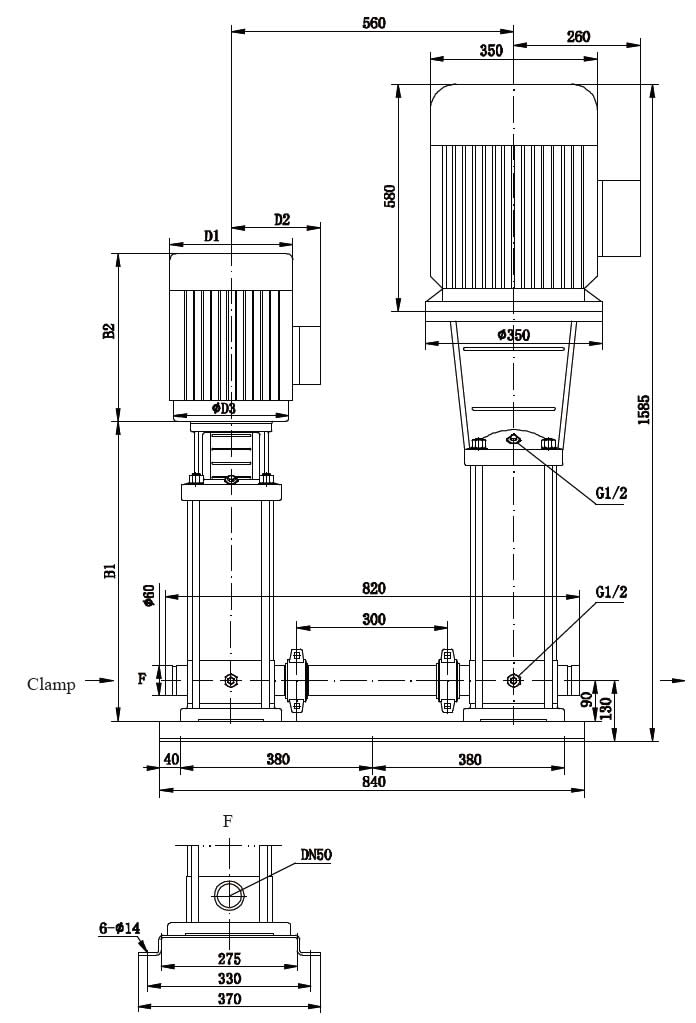

4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size（mm) | Weight | ||||
| Bl | B2 | B1＋B2 | D1 | D2 | (kg) | |
| CR12-20+180 | 367 | 333 | 700 | 190 | 155 | 220 |
| CR12-30+180 | 397 | 333 | 730 | 190 | 155 | 224 |
| CR12-40+180 | 437 | 348 | 785 | 197 | 165 | 232 |
| CR12-50+180 | 467 | 348 | 815 | 197 | 165 | 234 |
| CR12-60+180 | 497 | 382 | 879 | 230 | 188 | 242 |
| CR12-70+180 | 547 | 435 | 982 | 260 | 208 | 254 |
| CR12-80+180 | 577 | 435 | 1012 | 260 | 208 | 255 |
| CR12-90+180 | 607 | 435 | 1042 | 260 | 208 | 257 |
| CR12-100+180 | 637 | 435 | 1072 | 260 | 208 | 264 |
| CR12-120+180 | 697 | 435 | 1132 | 260 | 208 | 268 |
| CR12-140+180 | 845 | 580 | 1425 | 350 | 260 | 339 |
| CR12-160+180 | 905 | 580 | 1485 | 350 | 260 | 342 |
| CR12-180+180 | 965 | 580 | 1545 | 350 | 260 | 345 |
