Delivery of APP24 High Pressure Seawater Desalination Pump
By admin
0 Comments
CR120
Type: Vertical Multistage Pump in Series
Pump No.: 2 sets
Fluid: Fresh Water & Sea Water
Application: RO System/ High Pressure Water Supply
Q(@50Hz, 2900r/min): 60 ~ 150 m³/h
Hmax(@50Hz, 2900r/min): 325 m
Description

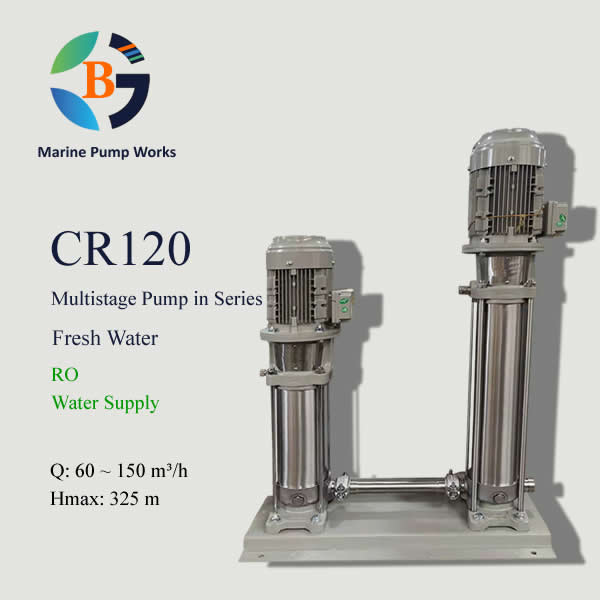

CR120 vertical multistage pump in series is 2 sets multistage centrifugal pump with rated capacity 120 m³/h to achieve max. high pressure 325m. CR vertical multistage pumps in series is specially designed for Reverse Osmosis system and high pressure water supply system.
1. Model Key
CR120-60-2+70
- CR – Industrial pump code
- 120 – Pump rated capacity is 120 m³/h
- 60 – Number of impellers of Jockey Pump is 6
- 2 – Number of reduced-diameter impellers is 2
- 70 – Number of impellers of High Pressure Pump is 7
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Pump Head | QT500/SUS304、316、2205 |
| 3 | Seal Cover | QT500/SUS304、316、2205 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Top Diffuser | SUS304、316、2205 |
| 6 | Diffuser | SUS304、316、2205 |
| 7 | Support Diffuser | SUS304、316、2205 |
| 8 | Coupling | QT500 |
| 9 | Impeller | SUS304、316、2205 |
| 10 | Cylinder | SUS304、316、2205 |
| 11 | Shaft | SUS304、316、2205 |
| 12 | Bearing | TC |
| 13 | Inducer | SUS304、316、2205 |
| 14 | Pump Base | QT500/SUS304、316、2205 |
| 15 | Base Plate | QT500 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 60 | 80 | 100 | 110 | 120 | 130 | 140 | 150 |
| CR120-10+70 | 11+75 | H (m) | 184.S | 180.1 | 171.5 | 167.5 | 163.S | 154 | 146 | 137.5 |
| CR120-20-2+70 | 15+75 | 196.5 | 191.5 | 181.2 | 178 | 173.5 | 164 | 155 | 146.5 | |
| CR120-20-1+70 | 18.5十75 | 203.5 | 198 | 188 | 184.5 | 179.5 | 169.5 | 160 | 150 | |
| CR120-20+70 | 22+75 | 208.5 | 203 | 193.4 | 189 | 185 | 175 | 166 | 156 | |
| CR120-30-2+70 | 30+75 | 219.5 | 213.5 | 203 | 199 | 194 | 183.5 | 173.5 | 163.5 | |
| CR120-30-1+70 | 30+75 | 226.5 | 220.5 | 209.5 | 205.5 | 200.5 | 189 | 179 | 168.5 | |
| CR120-30+70 | 30+75 | 232 | 226 | 215.4 | 210.5 | 206 | 194.5 | 184.5 | 173.5 | |
| CR120-40-2+70 | 37+75 | 243 | 236.5 | 224.5 | 220 | 214 | 203 | 191.5 | 180.5 | |
| CR120-40-1+70 | 37+75 | 249.5 | 243 | 231 | 226 | 221 | 209 | 198 | 187 | |
| CR120-40+70 | 45+75 | 255 | 248.5 | 236.5 | 231 | 226 | 214 | 203 | 191 | |
| CR120-50-2+70 | 45+75 | 267 | 259.5 | 247 | 241 | 235 | 222.5 | 210.5 | 198 | |
| CR120-50-1+70 | 45+75 | 273 | 266 | 253 | 248 | 242 | 229 | 216.5 | 205.5 | |
| CR120-50+70 | 55+75 | 278 | 271.5 | 258.5 | 252.5 | 246.5 | 233 | 221 | 208.5 | |
| CR120-60-2+70 | 55+75 | 290.5 | 281.5 | 268.3 | 261.5 | 255 | 241.5 | 228.5 | 215 | |
| CR120-60-1+70 | 55+75 | 296.5 | 289 | 275 | 269 | 263 | 248 | 235 | 222.5 | |
| CR120-60+70 | 75+75 | 301.5 | 293.5 | 279.8 | 274 | 268 | 253 | 240 | 226.5 | |
| CR120-70-2+70 | 75+75 | 313.5 | 304 | 289.6 | 282 | 275 | 260.5 | 246.5 | 231.5 | |
| CR120-70-1+70 | 75+75 | 319 | 310.5 | 295.5 | 289 | 282.5 | 267 | 253 | 239 | |
| CR120-70+70 | 75+75 | 325 | 317 | 302 | 296 | 290 | 274 | 260 | 245 |

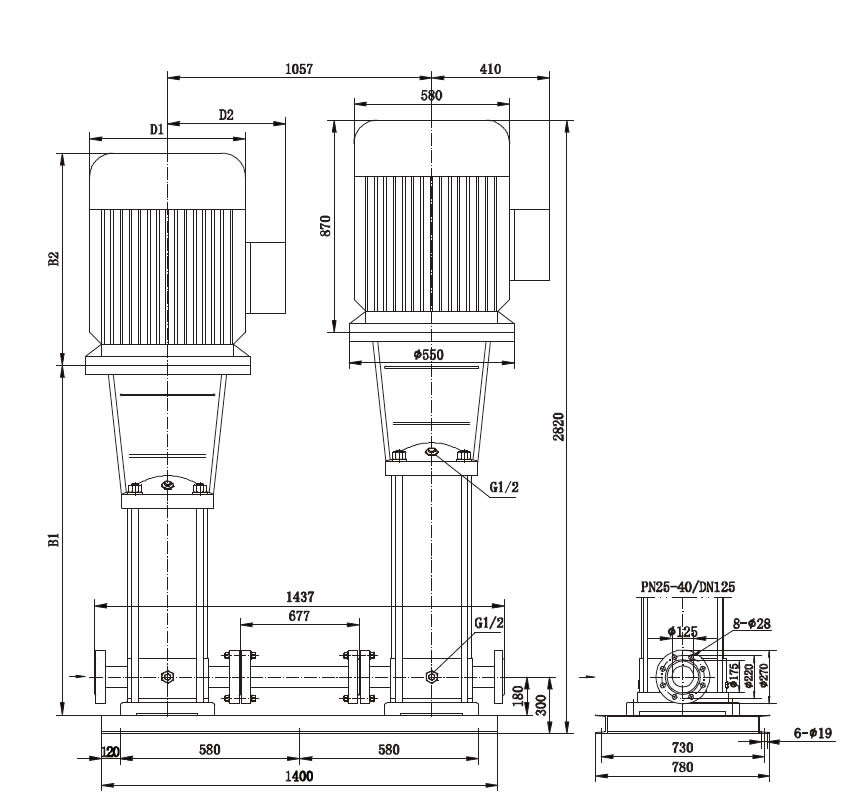

4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size（mm) | Weight | ||||
| Bl | B2 | B1＋B2 | D1 | D2 | (kg) | |
| CR120-10+70 | 840 | 580 | 1420 | 350 | 260 | 1020 |
| CR120-20-2+70 | 1000 | 580 | 1580 | 350 | 260 | 1035 |
| CR120-20-1+70 | 1000 | 610 | 1610 | 350 | 260 | 1040 |
| CR120-20+70 | 1000 | 64 | 1064 | 360 | 280 | 1075 |
| CR120-30-2+70 | 1160 | 705 | 1865 | 400 | 310 | 1148 |
| CR120-30-1+70 | 1160 | 705 | 1865 | 400 | 310 | 1150 |
| CR120-30+70 | 1160 | 705 | 1865 | 400 | 310 | 1150 |
| CR120-40-2+70 | 1320 | 705 | 2025 | 400 | 310 | 1190 |
| CR120-40-1+70 | 1320 | 705 | 2025 | 400 | 310 | 1190 |
| CR120-40+70 | 1320 | 740 | 2060 | 460 | 340 | 1250 |
| CR120-50-2+70 | 1480 | 740 | 2220 | 460 | 340 | 1260 |
| CR120-50-1+70 | 1480 | 740 | 2220 | 460 | 340 | 1260 |
| CR120-50+70 | 1510 | 810 | 2320 | 550 | 370 | 1365 |
| CR120-60-2+70 | 1670 | 810 | 2480 | 550 | 370 | 1375 |
| CR120-60-1+70 | 1670 | 810 | 2480 | 550 | 370 | 1375 |
| CR120-60+70 | 1670 | 870 | 2540 | 580 | 410 | 1495 |
| CR120-70-2+70 | 1830 | 870 | 2700 | 580 | 410 | 1503 |
| CR120-70-1+70 | 1830 | 870 | 2700 | 580 | 410 | 1505 |
| CR120-70+70 | 1830 | 870 | 2700 | 580 | 410 | 1505 |
