Delivery of APP24 High Pressure Seawater Desalination Pump
By admin
0 Comments
CR15
Type: Vertical Multistage Pump in Series
Pump No.: 2 sets
Fluid: Fresh Water & Sea Water
Application: RO System/ High Pressure Water Supply
Q(@50Hz, 2900r/min): 8 ~ 23 m³/h
Hmax(@50Hz, 2900r/min): 454 m
Description

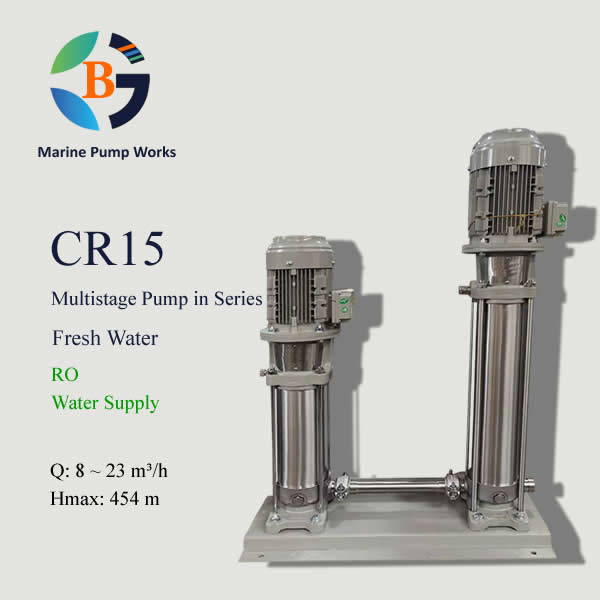

CR15 vertical multistage pump in series is 2 sets multistage centrifugal pump with rated capacity 15 m³/h to achieve max. high pressure 454m. CR vertical multistage pumps in series is specially designed for Reverse Osmosis system and high pressure water supply system.
1. Model Key
CR15-140+170
- CR – Industrial pump code
- 15 – Pump rated capacity is 15 m³/h
- 140 – Number of impellers of Jockey Pump is 14
- 170 – Number of impellers of High Pressure Pump is 17
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Pump Head | QT500/SUS304、316、2205 |
| 3 | Seal Cover | QT500/SUS304、316、2205 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Top Diffuser | SUS304、316、2205 |
| 6 | Diffuser | SUS304、316、2205 |
| 7 | Support Diffuser | SUS304、316、2205 |
| 8 | Coupling | QT500 |
| 9 | Impeller | SUS304、316、2205 |
| 10 | Cylinder | SUS304、316、2205 |
| 11 | Shaft | SUS304、316、2205 |
| 12 | Bearing | TC |
| 13 | Inducer | SUS304、316、2205 |
| 14 | Pump Base | QT500/SUS304、316、2205 |
| 15 | Base Plate | QT500 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 8 | 10 | 12 | 14 | 15 | 16 | 18 | 20 | 23 |
| CR15-10+170 | 1.1+15 | H (m) | 240 | 236 | 229 | 221 | 213 | 205 | 193 | 173 | 145 |
| CR15-20+170 | 2.2+15 | 253 | 249 | 241 | 233 | 225 | 217 | 203 | 183 | 153 | |
| CR15-30+170 | 3.0+15 | 267 | 263 | 255 | 246 | 238 | 230 | 216 | 194 | 161 | |
| CR15-40+170 | 4.0+15 | 280 | 276 | 267 | 258 | 249 | 241 | 226 | 204 | 169 | |
| CR15-50+170 | 4.0+15 | 294 | 289 | 280 | 270 | 261 | 252 | 237 | 213 | 177 | |
| CR15-60+170 | 5.5+15 | 308 | 302 | 293 | 283 | 274 | 264 | 249 | 224 | 187 | |
| CR15-70+170 | 5.5+15 | 321 | 316 | 307 | 296 | 287 | 277 | 261 | 236 | 197 | |
| CR15-80+170 | 7.5+15 | 335 | 330 | 320 | 309 | 299 | 289 | 272 | 245 | 205 | |
| CR15-90+170 | 7.5+15 | 347 | 342 | 332 | 320 | 310 | 301 | 282 | 255 | 212 | |
| CR15-100+170 | 11+15 | 361 | 356 | 345 | 333 | 323 | 313 | 294 | 266 | 223 | |
| CR15-120+170 | 11+15 | 388 | 382 | 371 | 358 | 347 | 335 | 315 | 286 | 239 | |
| CR15-140+170 | 11+15 | 413 | 407 | 395 | 382 | 370 | 358 | 337 | 306 | 256 | |
| CR15-170+170 | 15+15 | 454 | 448 | 434 | 420 | 406 | 392 | 370 | 334 | 280 |

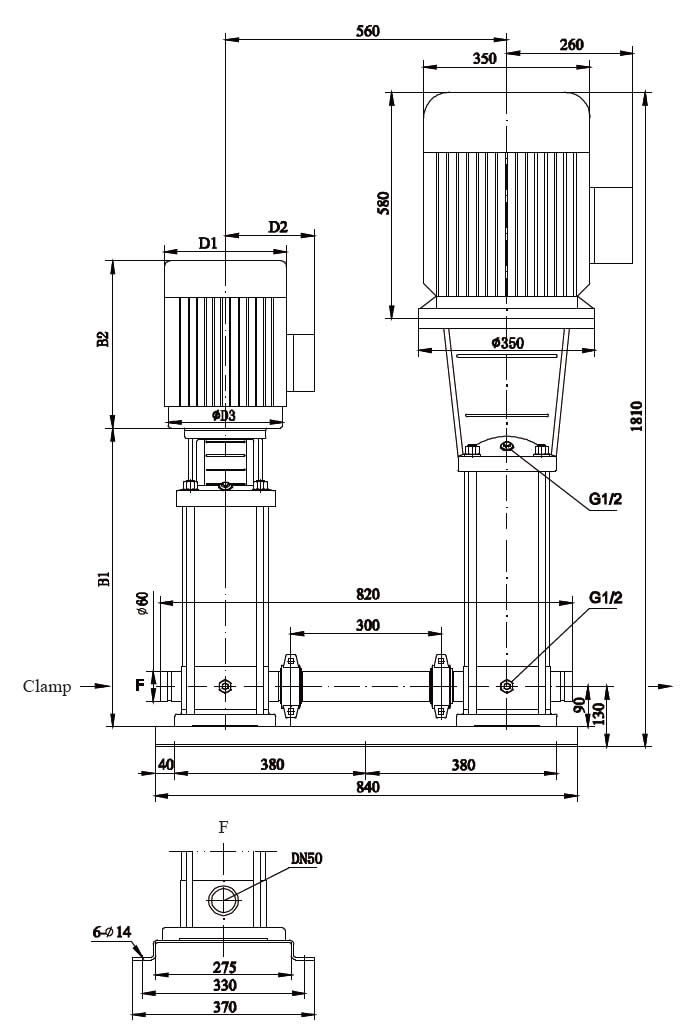

4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size（mm) | Weight | ||||
| Bl | B2 | B1＋B2 | D1 | D2 | (kg) | |
| CR15-10+170 | 352 | 280 | 632 | 170 | 142 | 229 |
| CR15-20+170 | 397 | 333 | 730 | 190 | 155 | 238 |
| CR15-30+170 | 452 | 348 | 800 | 197 | 165 | 246 |
| CR15-40+170 | 497 | 382 | 879 | 230 | 185 | 255 |
| CR15-50+170 | 542 | 382 | 924 | 230 | 185 | 256 |
| CR15-60+170 | 607 | 435 | 1042 | 260 | 210 | 273 |
| CR15-70+170 | 652 | 435 | 1087 | 260 | 210 | 274 |
| CR15-80+170 | 697 | 435 | 1132 | 260 | 210 | 282 |
| CR15-90+170 | 742 | 435 | 1177 | 260 | 210 | 283 |
| CR15-100+170 | 875 | 580 | 1455 | 350 | 260 | 356 |
| CR15-120+170 | 965 | 580 | 1545 | 350 | 260 | 357 |
| CR15-140+170 | 1055 | 580 | 1635 | 350 | 260 | 358 |
| CR15-170+170 | 1190 | 580 | 1770 | 350 | 260 | 375 |
