Delivery of APP24 High Pressure Seawater Desalination Pump
By admin
0 Comments

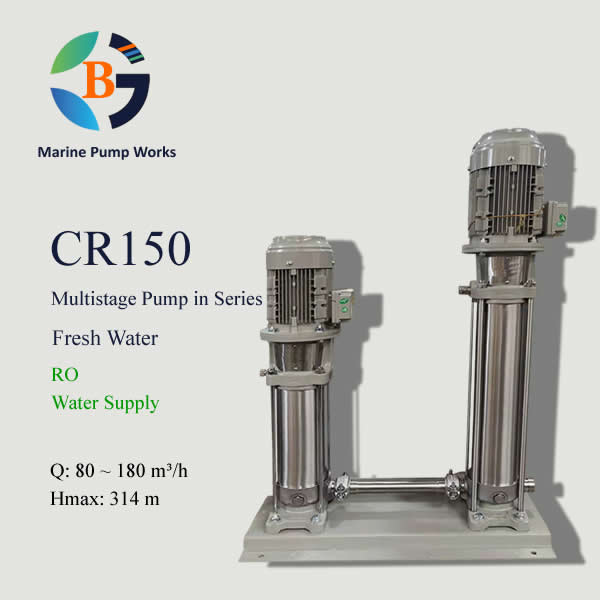

CR150
Type: Vertical Multistage Pump in Series
Pump No.: 2 sets
Fluid: Fresh Water & Sea Water
Application: RO System/ High Pressure Water Supply
Q(@50Hz, 2900r/min): 80 ~ 180 m³/h
Hmax(@50Hz, 2900r/min): 314 m
Description
CR150 vertical multistage pump in series is 2 sets multistage centrifugal pump with rated capacity 150 m³/h to achieve max. high pressure 314m. CR vertical multistage pumps in series is specially designed for Reverse Osmosis system and high pressure water supply system.
1. Model Key
CR150-60-1+60
- CR – Industrial pump code
- 150 – Pump rated capacity is 150 m³/h
- 60 – Number of impellers of Jockey Pump is 6
- 1 – Number of reduced-diameter impellers is 1
- 60 – Number of impellers of High Pressure Pump is 6

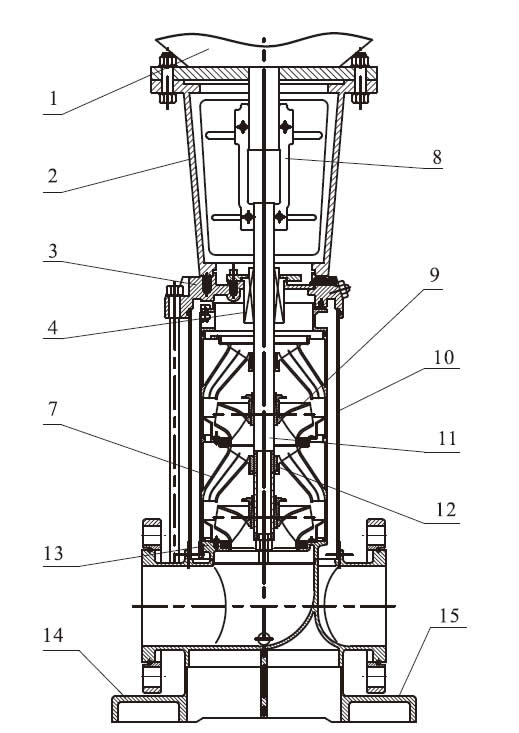

2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Pump Head | QT500/SUS304、316、2205 |
| 3 | Seal Cover | QT500/SUS304、316、2205 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Top Diffuser | SUS304、316、2205 |
| 6 | Diffuser | SUS304、316、2205 |
| 7 | Support Diffuser | SUS304、316、2205 |
| 8 | Coupling | QT500 |
| 9 | Impeller | SUS304、316、2205 |
| 10 | Cylinder | SUS304、316、2205 |
| 11 | Shaft | SUS304、316、2205 |
| 12 | Bearing | TC |
| 13 | Inducer | SUS304、316、2205 |
| 14 | Pump Base | QT500/SUS304、316、2205 |
| 15 | Base Plate | QT500 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 80 | 100 | 120 | 140 | 150 | 160 | 170 | 180 |
| CR150-10-1+60 | 11+75 | H (m) | 175.3 | 166.3 | 158 | 149 | 142.5 | 134.5 | 126 | 117.5 |
| CR150-10+60 | 15+75 | 181 | 171.5 | 163.5 | 155 | 148.5 | 14-0.5 | 132 | 124 | |
| CR150-20-2+60 | 18.5+75 | 194 | 183 | 174 | 164 | 157.5 | 149.5 | 139 | 130 | |
| CR150-20-1+60 | 22+75 | 201.3 | 191 | 181 | 172.5 | 165 | 156.5 | 146 | 136 | |
| CR150-20+60 | 30+75 | 207 | 197 | 187.5 | 177 | 170 | 160.5 | 150 | 141 | |
| CR150-30-2+60 | 30+75 | 220.5 | 208 | 198 | 188 | 179 | 169 | 158 | 148 | |
| CR150-30-1+60 | 37+75 | 227 | 216 | 205 | 195 | 186 | 176.5 | 165 | 154 | |
| CR150-30+60 | 37+75 | 235 | 224 | 212.5 | 201 | 193 | 182.5 | 171 | 159.5 | |
| CR150-40-2+60 | 45+75 | 246 | 233 | 221 | 209.5 | 200.5 | 189 | 176 | 165 | |
| CR150-40-1+60 | 45+76 | 253.5 | 240.5 | 228.5 | 216.5 | 207 | 196 | 183 | 171 | |
| CR150-40+60 | 55+75 | 261 | 249 | 237 | 223 | 214 | 203 | 190 | 177 | |
| CR150-50-2+60 | 55+75 | 272.5 | 258 | 244.5 | 232 | 222 | 209.5 | 195 | 182.5 | |
| CR150-50-1+60 | 75+75 | 279.5 | 266 | 253.5 | 239.5 | 229 | 217 | 203 | 189 | |
| CR150-50+60 | 75+75 | 287 | 274 | 261 | 246.5 | 236.5 | 224.5 | 210.5 | 195.5 | |
| CR150-60-2+60 | 75+75 | 297 | 282 | 268 | 253 | 242 | 229.5 | 214 | 200 | |
| CR150-60-1+60 | 75+75 | 305.5 | 290.7 | 277 | 262 | 250.5 | 238 | 222.5 | 206.5 | |
| CR150-60+60 | 75+75 | 314 | 298 | 284 | 270 | 260 | 247 | 232 | 218 |

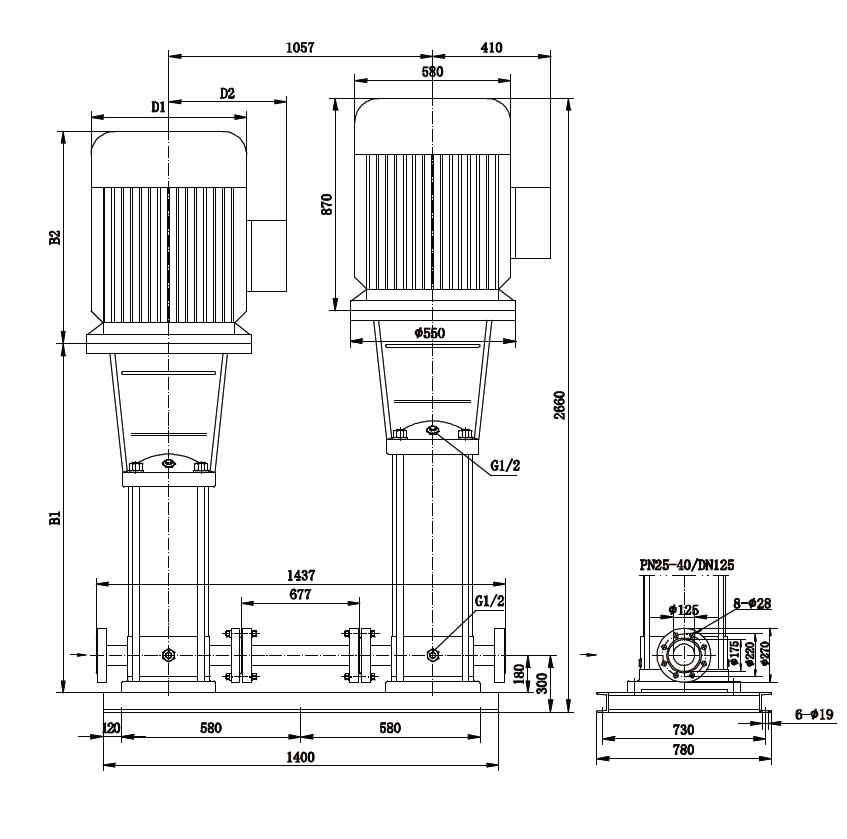

4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size（mm) | Weight | ||||
| Bl | B2 | B1＋B2 | D1 | D2 | (kg) | |
| CR150-10-1+60 | 840 | 580 | 1420 | 350 | 260 | 1013 |
| CR150-10+60 | 840 | 580 | 1420 | 350 | 260 | 1013 |
| CR150-20-2+60 | 1000 | 610 | 1610 | 350 | 260 | 1028 |
| CR150-20-1+60 | 1000 | 645 | 1645 | 360 | 285 | 1073 |
| CR150-20+60 | 1000 | 705 | 1705 | 400 | 310 | 1128 |
| CR150-30-2+60 | 1160 | 705 | 1865 | 400 | 310 | 1138 |
| CR150-30-1+60 | 1160 | 705 | 1865 | 400 | 310 | 1163 |
| CR150-30+60 | 1160 | 705 | 1865 | 400 | 310 | 1163 |
| CR150-40-2+60 | 1320 | 740 | 2060 | 460 | 340 | 1238 |
| CR150-40-1+60 | 1320 | 740 | 2060 | 460 | 340 | 1238 |
| CR150-40+60 | 1350 | 810 | 2160 | 550 | 370 | 1338 |
| CR150-50-2+60 | 1510 | 810 | 2320 | 550 | 370 | 1348 |
| CR150-50-1+60 | 1510 | 870 | 2380 | 580 | 410 | 1468 |
| CR150-50+60 | 1510 | 870 | 2380 | 580 | 410 | 1468 |
| CR150-60-2+60 | 1670 | 870 | 2540 | 580 | 410 | 1478 |
| CR150-60-1+60 | 1670 | 870 | 2540 | 580 | 410 | 1481 |
| CR150-60+60 | 1670 | 870 | 2540 | 580 | 410 | 1481 |
