Delivery of APP24 High Pressure Seawater Desalination Pump
By admin
0 Comments

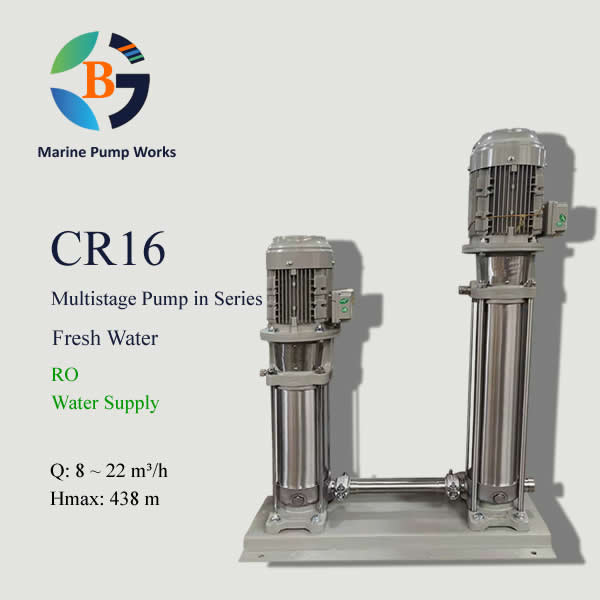

CR16
Type: Vertical Multistage Pump in Series
Pump No.: 2 sets
Fluid: Fresh Water & Sea Water
Application: RO System/ High Pressure Water Supply
Q(@50Hz, 2900r/min): 8 ~ 22 m³/h
Hmax(@50Hz, 2900r/min): 438 m
Description
CR16 vertical multistage pump in series is 2 sets multistage centrifugal pump with rated capacity 16 m³/h to achieve max. high pressure 438m. CR vertical multistage pumps in series is specially designed for Reverse Osmosis system and high pressure water supply system.
1. Model Key
CR16-140+160
- CR – Industrial pump code
- 16 – Pump rated capacity is 16 m³/h
- 140 – Number of impellers of Jockey Pump is 14
- 160 – Number of impellers of High Pressure Pump is 16
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Pump Head | QT500/SUS304、316、2205 |
| 3 | Seal Cover | QT500/SUS304、316、2205 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Top Diffuser | SUS304、316、2205 |
| 6 | Diffuser | SUS304、316、2205 |
| 7 | Support Diffuser | SUS304、316、2205 |
| 8 | Coupling | QT500 |
| 9 | Impeller | SUS304、316、2205 |
| 10 | Cylinder | SUS304、316、2205 |
| 11 | Shaft | SUS304、316、2205 |
| 12 | Bearing | TC |
| 13 | Inducer | SUS304、316、2205 |
| 14 | Pump Base | QT500/SUS304、316、2205 |
| 15 | Base Plate | QT500 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 |
| CR16-20+160 | 2.2+15 | H (m) | 243 | 237 | 230 | 220 | 206 | 190 | 172 | 151 |
| CR16-30+160 | 3.0+15 | 257 | 251 | 243 | 233 | 218 | 201 | 182 | 160 | |
| CR16-40+160 | 4.0+15 | 270 | 264 | 257 | 245 | 230 | 212 | 191 | 169 | |
| CR16-50+160 | 5.5+15 | 284 | 278 | 270 | 258 | 242 | 223 | 201 | 178 | |
| CR16-60+160 | 5.5+15 | 298 | 291 | 283 | 270 | 254 | 233 | 211 | 187 | |
| CR16-70+160 | 7.5+15 | 312 | 306 | 296 | 283 | 266 | 245 | 221 | 196 | |
| CR16-80+160 | 7.5+15 | 326 | 319 | 309 | 295 | 278 | 255 | 230 | 205 | |
| CR16-100+160 | 11+15 | 354 | 347 | 336 | 321 | 302 | 278 | 250 | 222 | |
| CR16-120+160 | 11+15 | 382 | 373 | 362 | 346 | 325 | 299 | 269 | 240 | |
| CR16-140+160 | 15+15 | 410 | 401 | 389 | 371 | 350 | 321 | 289 | 257 | |
| CR16-160+160 | 15+15 | 438 | 428 | 415 | 396 | 373 | 343 | 309 | 275 |

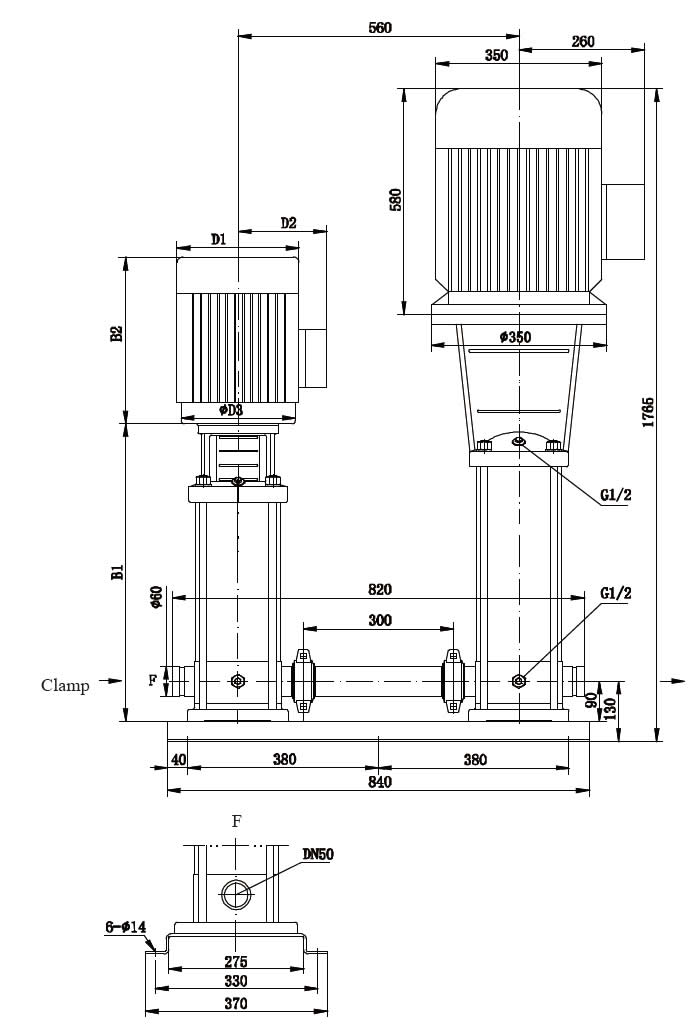

4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size（mm) | Weight | ||||
| Bl | B2 | B1＋B2 | D1 | D2 | (kg) | |
| CR16-20+160 | 397 | 333 | 730 | 190 | 155 | 237 |
| CR16-30+160 | 452 | 348 | 800 | 197 | 165 | 245 |
| CR16-40+160 | 497 | 382 | 879 | 230 | 188 | 254 |
| CR16-50+160 | 562 | 435 | 997 | 260 | 208 | 271 |
| CR16-60+160 | 607 | 435 | 1042 | 260 | 208 | 272 |
| CR16-70+160 | 652 | 435 | 1087 | 260 | 208 | 279 |
| CR16-80+160 | 697 | 435 | 1132 | 260 | 208 | 281 |
| CR16-100+160 | 875 | 580 | 1455 | 350 | 260 | 353 |
| CR16-120+160 | 965 | 580 | 1545 | 350 | 260 | 356 |
| CR16-140+160 | 1055 | 580 | 1635 | 350 | 260 | 369 |
| CR16-160+160 | 1145 | 580 | 1725 | 350 | 260 | 373 |
