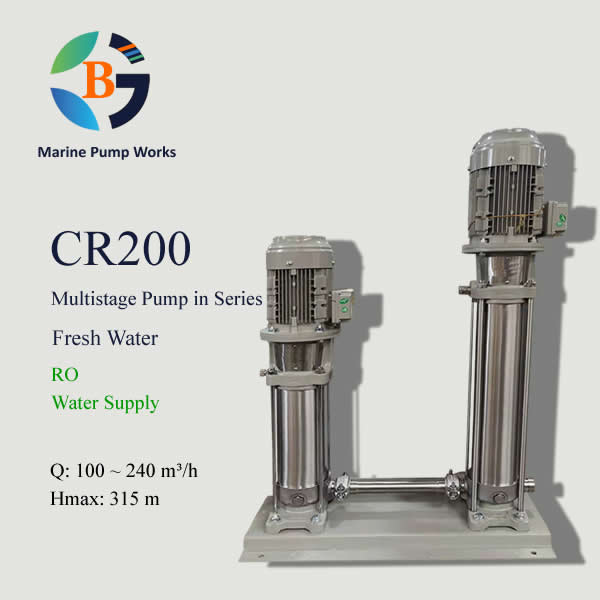

C200
Type: Vertical Multistage Pump in Series
Pump No.: 2 sets
Fluid: Fresh Water & Sea Water
Application: RO System/ High Pressure Water Supply
Q(@50Hz, 2900r/min): 100 ~ 240 m³/h
Hmax(@50Hz, 2900r/min): 314 m
Description
CR200 vertical multistage pump in series is 2 sets multistage centrifugal pump with rated capacity 200 m³/h to achieve max. high pressure 315m. CR vertical multistage pumps in series is specially designed for Reverse Osmosis system and high pressure water supply system.
1. Model Key
CR200-30-B+40
- CR – Industrial pump code
- 200 – Pump rated capacity is 200 m³/h
- 30 – Number of impellers of Jockey Pump is 3
- B – Number of reduced-diameter impellers B is 1
- 40 – Number of impellers of High Pressure Pump is 4
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Pump Head | QT500/SUS304、316、2205 |
| 3 | Seal Cover | QT500/SUS304、316、2205 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Top Diffuser | SUS304、316、2205 |
| 6 | Diffuser | SUS304、316、2205 |
| 7 | Support Diffuser | SUS304、316、2205 |
| 8 | Coupling | QT500 |
| 9 | Impeller | SUS304、316、2205 |
| 10 | Cylinder | SUS304、316、2205 |
| 11 | Shaft | SUS304、316、2205 |
| 12 | Bearing | TC |
| 13 | Inducer | SUS304、316、2205 |
| 14 | Pump Base | QT500/SUS304、316、2205 |
| 15 | Base Plate | QT500 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 100 | 120 | 140 | 160 | 180 | 200 | 220 | 240 |
| CR200-10-B+40 | 18.5+110 | H (m) | 183 | 180.5 | 176.5 | 171 | 165 | 158 | 150.5 | 139 |
| CR200-10-A+40 | 22+110 | 186.5 | 183.5 | 180 | 174 | 169 | 162 | 154.5 | 143.5 | |
| CR200-10+40 | 30+110 | 196 | 193.5 | 190 | 184.5 | 178.5 | 172 | 165 | 153.5 | |
| CR200-20-2B+40 | 37+110 | 210.5 | 206.5 | 201.5 | 195 | 187.5 | 179 | 169.5 | l王5.5 | |
| CR200-20-2A+40 | 45+110 | 217 | 213.5 | 208.5 | 202 | 196 | 187 | 177 | 164 | |
| CR200-20-A+40 | 55+110 | 226.5 | 223.5 | 218.5 | 212 | 205.5 | 197 | 188 | 174.5 | |
| CR200-20+40 | 55+110 | 236 | 233 | 228.5 | 222 | 215 | 207 | 198.5 | 185 | |
| CR200-30-2B+40 | 75+110 | 249 | 244.5 | 239 | 231.5 | 222.5 | 213 | 202.5 | 186.5 | |
| CR200-30-A-B+40 | 75+110 | 252.5 | 248.5 | 242.5 | 235 | 227 | 217 | 206 | 190.5 | |
| CR200-30-2A+40 | 75+110 | 257 | 253 | 247 | 239.5 | 232.5 | 222 | 211 | 195.5 | |
| CR200-30-B+40 | 75+110 | 262 | 258 | 252.5 | 245 | 236.5 | 227 | 217 | 201 | |
| CR200-30-A+40 | 75+110 | 265.5 | 261.5 | 256 | 248.5 | 241 | 231 | 220.5 | 205 | |
| CR200-30+40 | 90+110 | 275 | 271.5 | 266 | 258.5 | 250.5 | 241 | 231.5 | 215.5 | |
| CR200-40-2B+40 | 90+110 | 289 | 284.5 | 278 | 269 | 259 | 248 | 236 | 217.5 | |
| CR200-40-2A+40 | 110+110 | 296 | 291.5 | 284.5 | 276 | 267.5 | 256 | 243.5 | 226 | |
| CR200-40-A+40 | 110+110 | 305.S | 301 | 295 | 286 | 277.5 | 266 | 254.5 | 236.5 | |
| CR200-40+40 | 110+110 | 315 | 311 | 305 | 296 | 287 | 276 | 265 | 247 |
4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size（mm) | Weight | ||||
| Bl | B2 | B1＋B2 | D1 | D2 | (kg) | |
| CR200-10-B+40 | 907 | 610 | 1517 | 350 | 260 | 1598 |
| CR200-10-A+40 | 907 | 645 | 1552 | 360 | 285 | 1634 |
| CR200-10+40 | 907 | 705 | 1612 | 400 | 310 | 1690 |
| CR200-20-2B+40 | 1101 | 705 | 1806 | 400 | 310 | 1734 |
| CR200-20-2A+40 | 1101 | 740 | 1841 | 460 | 340 | 1791 |
| CR200-20-A+40 | 1131 | 810 | 1941 | 550 | 370 | 1882 |
| CR200-20+40 | 1131 | 810 | 1941 | 550 | 370 | 1882 |
| CR200-30-2B+40 | 1325 | 870 | 2195 | 580 | 410 | 2035 |
| CR200-30-A-B+40 | 1325 | 870 | 2195 | 580 | 410 | 2035 |
| CR200-30-2A+40 | 1325 | 870 | 2195 | 580 | 410 | 2035 |
| CR200-30-B+40 | 1325 | 870 | 2195 | 580 | 410 | 2035 |
| CR200-30-A+40 | 1325 | 870 | 2195 | 580 | 410 | 2035 |
| CR200-30+40 | 1325 | 920 | 2245 | 580 | 410 | 2103 |
| CR200-40-2B+40 | 1519 | 920 | 2439 | 580 | 410 | 2117 |
| CR200-40-2A+40 | 1519 | 1060 | 2579 | 660 | 550 | 2467 |
| CR200-40-A+40 | 1519 | 1060 | 2579 | 660 | 550 | 2467 |
| CR200-40+40 | 1519 | 1060 | 2579 | 660 | 550 | 2467 |
