Delivery of APP24 High Pressure Seawater Desalination Pump
By admin
0 Comments

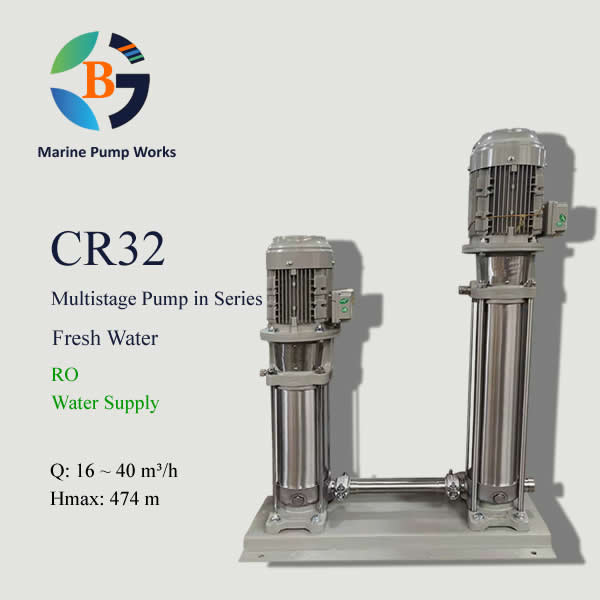

CR32
Type: Vertical Multistage Pump in Series
Pump No.: 2 sets
Fluid: Fresh Water & Sea Water
Application: RO System/ High Pressure Water Supply
Q(@50Hz, 2900r/min): 16 ~ 40 m³/h
Hmax(@50Hz, 2900r/min): 474 m
Description
CR32 vertical multistage pump in series is 2 sets multistage centrifugal pump with rated capacity 32 m³/h to achieve max. high pressure 474m. CR vertical multistage pumps in series is specially designed for Reverse Osmosis system and high pressure water supply system.
1. Model Key
CR32-90-2+160
- CR – Industrial pump code
- 32 – Pump rated capacity is 32 m³/h
- 90 – Number of impellers of Jockey Pump is 9
- 2 – Number of reduced-diameter impellers is 2
- 160 – Number of impellers of High Pressure Pump is 16
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Pump Head | QT500/SUS304、316、2205 |
| 3 | Seal Cover | QT500/SUS304、316、2205 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Top Diffuser | SUS304、316、2205 |
| 6 | Diffuser | SUS304、316、2205 |
| 7 | Support Diffuser | SUS304、316、2205 |
| 8 | Coupling | QT500 |
| 9 | Impeller | SUS304、316、2205 |
| 10 | Cylinder | SUS304、316、2205 |
| 11 | Shaft | SUS304、316、2205 |
| 12 | Bearing | TC |
| 13 | Inducer | SUS304、316、2205 |
| 14 | Pump Base | QT500/SUS304、316、2205 |
| 15 | Base Plate | QT500 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 16 | 20 | 24 | 28 | 32 | 36 | 40 |
| CR32-10-1+160 | 1.5+30 | H (m) | 306 | 290 | 274 | 257 | 234 | 204 | 167 |
| CR32-20+160 | 2.2+30 | 310 | 294 | 277 | 260 | 238 | 208 | 171 | |
| CR32-20-2+160 | 3+30 | 321 | 305 | 288 | 269 | 245 | 213 | 174 | |
| CR32-20+160 | 4+30 | 328 | 311 | 294 | 275 | 252 | 220 | 181 | |
| CR32-30-2+160 | 5.5+30 | 339 | 321 | 303 | 284 | 258 | 225 | 184 | |
| CR32-30+160 | 5.5+30 | 346 | 328 | 310 | 290 | 265 | 232 | 190 | |
| CR32-40-2+160 | 7.5+30 | 357 | 339 | 320 | 299 | 271 | 237 | 193 | |
| CR32-40+160 | 7.5+30 | 364 | 346 | 327 | 305 | 278 | 244 | 200 | |
| CR32-50-2+160 | 11+30 | 375 | 356 | 336 | 314 | 285 | 249 | 204 | |
| CR32-50+160 | 11+30 | 382 | 363 | 343 | 320 | 292 | 256 | 210 | |
| CR32-60-2+160 | 11+30 | 393 | 374 | 352 | 329 | 299 | 262 | 214 | |
| CR32-60+160 | 11+30 | 400 | 381 | 359 | 336 | 306 | 269 | 220 | |
| CR32-70-2+160 | 15+30 | 411 | 391 | 369 | 344 | 313 | 275 | 223 | |
| CR32-70+160 | 15+30 | 418 | 398 | 375 | 351 | 320 | 282 | 230 | |
| CR32-80-2+160 | 15+30 | 428 | 408 | 385 | 360 | 327 | 287 | 234 | |
| CR32-80+160 | 15+30 | 436 | 415 | 392 | 366 | 334 | 294 | 240 | |
| CR32-90-2+160 | 18.5+30 | 446 | 425 | 402 | 375 | 342 | 299 | 245 | |
| CR32-90+160 | 18.5+30 | 454 | 433 | 409 | 382 | 349 | 306 | 251 | |
| CR32-100-2+160 | 18.5+30 | 467 | 443 | 419 | 392 | 356 | 312 | 254 | |
| CR32-100+160 | 18.5+30 | 474 | 450 | 426 | 398 | 363 | 319 | 261 |
4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size（mm) | Weight | ||||
| Bl | B2 | B1＋B2 | D1 | D2 | (kg) | |
| CR32-10-1+160 | 505 | 333 | 838 | 190 | 155 | 464 |
| CR32-20+160 | 505 | 333 | 838 | 1” | 155 | 464 |
| CR32-20-2+160 | 575 | 370 | 945 | 230 | 185 | 480 |
| CR32-20+160 | 575 | 370 | 945 | 230 | 185 | 480 |
| CR32-30-2+160 | 645 | 435 | 1080 | 260 | 208 | 497 |
| CR32-30+160 | 645 | 435 | 1080 | 260 | 208 | 497 |
| CR32-40-2+160 | 715 | 435 | 1150 | 260 | 208 | 506 |
| CR32-40+160 | 715 | 435 | 1150 | 260 | 208 | 506 |
| CR32-50-2+160 | 890 | 580 | 1470 | 350 | 260 | 578 |
| CR32-50+160 | 890 | 580 | 1470 | 350 | 260 | 578 |
| CR32-60-2+160 | 960 | 580 | 1540 | 350 | 260 | 582 |
| CR32-60+160 | 960 | 580 | 1540 | 350 | 260 | 582 |
| CR32-70-2+160 | 1030 | 580 | 1610 | 350 | 260 | 596 |
| CR32-70+160 | 1030 | 580 | 1610 | 350 | 260 | 596 |
| CR32-80-2+160 | 1100 | 580 | 1680 | 350 | 260 | 600 |
| CR32-80+160 | 1100 | 580 | 1680 | 350 | 260 | 600 |
| CR32-90-2+160 | 1170 | 610 | 1780 | 350 | 260 | 619 |
| CR32-90+160 | 1170 | 610 | 1780 | 350 | 260 | 619 |
| CR32-100-2+160 | 1240 | 610 | 1850 | 350 | 260 | 624 |
| CR32-100+160 | 1240 | 610 | 1850 | 350 | 260 | 624 |
