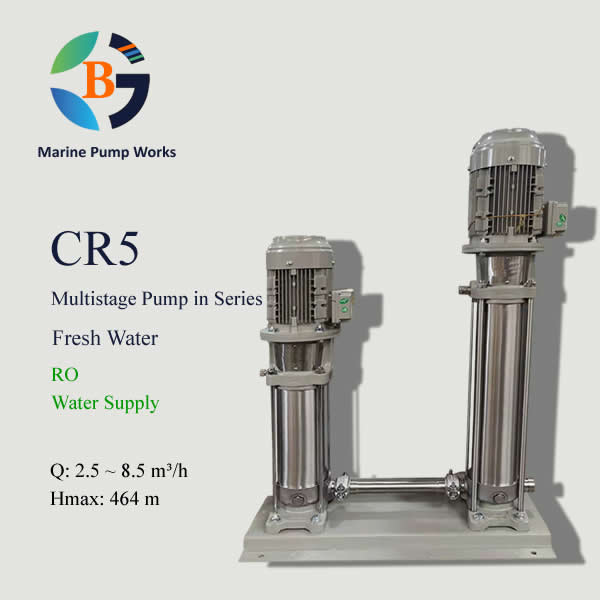

CR5
Type: Vertical Multistage Pump in Series
Pump No.: 2 sets
Fluid: Fresh Water & Sea Water
Application: RO System/ High Pressure Water Supply
Q(@50Hz, 2900r/min): 2.5 ~ 8.5 m³/h
Hmax(@50Hz, 2900r/min): 464 m
Description
CR5 vertical multistage pump in series is 2 sets multistage centrifugal pump with rated capacity 5 m³/h to achieve max. high pressure 464m. CR vertical multistage pumps in series is specially designed for Reverse Osmosis system and high pressure water supply system.
1. Model Key
CR5-260+360
- CR – Industrial pump code
- 5 – Pump rated capacity is 5 m³/h
- 260 – Number of impellers of Jockey Pump is 26
- 360 – Number of impellers of High Pressure Pump is 36
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Pump Head | QT500/SUS304、316、2205 |
| 3 | Seal Cover | QT500/SUS304、316、2205 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Top Diffuser | SUS304、316、2205 |
| 6 | Diffuser | SUS304、316、2205 |
| 7 | Support Diffuser | SUS304、316、2205 |
| 8 | Coupling | QT500 |
| 9 | Impeller | SUS304、316、2205 |
| 10 | Cylinder | SUS304、316、2205 |
| 11 | Shaft | SUS304、316、2205 |
| 12 | Bearing | TC |
| 13 | Inducer | SUS304、316、2205 |
| 14 | Pump Base | QT500/SUS304、316、2205 |
| 15 | Base Plate | QT500 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 2.5 | 4 | 5 | 6 | 7 | 8.5 |
| CR5-20+360 | 0.37+5.5 | H (m) | 244.5 | 227.5 | 211.5 | 190 | 165 | 117.5 |
| CR5-30+360 | 0.55+5.5 | 251.5 | 233.5 | 216.5 | 194.5 | 169 | 120 | |
| CR5-40+360 | 0.55+5.5 | 258 | 239.5 | 222 | 199.5 | 173 | 122.5 | |
| CR5-50+360 | 0.75+5.S | 264.5 | 245.5 | 227.S | 204 | 176.S | 125 | |
| CR5-60+360 | 1.1+5.5 | 270.5 | 250.5 | 232.5 | 209 | 181 | 128 | |
| CR5-80+360 | 1.1+5.5 | 282.5 | 262 | 243.5 | 219 | 189.5 | 134 | |
| CR5-100+360 | 1.5+5.5 | 295.5 | 274.5 | 255 | 229 | 199 | 141.5 | |
| CR5-120+360 | 2.2+5.5 | 308 | 287 | 266.5 | 239.5 | 208.5 | 149 | |
| CR5-140+360 | 2.2+5.5 | 321 | 298 | 277.5 | 249 | 216.5 | 154 | |
| CR5-160+360 | 2.2+5.5 | 333 | 310 | 288 | 258.5 | 224.S | 160 | |
| CR5-180+360 | 3.0+5.5 | 347 | 323 | 300 | 269.5 | 235 | 167 | |
| CR5-200+360 | 3.0+5.5 | 361 | 336 | 313 | 281 | 245 | 176 | |
| CR5-220+360 | 4.0+5.5 | 374 | 348 | 324 | 292 | 254 | 183 | |
| CR5-240+360 | 4.0+5.5 | 388 | 360 | 335 | 302 | 263 | 189.5 | |
| CR5-260+360 | 4.0+5.5 | 401 | 373 | 346 | 312 | 271 | 195 | |
| CR5-290+360 | 4.0+5.5 | 421 | 391 | 363 | 327 | 283 | 202 | |
| CR5-320+360 | 5.5+5.5 | 441 | 410 | 381 | 343 | 299 | 216 | |
| CR5-360+360 | 5.5+5.5 | 464 | 432 | 402 | 362 | 316 | 228 |

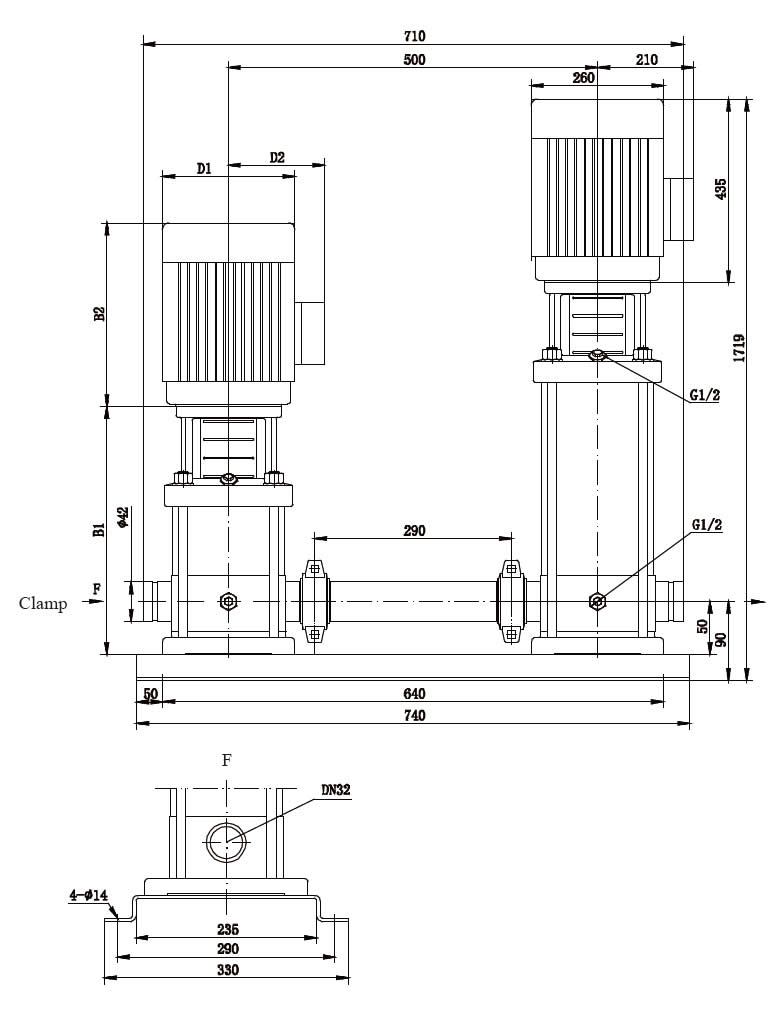

4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size（mm) | Weight | ||||
| Bl | B2 | B1＋B2 | D1 | D2 | (kg) | |
| CR5-20+360 | 276 | 239 | 515 | 148 | 117 | 111 |
| CR5-30+360 | 303 | 239 | 541 | 148 | 117 | 112 |
| CR5-40+360 | 330 | 239 | 569 | 141 | 117 | 113 |
| CR5-50+360 | 367 | 280 | 647 | 170 | 142 | 115 |
| CR5-60+360 | 394 | 280 | 674 | 170 | 142 | 116 |
| CR5-80+360 | 448 | 280 | 728 | 170 | 142 | 117 |
| CR5-100+360 | 512 | 333 | 845 | 190 | 155 | 123 |
| CR5-120+360 | 566 | 333 | 899 | 190 | 155 | 127 |
| CR5-140+360 | 620 | 333 | 953 | 190 | 155 | 128 |
| CR5-160+360 | 674 | 333 | 1007 | 190 | 165 | 129 |
| CR5-180+360 | 738 | 348 | 1086 | 197 | 165 | 138 |
| CR5-200+360 | 792 | 348 | 1140 | 197 | 165 | 139 |
| CR5-220+360 | 846 | 382 | 1228 | 230 | 185 | 147 |
| CR5-240+360 | 900 | 382 | 1282 | 230 | 185 | 148 |
| CR5-260+360 | 954 | 382 | 1336 | 230 | 185 | 149 |
| CR5-290+360 | 1035 | 382 | 1417 | 230 | 185 | 150 |
| CR5-320+360 | 1136 | 435 | 1571 | 260 | 210 | 165 |
| CR5-360+360 | 1244 | 435 | 1679 | 260 | 210 | 166 |
