Delivery of APP24 High Pressure Seawater Desalination Pump
By admin
0 Comments

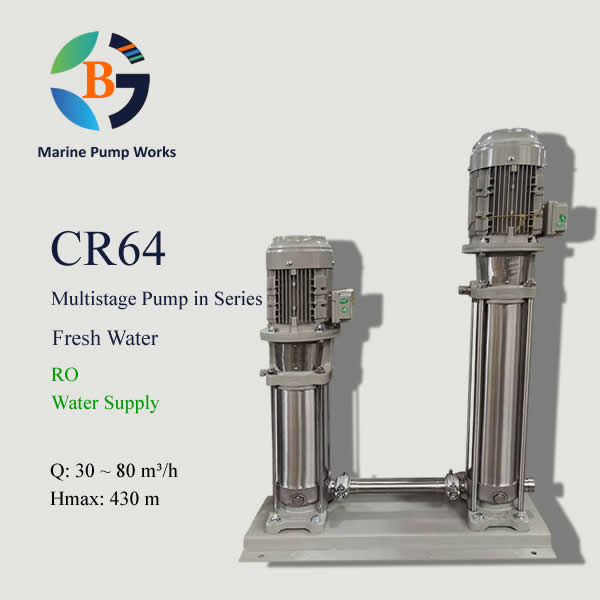

CR64
Type: Vertical Multistage Pump in Series
Pump No.: 2 sets
Fluid: Fresh Water & Sea Water
Application: RO System/ High Pressure Water Supply
Q(@50Hz, 2900r/min): 30 ~ 80 m³/h
Hmax(@50Hz, 2900r/min): 430 m
Description
CR64 vertical multistage pump in series is 2 sets multistage centrifugal pump with rated capacity 64 m³/h to achieve max. high pressure 430m. CR vertical multistage pumps in series is specially designed for Reverse Osmosis system and high pressure water supply system.
1. Model Key
CR64-60-1+80-1
- CR – Industrial pump code
- 64 – Pump rated capacity is 64 m³/h
- 60 – Number of impellers of Jockey Pump is 6
- 1 – Number of reduced-diameter impellers is 1
- 80 – Number of impellers of High Pressure Pump is 8
- 1 – Number of reduced-diameter impellers is 1
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Pump Head | QT500/SUS304、316、2205 |
| 3 | Seal Cover | QT500/SUS304、316、2205 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Top Diffuser | SUS304、316、2205 |
| 6 | Diffuser | SUS304、316、2205 |
| 7 | Support Diffuser | SUS304、316、2205 |
| 8 | Coupling | QT500 |
| 9 | Impeller | SUS304、316、2205 |
| 10 | Cylinder | SUS304、316、2205 |
| 11 | Shaft | SUS304、316、2205 |
| 12 | Bearing | TC |
| 13 | Inducer | SUS304、316、2205 |
| 14 | Pump Base | QT500/SUS304、316、2205 |
| 15 | Base Plate | QT500 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 30 | 40 | 50 | 60 | 64 | 70 | 80 |
| CR64-10-1+80-1 | 4+45 | H (m) | 234 | 221 | 205 | 185 | 176 | 160 | 131 |
| CR64-10+80-1 | 5.5+45 | 242 | 228 | 212 | 192 | 183 | 167 | 138 | |
| CR64-20-2+80-1 | 7.5+45 | 254 | 239 | 222 | 200 | 190 | 172 | 140 | |
| CR64-20-1+80-1 | 11+45 | 261 | 247 | 229 | 207 | 197 | 179 | 147 | |
| CR64-20+80-1 | 11+45 | 268 | 254 | 236 | 214 | 204 | 186 | 153 | |
| CR64-30-2+80-1 | 15+45 | 281 | 265 | 245 | 221 | 210 | 190 | 155 | |
| CR64-30-1+80-1 | 15+45 | 288 | 272 | 252 | 228 | 217 | 197 | 162 | |
| CR64-30+80-1 | 18.5+45 | 295 | 279 | 259 | 235 | 224 | 204 | 169 | |
| CR64-40-2+80-1 | 18.5+45 | 307 | 290 | 269 | 242 | 230 | 209 | 170 | |
| CR64-40-1+80-1 | 22+45 | 315 | 297 | 276 | 249 | 237 | 216 | 177 | |
| CR64-40+80-1 | 22+45 | 322 | 304 | 283 | 256 | 244 | 223 | 184 | |
| CR64-50-2+80-1 | 30+45 | 336 | 317 | 294 | 266 | 252 | 229 | 187 | |
| CR64-50-1+80-1 | 30+45 | 343 | 324 | 301 | 273 | 259 | 236 | 194 | |
| CR64-50+80-1 | 30+45 | 351 | 332 | 308 | 280 | 266 | 243 | 201 | |
| CR64-60-2+80-1 | 30+45 | 365 | 345 | 320 | 289 | 274 | 250 | 204 | |
| CR64-60-1+80-1 | 37+45 | 372 | 352 | 327 | 296 | 281 | 257 | 211 | |
| CR64-60+80-1 | 37+45 | 379 | 359 | 334 | 303 | 288 | 264 | 218 | |
| CR64-70-2+80-1 | 37+45 | 394 | 372 | 345 | 312 | 296 | 270 | 222 | |
| CR64-70-1+80-1 | 37+45 | 401 | 379 | 352 | 319 | 304 | 277 | 229 | |
| CR64-70+80-1 | 45+45 | 408 | 386 | 359 | 326 | 311 | 284 | 235 | |
| CR64-80-2+80-1 | 45+45 | 422 | 399 | 371 | 335 | 319 | 291 | 239 | |
| CR64-80-1+80-1 | 45+45 | 430 | 406 | 378 | 342 | 326 | 298 | 246 |

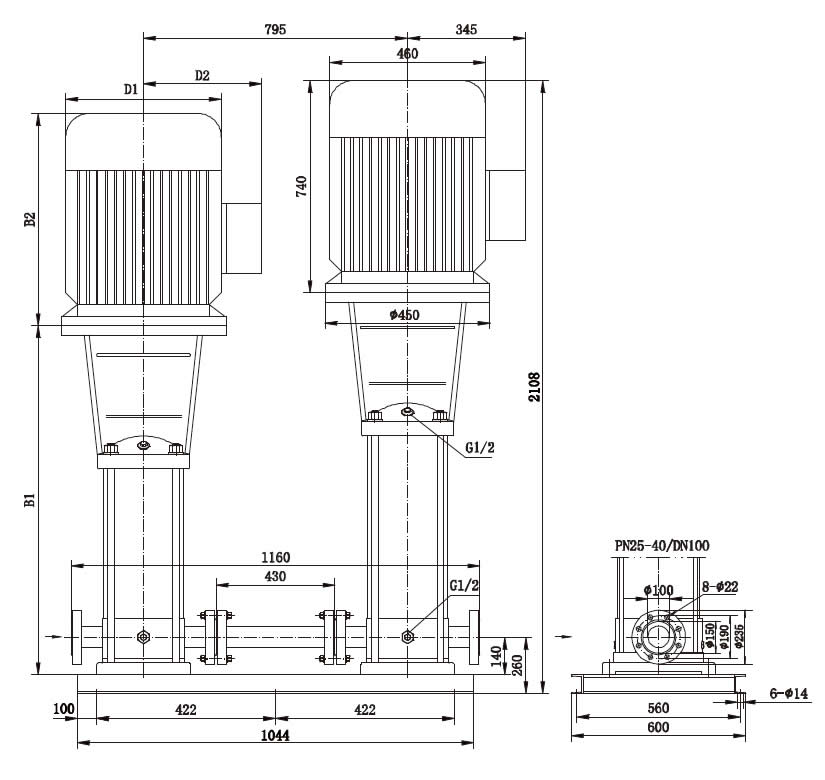

4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size（mm) | Weight | ||||
| Bl | B2 | B1＋B2 | D1 | D2 | (kg) | |
| CR64-10-1+80-1 | 561 | 370 | 931 | 230 | 188 | 574 |
| CR64-10+80-1 | 561 | 435 | 996 | 260 | 208 | 586 |
| CR64-20-2+80-1 | 754 | 435 | 1079 | 260 | 208 | 591 |
| CR64-20-1+80-1 | 754 | 580 | 1334 | 350 | 260 | 663 |
| CR64-20+80-1 | 754 | 580 | 1334 | 350 | 260 | 663 |
| CR64-30-2+80-1 | 836 | 580 | 1416 | 350 | 260 | 678 |
| CR64-30-1+80-1 | 836 | 580 | 1416 | 350 | 260 | 678 |
| CR64-30+80-1 | 836 | 610 | 1446 | 350 | 260 | 702 |
| CR64-40-2+80-1 | 919 | 610 | 1529 | 360 | 260 | 706 |
| CR64-40-1+80-1 | 919 | 645 | 1564 | 360 | 285 | 739 |
| CR64-40+80-1 | 919 | 645 | 1564 | 360 | 285 | 739 |
| CR64-50-2+80-1 | 1001 | 705 | 1706 | 400 | 310 | 798 |
| CR64-50-1+80-1 | 1001 | 705 | 1706 | 400 | 310 | 802 |
| CR64-50+80-1 | 1001 | 705 | 1706 | 400 | 310 | 802 |
| CR64-60-2+80-1 | 1084 | 705 | 1789 | 400 | 310 | 806 |
| CR64-60-1+80-1 | 1084 | 705 | 1789 | 400 | 310 | 830 |
| CR64-60+80-1 | 1084 | 705 | 1789 | 400 | 310 | 830 |
| CR64-70-2+80-1 | 1166 | 705 | 1871 | 400 | 310 | 834 |
| CR64-70-1+80-1 | 1166 | 705 | 1871 | 400 | 310 | 834 |
| CR64-70+80-1 | 1166 | 740 | 1906 | 460 | 340 | 901 |
| CR64-80-2+80-1 | 1248 | 740 | 1988 | 460 | 340 | 905 |
| CR64-80-1+80-1 | 1248 | 740 | 1988 | 460 | 340 | 905 |
