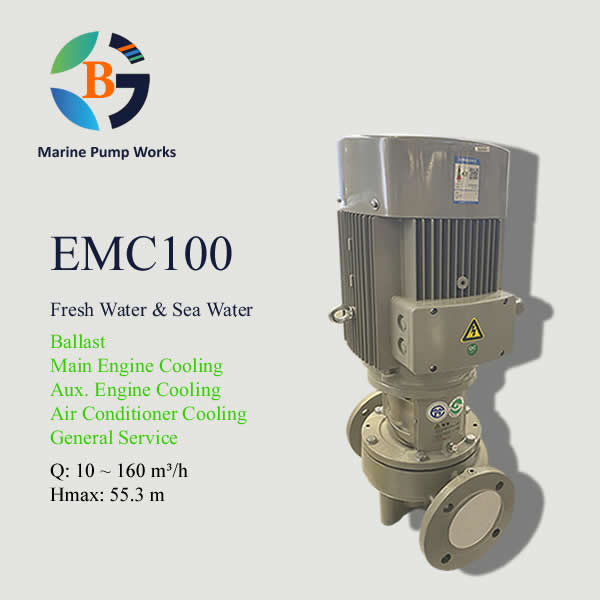

EMC100
Type: Vertical Centrifugal Pump
Stage: Single
Fluid: Fresh Water & Sea Water
Application: Ballast/ Cooling/ General Service/ Bilge
Q(@50Hz, 2900r/min): 10 ~ 160m³/h
Hmax(@50Hz, 2900r/min): 55.3 m
Q(@60Hz,3500r/min): 10 ~ 160 m³/h
Hmax(@60Hz,3500r/min): 63.3m
Certificate: CCS/BV/ABS/RINA
Description
EMC100 marine pump is a marine vertical centrifugal pump with inlet and outlet flange are DN100. with flow rate Q: 10~160m³/h @ 50Hz, 2900r/min and Q: 10~160m³/h @ 60Hz, 3500r/min. It can transfer fresh water and sea water, widely used for ballast, cooling, general service and bilge.
1. Model Key
EMC100-100-48
- EMC – Marine pump code
- 100 – Pump inlet and outlet flange are DN100
- 100 – Pump rated capacity is 100m³/h
- 48 – Pump rated head is 48m
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Casing | HT200/QT450/ZCuZn16Si4 |
| 2 | Impeller | ZCuZn16Si4/ZCuSn5Pb5Zn5 |
| 3 | Casing Cover | HT200/QT450/ZCuZn16Si4 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Coupling Guard | 1Cr18Ni9 |
| 6 | Pump Shaft | 1Cr18Ni9 |
| 7 | Air release bolt | 1Cr18Ni9/ZCuZn16Si4 |
| 8 | Seal O Ring | EPDM |
| 9 | Plug | 1Cr18Ni9/ZCuZn16Si4 |
| 10 | Coupling | QT450 |
| 11 | Seal Cover | 1Cr18Ni9 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor | Q | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 145 | 160 |
| (Kw) | (m³/h) | ||||||||||||||||
| EMC100-50-9 | 2.2 | H (m) | 13.9 | 13.2 | 12.2 | 10.8 | 9 | 6.8 | 4.4 | ||||||||
| EMC100-60-15 | 4 | 18.6 | 18.2 | 17.7 | 17.1 | 16.2 | 15 | 13.4 | 11 | ||||||||
| EMC100-80-17 | 5.5 | 21.7 | 21.5 | 21.1 | 20.7 | 20 | 19.2 | 18.3 | 17 | 15.3 | 13 | 10.4 | |||||
| EMC100-80-22 | 7.5 | 26.8 | 26.6 | 26.3 | 25.9 | 25.3 | 24.5 | 23.4 | 22 | 20.3 | 18.2 | 15.8 | |||||
| EMC100-100-27 | 11 | 31.5 | 31.3 | 31.1 | 30.9 | 30.7 | 30.3 | 29.8 | 29.2 | 28.2 | 27 | 25.5 | 23.6 | 20.8 | |||
| EMC100-100-33 | 15 | 37.1 | 37 | 36.8 | 36.6 | 36.2 | 35.8 | 35.3 | 34.7 | 33.9 | 33 | 31.7 | 30.1 | 27.9 | |||
| EMC100-100-40 | 18.5 | 43.3 | 43.2 | 43.1 | 42.9 | 42.7 | 42.4 | 42.1 | 41.6 | 40.9 | 40 | 38.9 | 37.4 | 35.3 | |||
| EMC100-100-48 | 22 | 51.2 | 51.1 | 51 | 50.8 | 50.6 | 50.3 | 49.9 | 49.4 | 48.8 | 48 | 46.9 | 45.3 | 43.2 | |||
| EMC100-130-52 | 30 | 55.3 | 55.3 | 55.3 | 55.3 | 55.2 | 55.1 | 54.8 | 54.6 | 54.4 | 54.2 | 53.8 | 53.1 | 52 | 49 | 43.5 |
@ 60Hz, 3500r/min
| Model | Motor | Q | 10 | 20 | 40 | 50 | 60 | 80 | 100 | 120 | 130 | 140 | 160 |
| (Kw) | (m³/h) | ||||||||||||
| EMC100-50-11 | 3 | H (m) | 17.2 | 17.1 | 14.6 | 11 | 9 | 6.3 | |||||
| EMC100-60-15 | 4 | 20.7 | 20.8 | 17.9 | 15 | 8 | |||||||
| EMC100-80-17 | 5.5 | 21.1 | 20.8 | 20 | 19.2 | 17 | 13 | ||||||
| EMC100-80-22 | 7.5 | 25.6 | 25.4 | 24.4 | 23.5 | 22 | 18.4 | ||||||
| EMC100-100-25 | 11 | 29.1 | 29.5 | 28.8 | 27.8 | 26.6 | 25 | 19.8 | 19.4 | ||||
| EMC100-100-32 | 15 | 36 | 36.6 | 35.6 | 34.6 | 33.5 | 32 | 28.9 | 25.5 | ||||
| EMC100-120-34 | 18.5 | 39.4 | 39.4 | 39.5 | 39 | 37.8 | 36.2 | 34 | 33.4 | 31 | |||
| EMC100-120-38 | 22 | 43.7 | 44.5 | 44.2 | 43.8 | 42.5 | 40.5 | 38 | 36.4 | 35 | 30.8 | ||
| EMC100-130-52 | 30 | 55 | 55.8 | 55.9 | 55.9 | 55.5 | 55 | 53.6 | 52 | 50.9 | 47.6 | ||
| EMC100-130-60 | 37 | 62 | 62.9 | 63.3 | 63.2 | 63 | 62 | 60.6 | 60 | 57.6 | 54 |

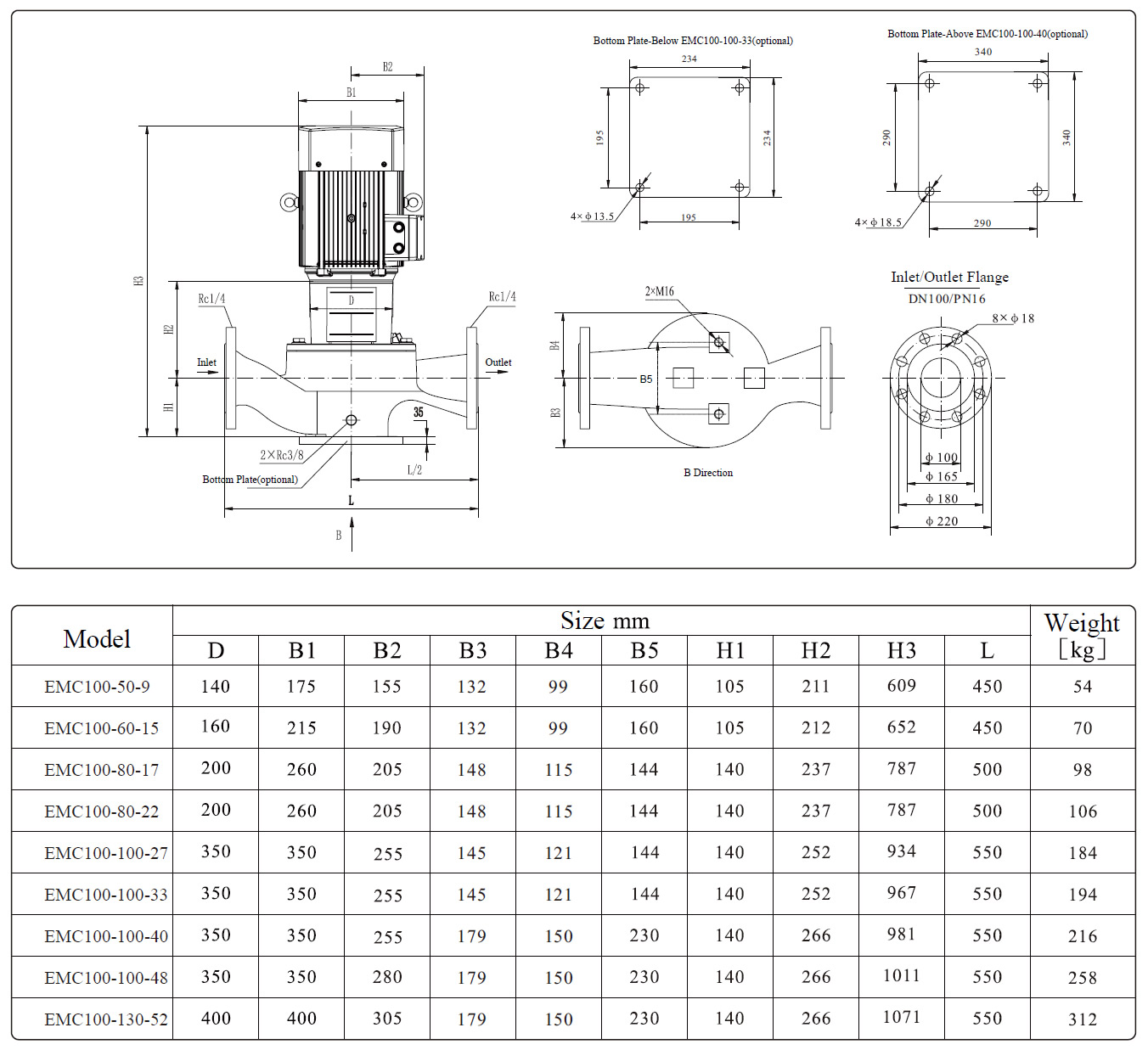

4. Dimensions and Weights:
@ 50Hz, 2900r/min
