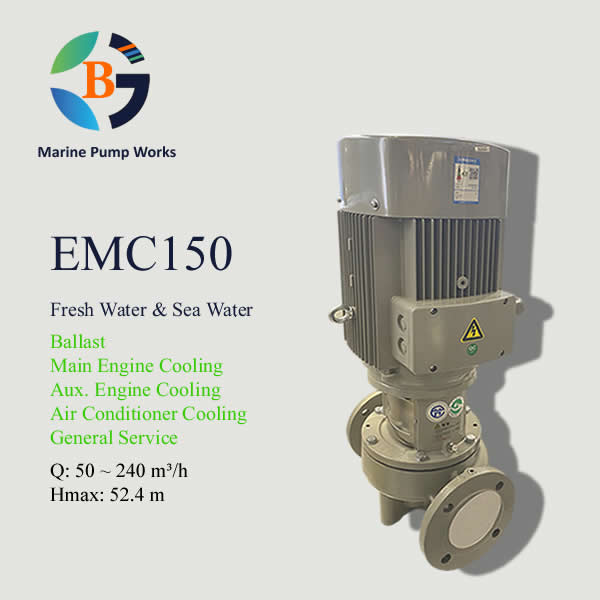

EMC150
Type: Vertical Centrifugal Pump
Stage: Single
Fluid: Fresh Water & Sea Water
Application: Ballast/ Cooling/ General Service/ Bilge
Q(@50Hz, 1450r/min): 50 ~ 240m³/h
Hmax(@50Hz, 1450r/min): 52.4 m
Q(@60Hz,1750r/min): 30 ~ 260 m³/h
Hmax(@60Hz,1750r/min): 47.4m
Certificate: CCS/BV/ABS/RINA
Description
EMC150 marine pump is a marine vertical centrifugal pump with inlet and outlet flange are DN150. with flow rate Q: 50~240m³/h @ 50Hz, 1450r/min and Q: 30~260m³/h @ 60Hz, 1750r/min. It can transfer fresh water and sea water, widely used for ballast, cooling, general service and bilge.
1. Model Key
EMC150-200-33
- EMC – Marine pump code
- 150 – Pump inlet and outlet flange are DN150
- 200 – Pump rated capacity is 200m³/h
- 33 – Pump rated head is 33m
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Casing | HT200/QT450/ZCuZn16Si4 |
| 2 | Impeller | ZCuZn16Si4/ZCuSn5Pb5Zn5 |
| 3 | Casing Cover | HT200/QT450/ZCuZn16Si4 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Coupling Guard | 1Cr18Ni9 |
| 6 | Pump Shaft | 1Cr18Ni9 |
| 7 | Air release bolt | 1Cr18Ni9/ZCuZn16Si4 |
| 8 | Seal O Ring | EPDM |
| 9 | Plug | 1Cr18Ni9/ZCuZn16Si4 |
| 10 | Coupling | QT450 |
| 11 | Seal Cover | 1Cr18Ni9 |
3. Technical Date:
@ 50Hz, 1450r/min
| Model | Motor | Q | 50 | 80 | 110 | 140 | 170 | 200 | 220 | 240 |
| (Kw) | (m³/h) | |||||||||
| EMC150-200-12.5 | 11 | H (m) | 14.6 | 14.5 | 14.4 | 14.2 | 13.7 | 12.5 | 11.1 | 9.2 |
| EMC150-200-17 | 15 | 18.8 | 18.8 | 18.7 | 18.5 | 18 | 17 | 16.1 | 15 | |
| EMC150-200-21 | 18.5 | 23.3 | 23.1 | 22.9 | 22.9 | 22 | 21 | 19.8 | 17.9 | |
| EMC150-200-25 | 22 | 28 | 28 | 27.8 | 27.8 | 26.5 | 25 | 23.5 | 21.3 | |
| EMC150-200-33 | 30 | 35.5 | 35.4 | 35.2 | 34.8 | 34.2 | 33 | 31.5 | 29.6 | |
| EMC150-200-40 | 37 | 43.1 | 43 | 42.8 | 42.4 | 41.6 | 40 | 38.4 | 36.2 | |
| EMC150-200-50 | 45 | 52.4 | 52.2 | 52 | 51.7 | 51.1 | 50 | 48.7 | 46.7 |
@ 60Hz, 1750r/min
| Model | Motor | Q | 30 | 60 | 90 | 120 | 140 | 160 | 180 | 200 | 220 | 240 | 260 |
| (Kw) | (m³/h) | ||||||||||||
| EMC150-160-15 | 11 | H (m) | 19.1 | 18.4 | 17.6 | 16.7 | 15.9 | 15 | 14.1 | 12.7 | 10.5 | ||
| EMC150-180-18 | 15 | 21.6 | 21.3 | 20.8 | 20.1 | 19.5 | 18.8 | 18 | 16.9 | 15.4 | 12.6 | ||
| EMC150-200-20 | 18.5 | 24 | 23.6 | 23.3 | 22.9 | 22.4 | 21.7 | 20.9 | 20 | 18.9 | 17.4 | 15.6 | |
| EMC150-200-24 | 22 | 27 | 27.2 | 27.1 | 26.8 | 26.3 | 25.8 | 24.9 | 24 | 22.8 | 21.5 | 19.9 | |
| EMC150-200-32 | 30 | 34.2 | 34.4 | 34.6 | 34.4 | 34 | 23.5 | 32.8 | 32 | 30.9 | 29.4 | 27.3 | |
| EMC150-200-36 | 37 | 39.7 | 39.3 | 38.8 | 38.2 | 37.8 | 37.3 | 36.7 | 36 | 34.9 | 33.6 | 31.9 | |
| EMC150-200-44 | 45 | 47.3 | 47.4 | 47.2 | 46.8 | 46.4 | 45.8 | 45 | 44 | 42.9 | 41.7 | 40.2 |

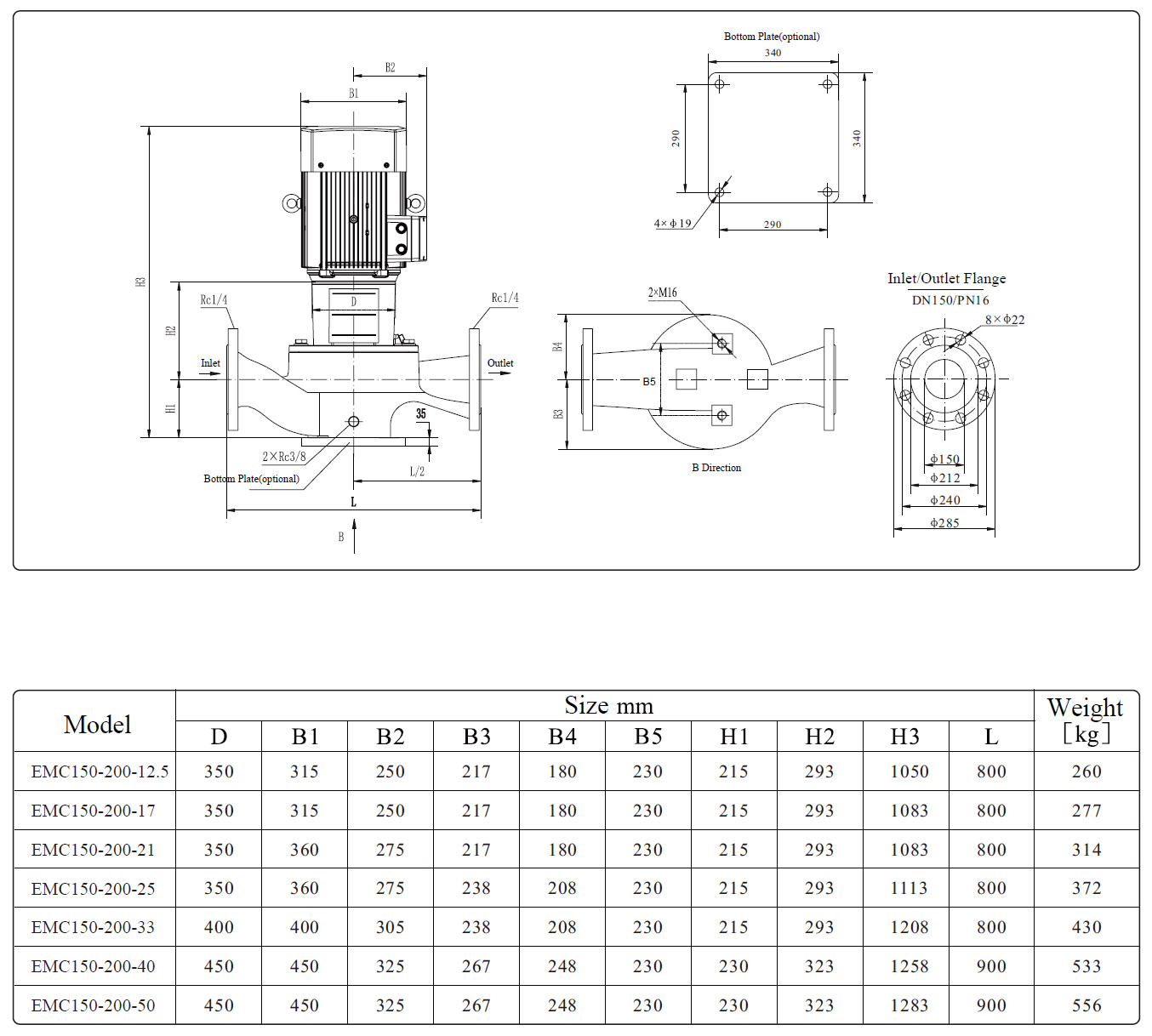

4. Dimensions and Weights:
@ 50Hz, 1450r/min
