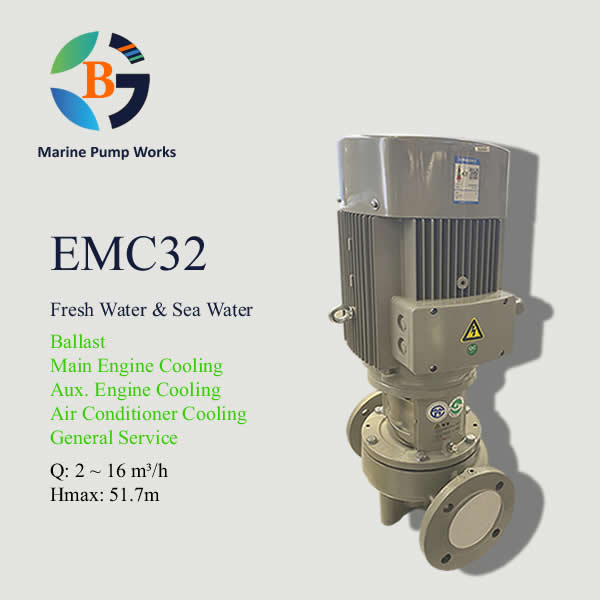

EMC32
Type: Vertical Centrifugal Pump
Stage: Single
Fluid: Fresh Water & Sea Water
Application: Ballast/ Cooling/ General Service/ Bilge
Q(@50Hz, 2900r/min): 2 ~ 16 m³/h
Hmax(@50Hz, 2900r/min): 51.7 m
Q(@60Hz,3500r/min): 4 ~ 25 m³/h
Hmax(@60Hz,3500r/min): 77 m
Certificate: CCS/BV/ABS/RINA
Description
EMC32 marine pump is a marine vertical centrifugal pump with inlet and outlet flange are DN32. with flow rate Q: 2~16 m³/h @ 50Hz, 2900r/min and Q: 4~25 m³/h @ 60Hz, 3500r/min. It can transfer fresh water and sea water, widely used for ballast, cooling, general service and bilge.
1. Model Key
EMC32-12.5-25
- EMC – Marine pump code
- 32 – Pump inlet and outlet flange are DN32
- 12.5 – Pump rated capacity is 12.5m³/h
- 25 – Pump rated head is 25m
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Casing | HT200/QT450/ZCuZn16Si4 |
| 2 | Impeller | ZCuZn16Si4/ZCuSn5Pb5Zn5 |
| 3 | Casing Cover | HT200/QT450/ZCuZn16Si4 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Coupling Guard | 1Cr18Ni9 |
| 6 | Pump Shaft | 1Cr18Ni9 |
| 7 | Air release bolt | 1Cr18Ni9/ZCuZn16Si4 |
| 8 | Seal O Ring | EPDM |
| 9 | Plug | 1Cr18Ni9/ZCuZn16Si4 |
| 10 | Coupling | QT450 |
| 11 | Seal Cover | 1Cr18Ni9 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor | Q | 2 | 4 | 6 | 8 | 10 | 12.5 | 14 | 16 |
| (Kw) | (m³/h) | |||||||||
| EMC32-8-18 | 1.1 | H (m) | 19.4 | 19.1 | 18.7 | 18 | 16.7 | 14.3 | ||
| EMC32-12.5-21 | 1.5 | 24.5 | 24.2 | 23.9 | 23.3 | 22.5 | 21 | 19.4 | 15.8 | |
| EMC32-12.5-25 | 2.2 | 28.3 | 28.2 | 28 | 27.5 | 26.7 | 25 | 23.6 | 20.6 | |
| EMC32-12.5-32 | 3 | 34.3 | 34.2 | 33.9 | 33.6 | 33.1 | 32 | 30.8 | 28.1 | |
| EMC32-12.5-38 | 4 | 39.8 | 39.8 | 39.7 | 39.4 | 39 | 38 | 37 | 35.1 | |
| EMC32-12.5-50 | 5.5 | 51.7 | 51.6 | 51.4 | 51.1 | 50.7 | 50 | 49.3 | 48 |
@ 60Hz, 3500r/min
| Model | Motor | Q | 4 | 7 | 8 | 10 | 12 | 15 | 20 | 25 |
| (Kw) | (m³/h) | |||||||||
| EMC32-7-24 | 1.5 | H (m) | 24.5 | 24 | 23 | 21 | ||||
| EMC32-10-27 | 2.2 | 29 | 28 | 27 | 26 | 23 | ||||
| EMC32-15-30 | 3 | 35 | 34 | 32 | 30 | 23 | ||||
| EMC32-15-38 | 4 | 43 | 42 | 40 | 38 | 33 | ||||
| EMC32-15-46 | 5.5 | 49 | 49 | 48 | 46 | 44 | ||||
| EMC32-20-57 | 7.5 | 62 | 62 | 61 | 59 | 57 | 53 | |||
| EMC32-20-72 | 11 | 77 | 77 | 76 | 75 | 72 | 67 |

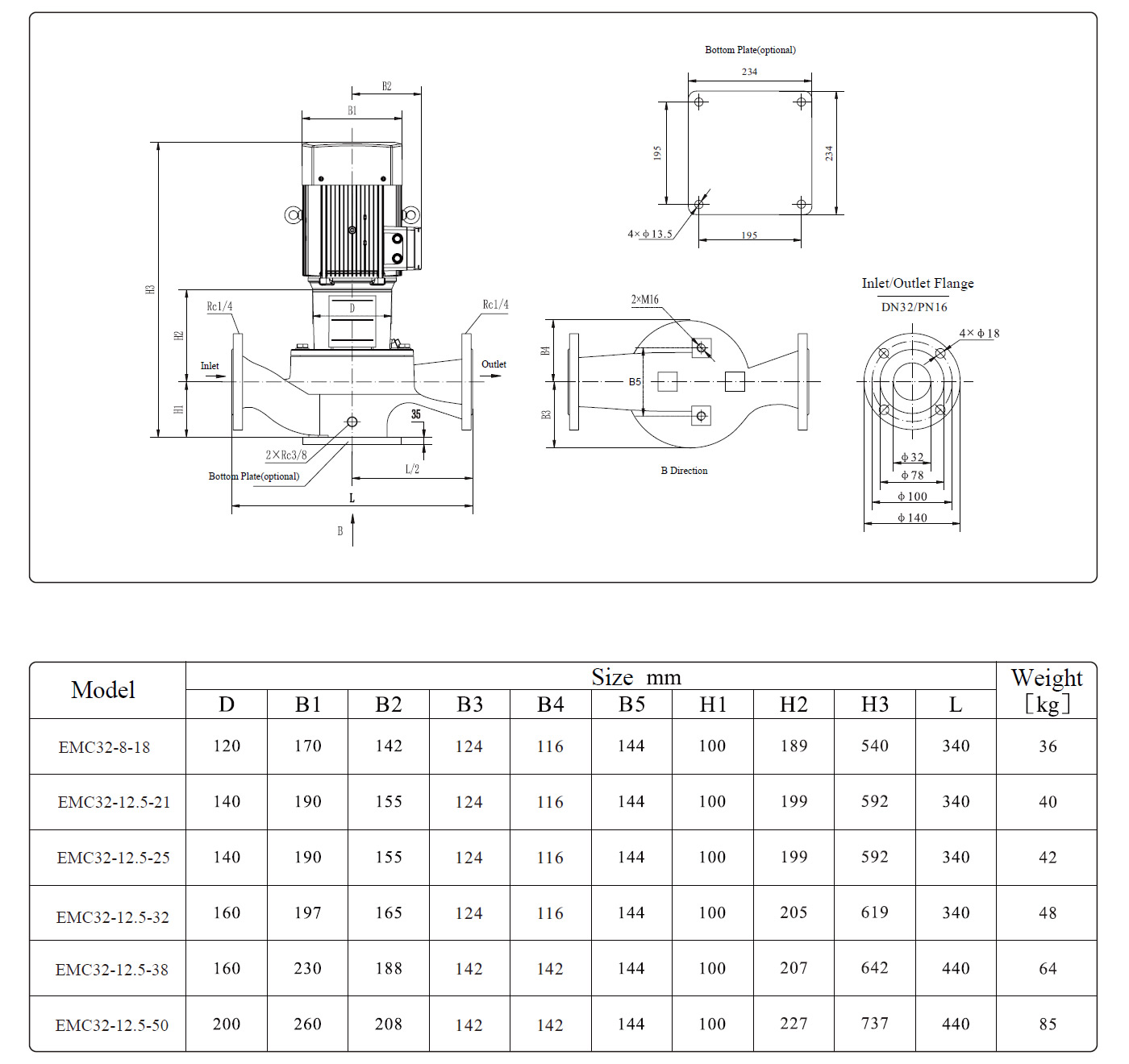

4. Dimensions and Weights:
@ 50Hz, 2900r/min
