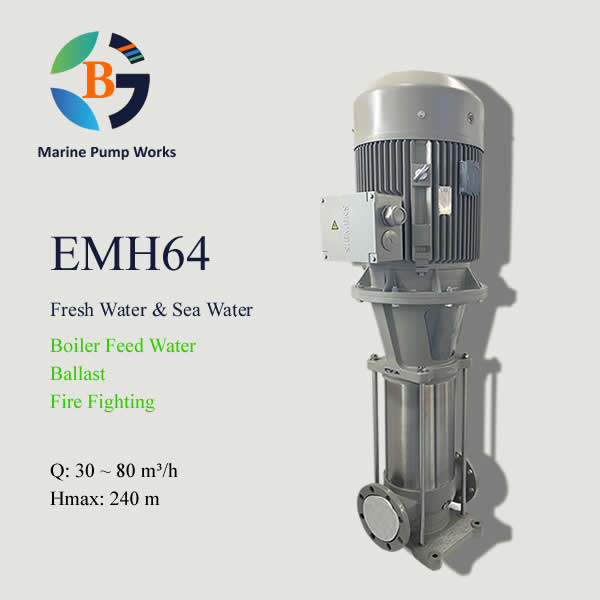

EMH64
Type: Vertical Multistage Centrifugal Pump
Stage: Multistage
Fluid: Fresh Water & Sea Water
Application: Boiler Feed Water/ Ballast/ Fire Fighting
Q(@50Hz, 2900r/min): 30 ~ 80 m³/h
Hmax(@50Hz, 2900r/min): 240 m
Q(@60Hz,3500r/min): 40 ~ 90 m³/h
Hmax(@60Hz,3500r/min): 202 m
Certificate: CCS/BV/ABS/RINA
Description
EMH64 marine pump is a marine vertical multistage centrifugal pump with inlet and outlet flange are DN100. with flow rate Q: 30~80 m³/h @ 50Hz, 2900r/min and Q: 40~90 m³/h @ 60Hz, 3500r/min. It is designed to transfer fresh water, widely used for boiler feed water, fire fighting and drinking water service, aslo can used for ballast water management system with SUS2205 material.
1. Model Key
EMH64-80-2
- EMH – Marine pump code
- 64 – Pump rated capacity is 64 m³/h
- 80 – Number of impellers is 14
- 2 – Number of reduced-diameter impellers is 2
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Pump Head | QT500/SUS304、316、2205 |
| 3 | Seal Cover | QT500/SUS304、316、2205 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Top Diffuser | SUS304、316、2205 |
| 6 | Diffuser | SUS304、316、2205 |
| 7 | Support Diffuser | SUS304、316、2205 |
| 8 | Coupling | QT500 |
| 9 | Impeller | SUS304、316、2205 |
| 10 | Cylinder | SUS304、316、2205 |
| 11 | Shaft | SUS304、316、2205 |
| 12 | Bearing | TC |
| 13 | Inducer | SUS304、316、2205 |
| 14 | Pump Base | QT500/SUS304、316、2205 |
| 15 | Base Plate | QT500 |
3. Technical Date:
@ 50Hz, 2900r/min
@ 60Hz, 3500r/min
| Model | Motor（kW） | Q (m³/h) | 30 | 40 | 50 | 60 | 64 | 70 | 80 |
| EMH64-10-1 | 5.5 | H(m) | 27 | 25 | 23 | 21 | 20 | 18 | 15 |
| EMH64-10 | 7.5 | 30 | 29.5 | 29 | 28 | 27 | 26 | 24 | |
| EMH64-20-2 | 11 | 53 | 51 | 47 | 43 | 41 | 37 | 30 | |
| EMH64-20 | 15 | 60 | 59 | 58 | 55 | 54 | 52 | 48 | |
| EMH64-30-2 | 18.5 | 83 | 81 | 76 | 71 | 68 | 63 | 54 | |
| EMH64-30 | 22 | 90 | 89 | 86 | 83 | 81 | 78 | 72 | |
| EMH64-40-2 | 30 | 113 | 110 | 105 | 98 | 95 | 89 | 78 | |
| EMH64-40 | 30 | 120 | 119 | 115 | 110 | 108 | 104 | 96 | |
| EMH64-50-2 | 37 | 143 | 140 | 133 | 126 | 122 | 115 | 102 | |
| EMH64-50 | 37 | 150 | 148 | 144 | 138 | 135 | 130 | 120 | |
| EMH64-60-2 | 45 | 173 | 170 | 162 | 153 | 149 | 141 | 126 | |
| EMH64-60 | 45 | 180 | 178 | 173 | 165 | 162 | 156 | 144 | |
| EMH64-70-2 | 55 | 203 | 199 | 191 | 181 | 176 | 167 | 150 | |
| EMH64-70 | 55 | 210 | 207 | 201 | 193 | 189 | 182 | 168 | |
| EMH64-80-2 | 55 | 233 | 229 | 220 | 208 | 203 | 193 | 174 | |
| EMH64-80 | 55 | 240 | 237 | 230 | 220 | 216 | 208 | 192 |
@ 60Hz, 3500r/min
| Model | Motor（kW） | Q (m³/h) | 40 | 50 | 60 | 64 | 70 | 80 | 90 |
| EMH64-10-1 | 11 | H(m) | 37 | 35 | 33 | 32.5 | 31 | 28 | 24 |
| EMH64-10 | 15 | 43 | 41 | 40.4 | 40.2 | 39.9 | 38 | 37 | |
| EMH64-20-2 | 22 | 74 | 70 | 66 | 65 | 62 | 56 | 48 | |
| EMH64-20 | 30 | 85 | 83 | 81 | 80.5 | 80 | 77 | 74 | |
| EMH64-30-2 | 30 | 117 | 111 | 106 | 105 | 102 | 94 | 85 | |
| EMH64-30 | 37 | 128 | 124 | 121 | 120.5 | 120 | 115 | 110 | |
| EMH64-40-2 | 45 | 159 | 153 | 147 | 145 | 142 | 133 | 122 | |
| EMH64-40 | 55 | 170 | 165 | 162 | 161 | 159 | 154 | 147 | |
| EMH64-50-2 | 55 | 202 | 194 | 187 | 186 | 182 | 171 | 158 |

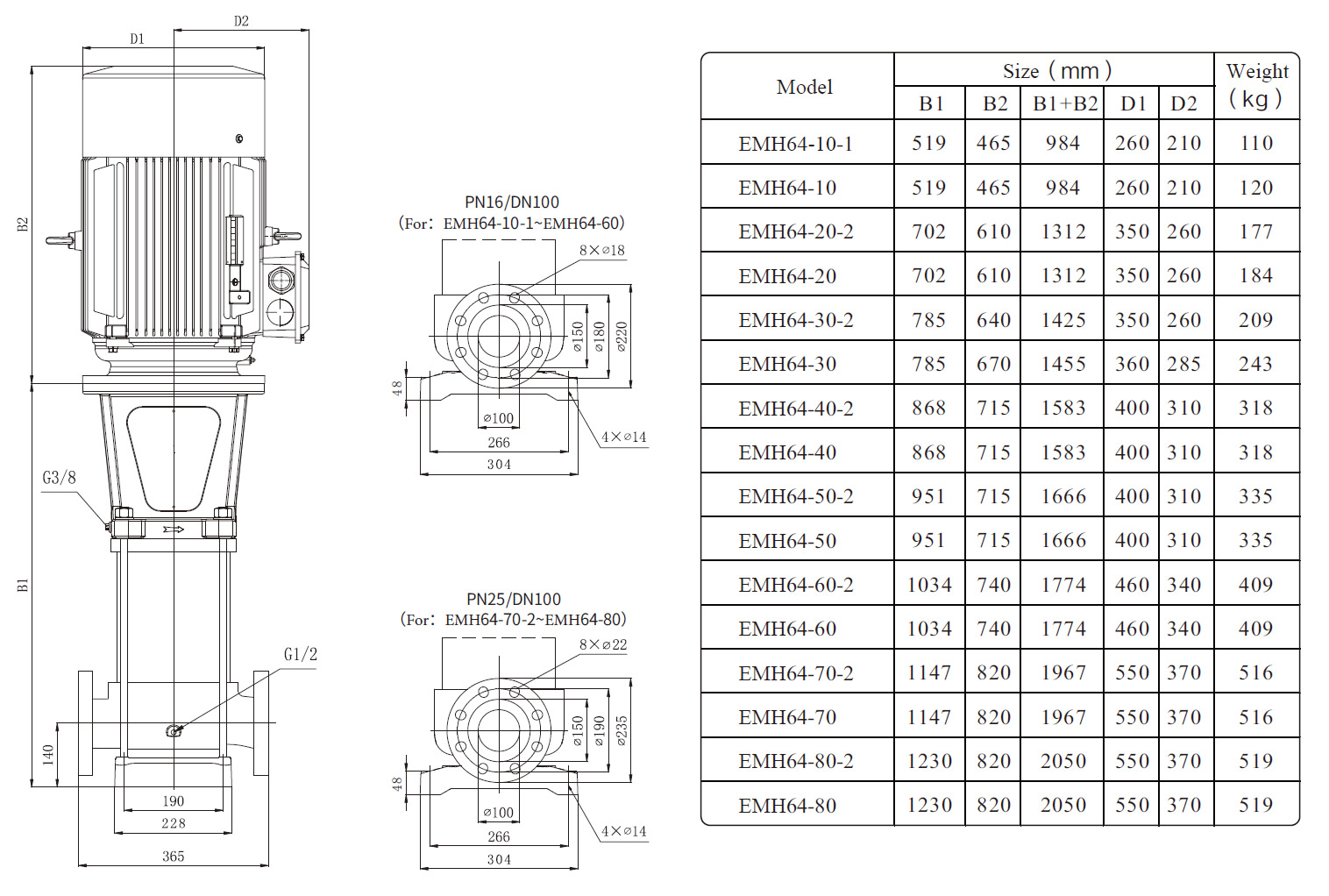

4. Dimensions and Weights:
@ 50Hz, 2900r/min
