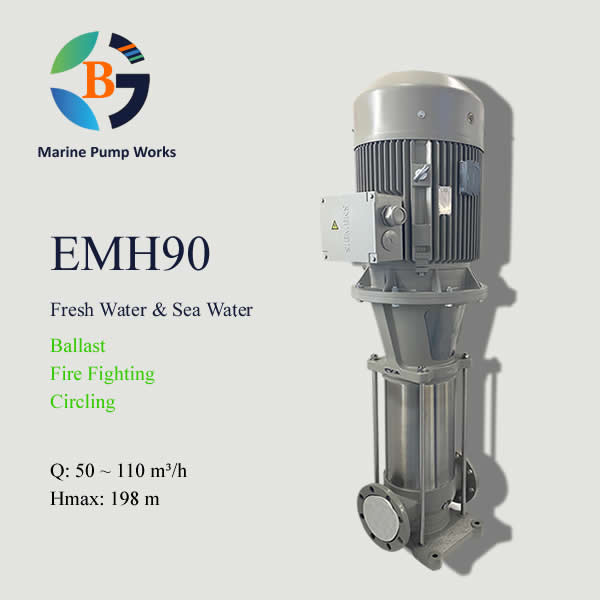

EMH90
Type: Vertical Multistage Centrifugal Pump
Stage: Multistage
Fluid: Fresh Water & Sea Water
Application: Ballast/ Fire Fighting/ Circling
Q(@50Hz, 2900r/min): 50 ~ 110 m³/h
Hmax(@50Hz, 2900r/min): 198 m
Q(@60Hz,3500r/min): 40 ~ 90 m³/h
Hmax(@60Hz,3500r/min): 202 m
Certificate: CCS/BV/ABS/RINA
Description
EMH90 marine pump is a marine vertical multistage centrifugal pump with inlet and outlet flange are DN100. with flow rate Q: 50~110 m³/h @ 50Hz, 2900r/min and Q: 60~120 m³/h @ 60Hz, 3500r/min. It is designed to transfer fresh water, widely used for fire fighting and circling, aslo can used for ballast water management system with SUS2205 material.
1. Model Key
EMH90-50-2
- EMH – Marine pump code
- 90 – Pump rated capacity is 90 m³/h
- 50 – Number of impellers is 5
- 2 – Number of reduced-diameter impellers is 2
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Pump Head | QT500/SUS304、316、2205 |
| 3 | Seal Cover | QT500/SUS304、316、2205 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Top Diffuser | SUS304、316、2205 |
| 6 | Diffuser | SUS304、316、2205 |
| 7 | Support Diffuser | SUS304、316、2205 |
| 8 | Coupling | QT500 |
| 9 | Impeller | SUS304、316、2205 |
| 10 | Cylinder | SUS304、316、2205 |
| 11 | Shaft | SUS304、316、2205 |
| 12 | Bearing | TC |
| 13 | Inducer | SUS304、316、2205 |
| 14 | Pump Base | QT500/SUS304、316、2205 |
| 15 | Base Plate | QT500 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 50 | 60 | 70 | 80 | 90 | 100 | 110 |
| EMH90-10-1 | 7.5 | H(m) | 25 | 24 | 22 | 21 | 19 | 16 | 12 |
| EMH90-10 | 11 | 29 | 28 | 27 | 26 | 24 | 22 | 20 | |
| EMH90-20-2 | 15 | 53 | 50 | 47 | 44 | 40 | 36 | 30 | |
| EMH90-20 | 18.5 | 58 | 56 | 55 | 51 | 48 | 44 | 39 | |
| EMH90-30-2 | 22 | 82 | 78 | 74 | 70 | 64 | 58 | 50 | |
| EMH90-30 | 30 | 87 | 84 | 82 | 77 | 72 | 66 | 59 | |
| EMH90-40-2 | 30 | 111 | 106 | 102 | 95 | 88 | 80 | 69 | |
| EMH90-40 | 37 | 116 | 112 | 109 | 103 | 96 | 88 | 79 | |
| EMH90-50-2 | 45 | 140 | 134 | 129 | 121 | 112 | 102 | 89 | |
| EMH90-50 | 45 | 145 | 140 | 137 | 128 | 120 | 110 | 98 | |
| EMH90-60-2 | 55 | 169 | 162 | 156 | 147 | 136 | 124 | 109 | |
| EMH90-60 | 55 | 174 | 168 | 164 | 154 | 144 | 132 | 118 | |
| EMH90-70-2 | 55 | 198 | 190 | 184 | 172 | 160 | 146 | 128 |
@ 60Hz, 3500r/min
| Model | Motor（kW） | Q (m³/h) | 60 | 70 | 80 | 90 | 100 | 110 | 120 |
| EMH90-10-1 | 15 | H(m) | 36 | 35 | 33 | 31 | 29 | 26 | 23 |
| EMH90-10 | 15 | 41 | 40 | 39 | 37 | 35 | 33 | 31 | |
| EMH90-20-2 | 30 | 72 | 70 | 66 | 62 | 58 | 52 | 46 | |
| EMH90-20 | 30 | 83.5 | 80.5 | 78 | 75 | 71 | 66 | 61 | |
| EMH90-30-2 | 45 | 113 | 110 | 105 | 99 | 93 | 85 | 77 | |
| EMH90-30 | 45 | 125 | 121 | 117 | 112 | 106 | 99 | 92 | |
| EMH90-40-2 | 45 | 154 | 150 | 143 | 137 | 129 | 118 | 107 | |
| EMH90-40 | 55 | 167 | 161 | 157 | 149 | 141 | 133 | 122 |

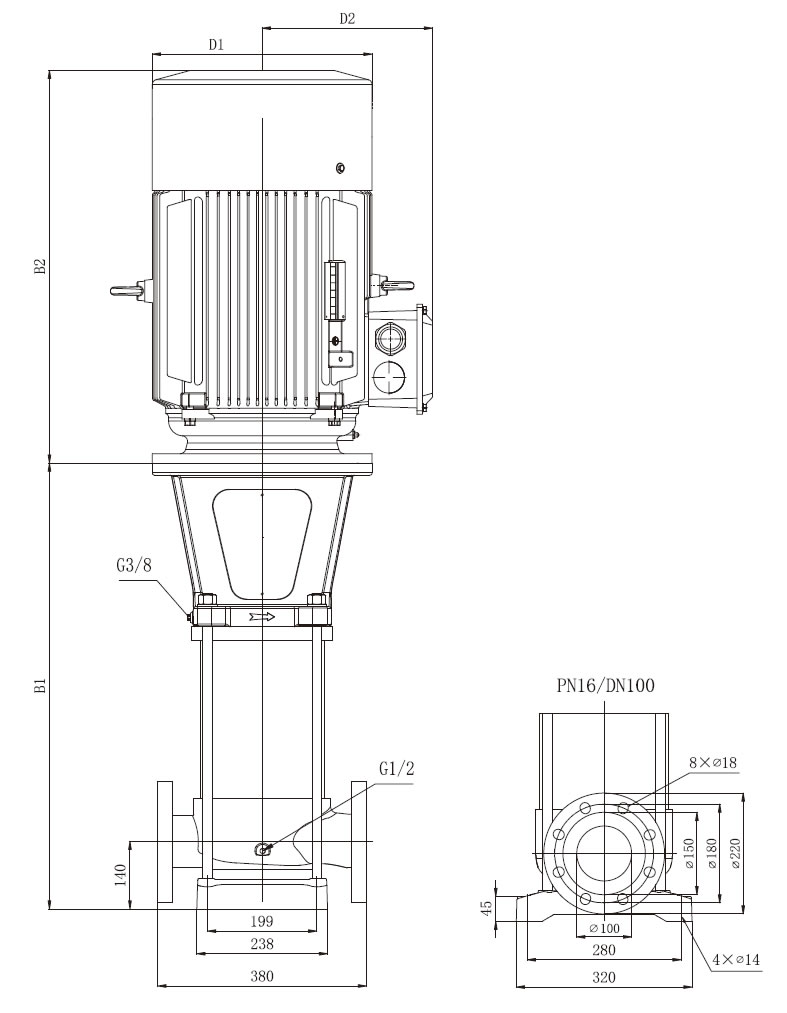

4. Dimensions and Weights:
@ 50Hz, 2900r/min
| Model | Size（mm） | Weight | ||||
| B1 | B2 | B1+B2 | D1 | D2 | （kg） | |
| EMH90-10-1 | 598 | 465 | 1063 | 260 | 210 | 125 |
| EMH90-10 | 628 | 610 | 1238 | 350 | 260 | 179 |
| EMH90-20-2 | 720 | 610 | 1330 | 350 | 260 | 189 |
| EMH90-20 | 720 | 640 | 1360 | 350 | 260 | 217 |
| EMH90-30-2 | 812 | 670 | 1482 | 360 | 285 | 248 |
| EMH90-30 | 812 | 715 | 1527 | 400 | 310 | 319 |
| EMH90-40-2 | 904 | 715 | 1619 | 400 | 310 | 322 |
| EMH90-40 | 904 | 715 | 1619 | 400 | 310 | 336 |
| EMH90-50-2 | 996 | 740 | 1736 | 460 | 340 | 412 |
| EMH90-50 | 996 | 740 | 1736 | 460 | 340 | 412 |
| EMH90-60-2 | 1118 | 820 | 1938 | 550 | 370 | 519 |
| EMH90-60 | 1118 | 820 | 1938 | 550 | 370 | 519 |
| EMH90-70-2 | 1210 | 820 | 2030 | 550 | 370 | 522 |
