ER-125
Type: Water Jet Eductor
Construction: V or H
Fluid: Sea Water
Application: Bilge/ Ballast/ Stripping/ Flushing
SQ(Suction Capacity): 55 m³/h
DQ(Driving Capacity): 65~105 m³/h
Certificate: CCS/BV/ABS/RINA
Description
Marine Eductor is a kind of pump that relies on high-energy driving fluid to eject other fluids to achieve the purpose of suctioning and discharge. ER-125 marine eductor is a marine water jet pump with right angle structure. which suction capacity is 55 m³/h, driving capacity is 65~105 m³/h.
1. Model Key
ER-125
- ER – Marine Eductor code
- 125 – Suction Flange is DN125
2. Construction(Type "H") and Material:
| Part No. | Name | Material |
| 1 | Body | HT200/SUS304/ZCuZn16Si4 |
| 2 | Diffuser | HT200/SUS304/ZCuZn16Si4 |
| 3 | Nozzle | SUS304 |
3. Technical Date:
| Model | Suction Capacity (m³/h) | Driving Capacity (m³/h) |
| ER-40S | 5 | 6~10 |
| ER-40 | 7 | 10~13 |
| ER-50 | 10 | 15~30 |
| ER-65 | 20 | 25~45 |
| ER-80 | 30 | 35~65 |
| ER-100 | 40 | 40~80 |
| ER-125 | 55 | 65~105 |
| ER-150 | 100 | 110~200 |
| ER-200 | 160 | 170~320 |
| ER-250 | 240 | 260~480 |

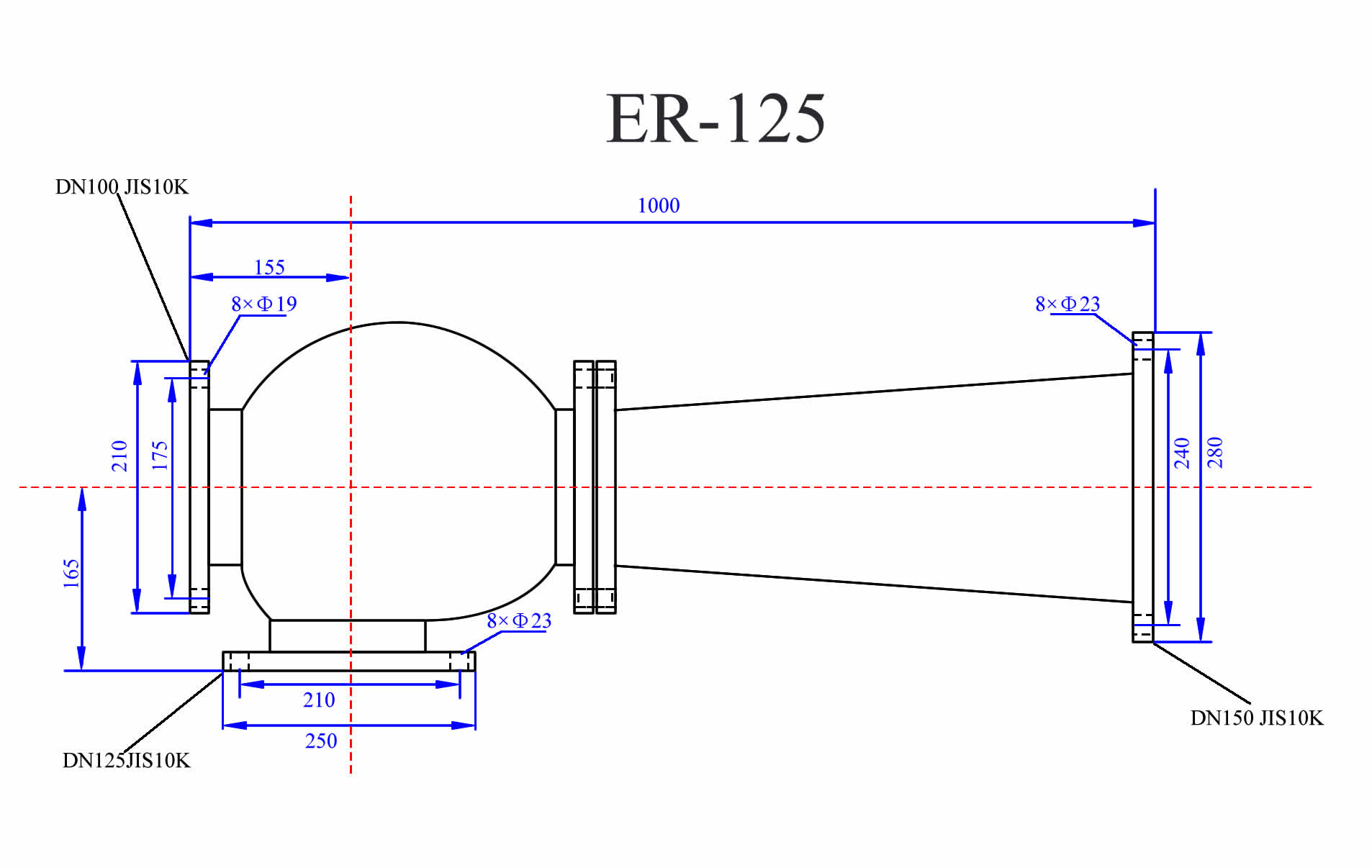

4. Dimensions:
