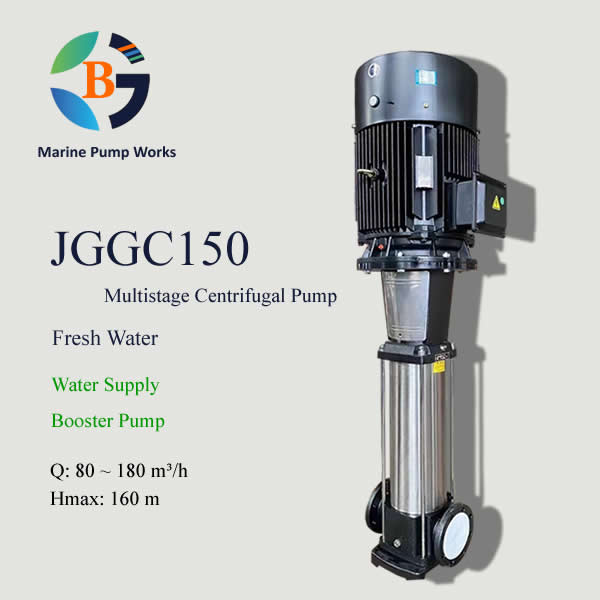

JGGC150
Type: Vertical Multistage Centrifugal Pump
Stage: Multistage
Fluid: Fresh Water & Sea Water
Application: Booster Pump/ Water Supply
Q(@50Hz, 2900r/min): 80 ~ 180 m³/h
Hmax(@50Hz, 2900r/min): 157 m
Inlet and Outlet Flange: DN125
Description
JGGC150 water pump is a vertical multistage centrifugal pump with inlet and outlet flange are DN125. With flow rate Q: 80~180m³/h @ 50Hz, 2900r/min and Max. head 157m. It is designed to transfer fresh water, widely used for booster pump and general water supply service, aslo can be used for trasfering seawater with 316L or SUS2205 material.
1. Model Key
JGGC150-50-1
- JGGC – Industrial pump code
- 150- Pump rated capacity is 150 m³/h
- 50 – Number of impellers is 5
- 1 – Number of reduced-diameter impellers is 1
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Pump Head | QT500/SUS304、316、2205 |
| 3 | Seal Cover | QT500/SUS304、316、2205 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 7 | Support Diffuser | SUS304、316、2205 |
| 8 | Coupling | QT500 |
| 9 | Impeller | SUS304、316、2205 |
| 10 | Cylinder | SUS304、316、2205 |
| 11 | Shaft | SUS304、316、2205 |
| 12 | Bearing | TC |
| 13 | Inducer | SUS304、316、2205 |
| 14 | Pump Base | QT500/SUS304、316、2205 |
| 15 | Base Plate | QT500 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | 180 |
| JGGC150-10-1 | 11 | H(m) | 18.3 | 17.8 | 17.3 | 17 | 16 | 15 | 14 | 12.5 | 11 | 10 | 8.5 |
| JGGC150-10 | 15 | 24 | 23 | 22.5 | 22 | 21.5 | 20.5 | 20 | 18.5 | 17 | 16 | 15 | |
| JGGC150-20-2 | 18.5 | 37 | 35.5 | 34 | 33 | 32 | 31 | 29 | 27.5 | 26 | 23 | 21 | |
| JGGC150-20-1 | 22 | 44.3 | 43 | 42 | 40 | 39 | 38.5 | 37.5 | 35 | 33 | 30 | 27 | |
| JGGC150-20 | 30 | 50 | 49 | 48 | 47 | 45.5 | 44 | 42 | 40 | 37 | 34 | 32 | |
| JGGC150-30-2 | 30 | 63.5 | 61 | 59 | 57.5 | 56 | 54.5 | 53 | 49 | 45.S | 42 | 39 | |
| JGGC150-30-1 | 37 | 70 | 68 | 67 | 65 | 63 | 62 | 60 | 56 | 53 | 49 | 45 | |
| JGGC150-30 | 37 | 78 | 76.5 | 75 | 73 | 70.5 | 68 | 66 | 63 | 59 | 55 | 50.5 | |
| JGGC150-40-2 | 45 | 89 | 87 | 84 | 81.5 | 79 | 77 | 74.5 | 70.5 | 65.5 | 60 | 56 | |
| JGGC150-40-1 | 45 | 96.S | 94 | 91.5 | 89 | 86.5 | 84 | 81.5 | 77 | 72.5 | 67 | 62 | |
| JGGC150-40 | 55 | 104 | 102 | 100 | 97 | 95 | 91 | 88 | 84 | 79.5 | 74 | 68 | |
| JGGC150-50-2 | 55 | 115.5 | 112 | 109 | 106 | 102.5 | 100 | 97 | 92 | 86 | 79 | 73.5 | |
| JGGC150-50-1 | 75 | 122.5 | 119.5 | 117 | 113.5 | 111.5 | 107.5 | 104.5 | 99 | 93.5 | 87 | 80 | |
| JGGC150-50 | 75 | 130 | 127.5 | 125 | 121 | 119 | 115 | 111.5 | 106.5 | 101 | 94.S | 86.5 | |
| JGGC150-60-2 | 75 | 140 | 137 | 133 | 130 | 126 | 121 | 118 | 112 | 106 | 98 | 91 | |
| JGGC150-60-1 | 75 | 148.5 | 145 | 141.7 | 137.5 | 135 | 131 | 127 | 120.5 | 114.5 | 106.5 | 97.5 | |
| JGGC150-60 | 75 | 157 | 153 | 149 | 145 | 142 | 139.5 | 137 | 130 | 123.5 | 116 | 109 |

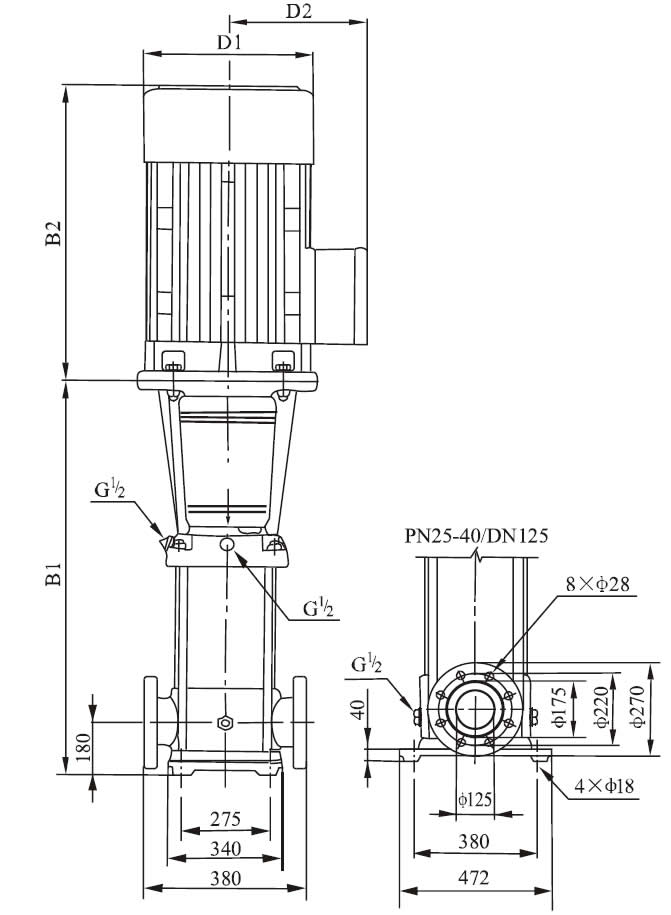

4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size(mm) | Weight (kg) | ||||
| Bl | B2 | Bl+B2 | D1 | D2 | ||
| JGGC150-10-1 | 840 | 580 | 1420 | 350 | 260 | 235 |
| JGGC150-10 | 840 | 580 | 1420 | 350 | 260 | 235 |
| JGGC150-20-2 | 1000 | 610 | 1610 | 350 | 260 | 250 |
| JGGC150-20-1 | 1000 | 645 | 1645 | 360 | 285 | 295 |
| JGGC150-20 | 1000 | 705 | 1705 | 400 | 310 | 350 |
| JGGC150-30-2 | 1160 | 705 | 1865 | 400 | 310 | 360 |
| JGGC150-30-1 | 1160 | 705 | 1865 | 400 | 310 | 385 |
| JGGC150-30 | 1160 | 705 | 1865 | 400 | 310 | 385 |
| JGGC150-40-2 | 1320 | 740 | 2060 | 460 | 340 | 460 |
| JGGC150-40-1 | 1320 | 740 | 2060 | 460 | 340 | 460 |
| JGGC150-40 | 1350 | 810 | 2160 | 550 | 370 | 560 |
| JGGC150-50-2 | 1510 | 810 | 2320 | 550 | 370 | 570 |
| JGGC150-50-1 | 1510 | 870 | 2380 | 580 | 410 | 690 |
| JGGC150-50 | 1510 | 870 | 2380 | 580 | 410 | 690 |
| JGGC150-60-2 | 1670 | 870 | 2540 | 580 | 410 | 700 |
| JGGC150-60-1 | 1670 | 870 | 2540 | 580 | 410 | 703 |
| JGGC150-60 | 1670 | 870 | 2540 | 580 | 410 | 703 |
