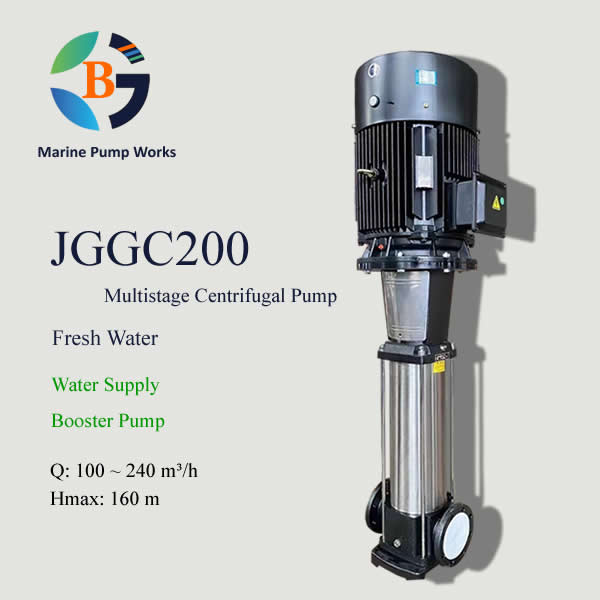

JGGC200
Type: Vertical Multistage Centrifugal Pump
Stage: Multistage
Fluid: Fresh Water & Sea Water
Application: Booster Pump/ Water Supply
Q(@50Hz, 2900r/min): 100 ~ 240 m³/h
Hmax(@50Hz, 2900r/min): 157.5 m
Inlet and Outlet Flange: DN150
Description
JGGC200 water pump is a vertical multistage centrifugal pump with inlet and outlet flange are DN150. With flow rate Q: 100~240m³/h @ 50Hz, 2900r/min and Max. head 157.5m. It is designed to transfer fresh water, widely used for booster pump and general water supply service, aslo can be used for trasfering seawater with 316L or SUS2205 material.
1. Model Key
JGGC200-30-A-B
- JGGC – Industrial pump code
- 200- Pump rated capacity is 200 m³/h
- 30 – Number of impellers is 3
- A – Number of reduced-diameter impellers A is 1
- B- Number of reduced-diameter impellers B is 1
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Pump Head | QT500/SUS304、316、2205 |
| 3 | Seal Cover | QT500/SUS304、316、2205 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 7 | Support Diffuser | SUS304、316、2205 |
| 8 | Coupling | QT500 |
| 9 | Impeller | SUS304、316、2205 |
| 10 | Cylinder | SUS304、316、2205 |
| 11 | Shaft | SUS304、316、2205 |
| 12 | Bearing | TC |
| 13 | Inducer | SUS304、316、2205 |
| 14 | Pump Base | QT500/SUS304、316、2205 |
| 15 | Base Plate | QT500 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 100 | 120 | 140 | 160 | 180 | 200 | 220 | 240 |
| JGGC200-10-B | 18.5 | H(m) | 25.5 | 25 | 24 | 23 | 21.5 | 20 | 18 | 15.5 |
| JGGC200-10-A | 22 | 29 | 28.5 | 21.5 | 26.5 | 25.5 | 24 | 22 | 20 | |
| JGGC200-10 | 30 | 38.5 | 38 | 37.5 | 36.5 | 35 | 34 | 32.5 | 30 | |
| JGGC200-20-2B | 37 | 53 | 51 | 49 | 47 | 44 | 41 | 37 | 32 | |
| JGGC200-20-2A | 45 | 59.5 | 58 | 56 | 54 | 52.5 | 49 | 44.5 | 40.5 | |
| JGGC200-20-A | 55 | 69 | 68 | 66 | 64 | 62 | 59 | 55.5 | 51 | |
| JGGC200-20 | 55 | 78.5 | 11.5 | 76 | 74 | 71.5 | 69 | 66 | 61.5 | |
| JGGC200-30-2B | 15 | 91.5 | 89 | 86.5 | 83.5 | 79 | 15 | 70 | 63 | |
| JGGC200-30-A-B | 15 | 95 | 93 | 90 | 87 | 83.5 | 79 | 73.5 | 67 | |
| JGGC200-30-2A | 15 | 99.5 | 97.5 | 94.5 | 91.5 | 89 | 84 | 78.5 | 72 | |
| JGGC200-30-B | 15 | 104.5 | 102.5 | 100 | 97 | 93 | 89 | 84.5 | 11.5 | |
| JGGC200-30-A | 15 | 108 | 106 | 103.5 | 100.5 | 97.5 | 93 | 88 | 81.5 | |
| JGGC200-30 | 90 | 117.5 | 116 | 113.5 | 110.5 | 107 | 103 | 99 | 92 | |
| JGGC200-40-2B | 90 | 131.5 | 129 | 125.5 | 121 | 115.5 | 110 | 103.5 | 94 | |
| JGGC200-40-2A | 110 | 138.5 | 136 | 132 | 128 | 124 | 118 | 111 | 102.5 | |
| JGGC200-40-A | 110 | 148 | 145.5 | 142.5 | 138 | 134 | 128 | 122 | 113 | |
| JGGC200-40 | 110 | 157.5 | 155.5 | 152.5 | 148 | 143.5 | 138 | 132.5 | 123.5 |

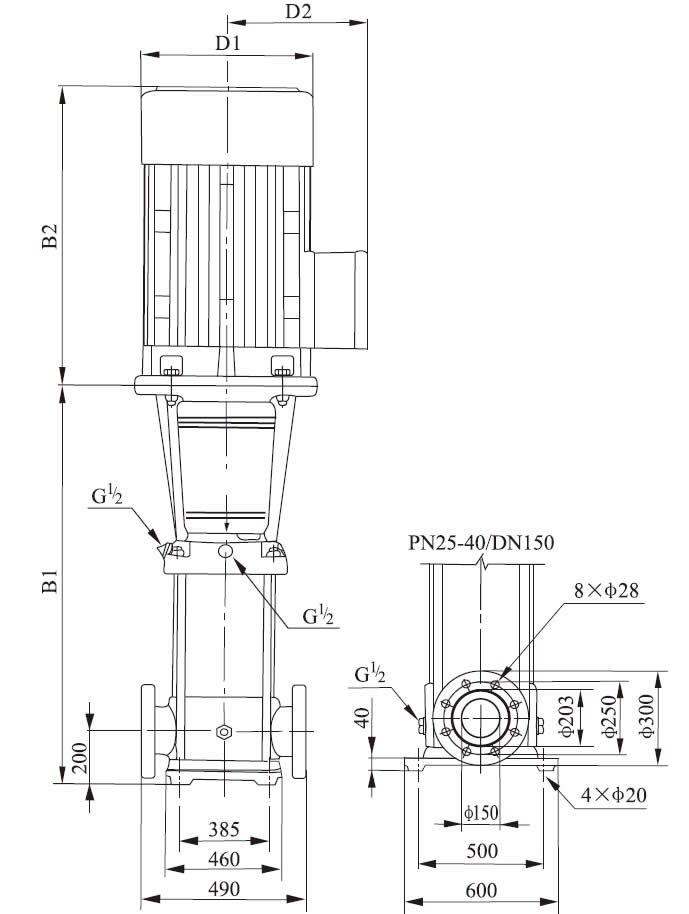

4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size(mm) | Weight (kg) | ||||
| Bl | B2 | Bl+B2 | D1 | D2 | ||
| JGGC200-10-B | 907 | 610 | 1517 | 350 | 260 | 311 |
| JGGC200-10-A | 907 | 645 | 1552 | 360 | 285 | 347 |
| JGGC200-10 | 907 | 705 | 1612 | 400 | 310 | 403 |
| JGGC200-20-2B | 1101 | 705 | 1806 | 400 | 310 | 447 |
| JGGC200-20-2A | 1101 | 740 | 1841 | 460 | 340 | 504 |
| JGGC200-20-A | 1131 | 810 | 1941 | 550 | 370 | 595 |
| JGGC200-20 | 1131 | 810 | 1941 | 550 | 370 | 595 |
| JGGC200-30-2B | 1325 | 870 | 2195 | 580 | 410 | 748 |
| JGGC200-30-A-B | 1325 | 870 | 2195 | 580 | 410 | 748 |
| JGGC200-30-2A | 1325 | 870 | 2195 | 580 | 410 | 748 |
| JGGC200-30-B | 1325 | 870 | 2195 | 580 | 410 | 748 |
| JGGC200-30-A | 1325 | 870 | 2195 | 580 | 410 | 748 |
| JGGC200-30 | 1325 | 920 | 2245 | 580 | 410 | 816 |
| JGGC200-40-2B | 1519 | 920 | 2439 | 580 | 410 | 830 |
| JGGC200-40-2A | 1519 | 1060 | 2579 | 660 | 550 | 1180 |
| JGGC200-40-A | 1519 | 1060 | 2579 | 660 | 550 | 1180 |
| JGGC200-40 | 1519 | 1060 | 2579 | 660 | 550 | 1180 |
