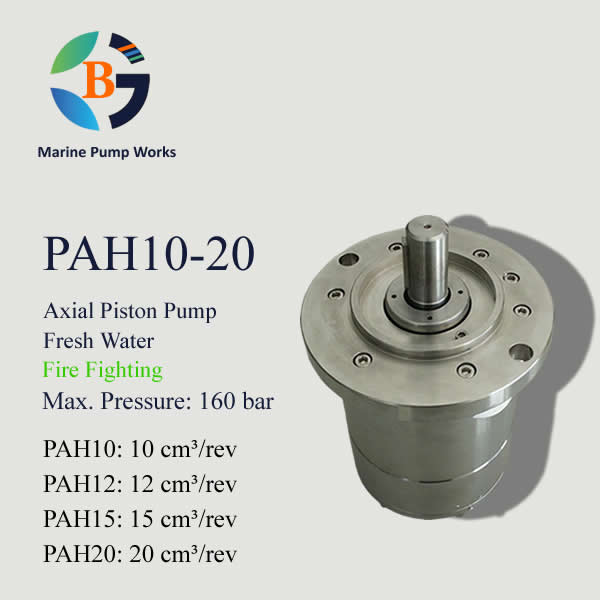

PAH10-20
Type: Positive Displacement Axial Piston Pump
Fluid: Fresh Water
Application: Fire Fighting/ Misting/ Flushing/ Humidification
Max. Pressure: 160 bar
PAH10 Displacement: 10 cm³/rev
PAH12 Displacement: 12 cm³/rev
PAH15 Displacement: 15 cm³/rev
PAH20 Displacement: 20 cm³/rev
Certificate: CCS/BV/ABS/RINA
Description
PAH pumps are positive displacement axial piston pumps, flow is proportional to the number of revolutions(rpm), unlike centrifugal pumps, they produce a fixed flow at a given speed no matter what the discharge pressure.
PAH10/PAH12/PAH15/PAH20 high pressure water pumps are axial piston pumps with displacement 10/12/15/20 cm³/rev, max. pressure 160bar.
1. Model Key
PAH15
- PAH – High Pressure Pump Code
- 15 – Geometric Displacement is 15 cm³/rev

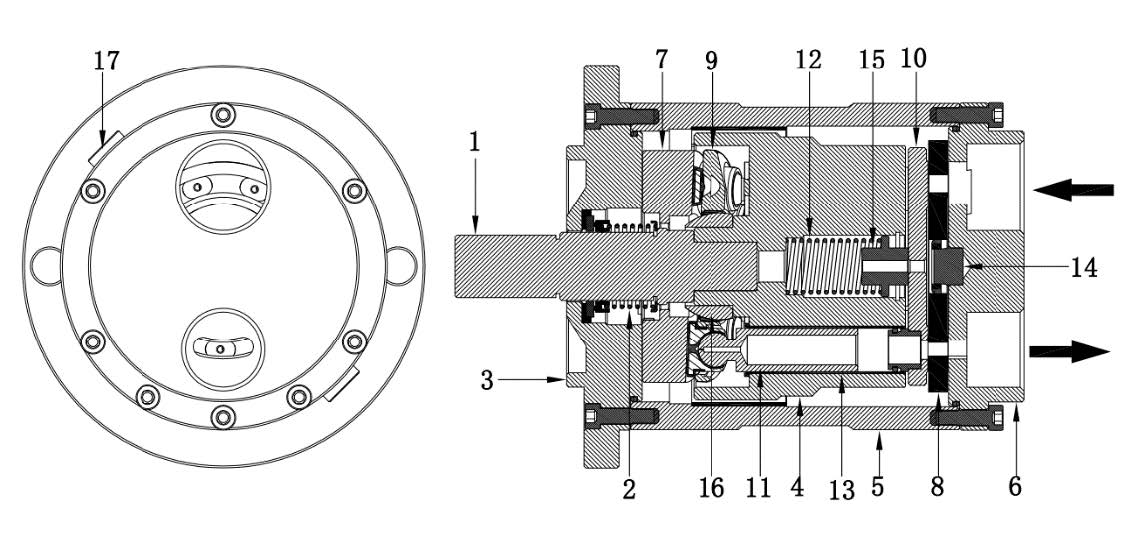

2. Construction:
| Part No. | Name | Part No. | Name |
| 1 | Main Shaft | 11 | Piston |
| 2 | Shaft Seal | 12 | Spring |
| 3 | Mounting Flange | 13 | Bushing |
| 4 | Cylinder Barrel | 14 | Guide Pin |
| 5 | Casing | 15 | Top Pin |
| 6 | Port Flange | 16 | Piston Shoes |
| 7 | Swash Plate | 17 | Plug |
| 8 | Port Plate | ||
| 9 | Retainer plate | ||
| 10 | Valve Plate |
3. Technical Date:
| Model | PAH10 | PAH12 | PAH15 | PAH20 |
| Geometric Displacement(cm³/rev) | 10 | 12 | 15 | 20 |
| Min. Continuous Speed(rpm) | 700 | 700 | 700 | 700 |
| Max. Continuous Speed(rpm) | 1800 | 1800 | 1800 | 1800 |
| Max. Continuous Outlet Pressure(bar) | 160 | 160 | 160 | 80 |
| Peak Pressure(bar) | 180 | 180 | 180 | 100 |
| Max. Continuous Flow @ 1500rpm(l/min) | 13 | 16 | 21 | 27 |
| Working Noise @1m Distance(dB) | ＜75 | ＜75 | ＜75 | ＜75 |
| Motor Power Required @ 1500rpm(kW) | 4.3 | 5.3 | 7 | 5 |
| Media Temperature(℃) | 2~50 | 2~50 | 2~50 | 2~50 |
| Ambient Temperature(℃) | 0~50 | 0~50 | 0~50 | 0~50 |
| Main Material | SUS304 | SUS304 | SUS304 | SUS304 |
| Pump Weight(kg) | 6.9 | 6.9 | 6.9 | 6.9 |

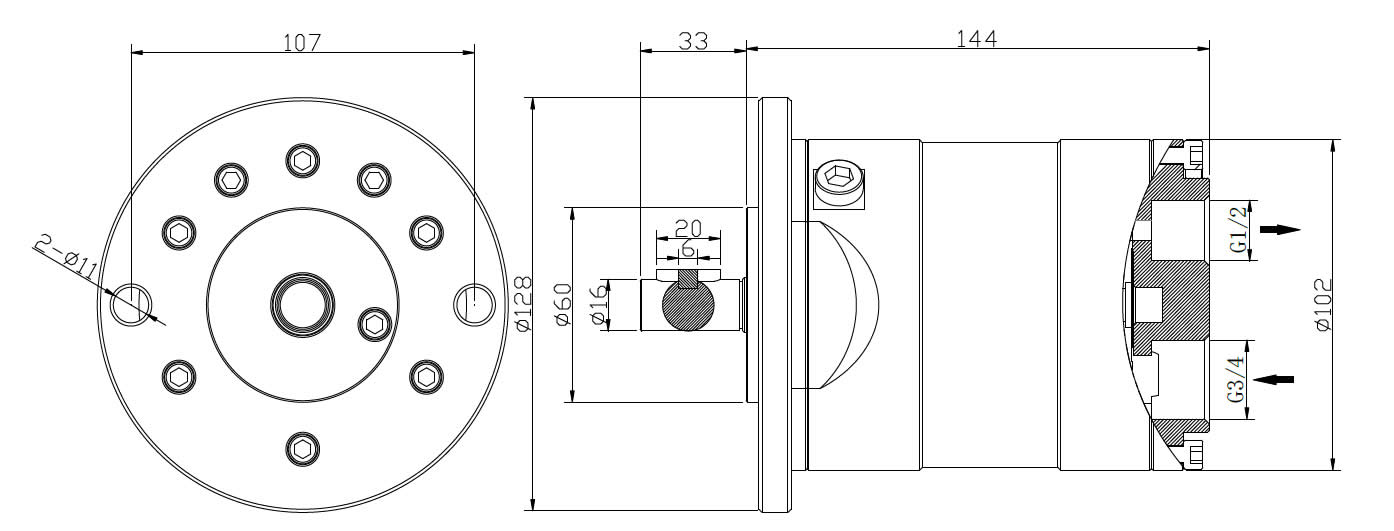

4. Dimensions:
