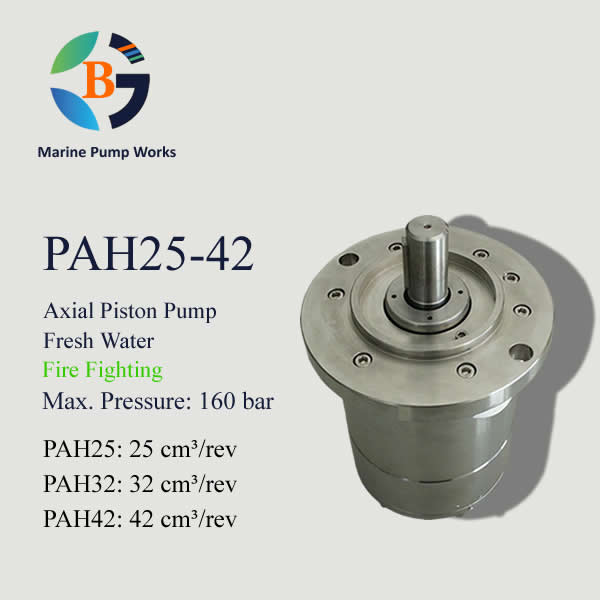

PAH25-42
Type: Positive Displacement Axial Piston Pump
Fluid: Fresh Water
Application: Fire Fighting/ Misting/ Flushing/ Humidification
Max. Pressure: 160 bar
PAH25 Displacement: 25 cm³/rev
PAH32 Displacement: 32 cm³/rev
PAH42 Displacement: 42 cm³/rev
Certificate: CCS/BV/ABS/RINA
Description
PAH pumps are positive displacement axial piston pumps, flow is proportional to the number of revolutions(rpm), unlike centrifugal pumps, they produce a fixed flow at a given speed no matter what the discharge pressure.
PAH25/PAH32/PAH42 high pressure water pumps are axial piston pumps with displacement 25/32/42 cm³/rev, max. pressure 160bar.
1. Model Key
PAH32
- PAH – High Pressure Pump Code
- 32 – Geometric Displacement is 32 cm³/rev
2. Construction:
| Part No. | Name | Part No. | Name |
| 1 | Main Shaft | 11 | Piston |
| 2 | Shaft Seal | 12 | Spring |
| 3 | Mounting Flange | 13 | Bushing |
| 4 | Cylinder Barrel | 14 | Guide Pin |
| 5 | Casing | 15 | Top Pin |
| 6 | Port Flange | 16 | Piston Shoes |
| 7 | Swash Plate | 17 | Plug |
| 8 | Port Plate | ||
| 9 | Retainer plate | ||
| 10 | Valve Plate |
3. Technical Date:
| Model | PAH25 | PAH32 | PAH42 |
| Geometric Displacement(cm³/rev) | 25 | 32 | 42 |
| Min. Continuous Speed(rpm) | 700 | 700 | 700 |
| Max. Continuous Speed(rpm) | 1800 | 1800 | 1800 |
| Max. Continuous Outlet Pressure(bar) | 160 | 160 | 80 |
| Peak Pressure(bar) | 180 | 180 | 100 |
| Max. Continuous Flow @ 1500rpm(l/min) | 35 | 44 | 55 |
| Working Noise @1m Distance(dB) | ＜78 | ＜78 | ＜78 |
| Motor Power Required @ 1500rpm(kW) | 10.5 | 13.5 | 9 |
| Media Temperature(℃) | 2~50 | 2~50 | 2~50 |
| Ambient Temperature(℃) | 0~50 | 0~50 | 0~50 |
| Main Material | SUS304 | SUS304 | SUS304 |
| Pump Weight(kg) | 16 | 16 | 16 |

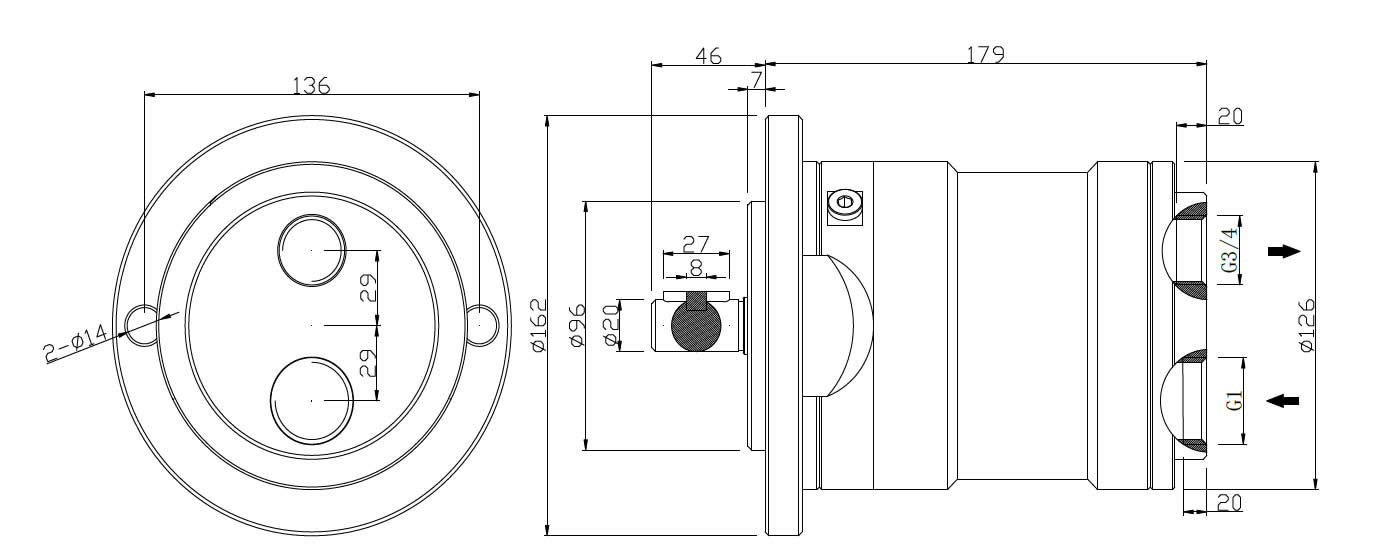

4. Dimensions:
