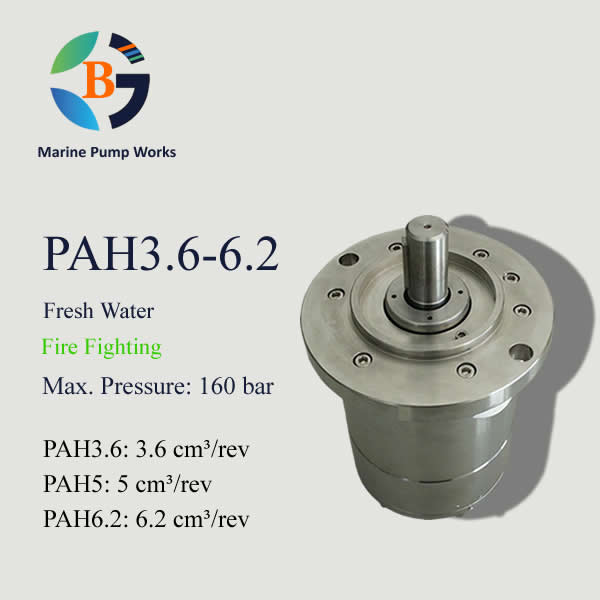

PAH3.6-6.2
Type: Positive Displacement Axial Piston Pump
Fluid: Fresh Water
Application: Fire Fighting/ Misting/ Flushing/ Humidification
Max. Pressure: 160 bar
PAH3.6 Displacement: 3.6 cm³/rev
PAH5 Displacement: 5 cm³/rev
PAH6.2 Displacement: 6.2 cm³/rev
Certificate: CCS/BV/ABS/RINA
Description
PAH pumps are positive displacement axial piston pumps, flow is proportional to the number of revolutions(rpm), unlike centrifugal pumps, they produce a fixed flow at a given speed no matter what the discharge pressure.
PAH3.6/PAH5/PAH6.2 high pressure water pumps are axial piston pumps with displacement 3.6/5/6.2 cm³/rev, max. pressure 160bar.
1. Model Key
PAH5
- PAH – High Pressure Pump Code
- 5 – Geometric Displacement is 5 cm³/rev
2. Construction:
| Part No. | Name | Part No. | Name |
| 1 | Main Shaft | 11 | Piston |
| 2 | Shaft Seal | 12 | Spring |
| 3 | Mounting Flange | 13 | Bushing |
| 4 | Cylinder Barrel | 14 | Guide Pin |
| 5 | Casing | 15 | Top Pin |
| 6 | Port Flange | 16 | Piston Shoes |
| 7 | Swash Plate | 17 | Plug |
| 8 | Port Plate | ||
| 9 | Retainer plate | ||
| 10 | Valve Plate |
3. Technical Date:
| Model | PAH3.6 | PAH5 | PAH6.2 |
| Geometric Displacement(cm³/rev) | 3.6 | 5 | 6.2 |
| Min. Continuous Speed(rpm) | 700 | 700 | 700 |
| Max. Continuous Speed(rpm) | 1800 | 1800 | 1800 |
| Max. Continuous Outlet Pressure(bar) | 160 | 160 | 160 |
| Peak Pressure(bar) | 180 | 180 | 180 |
| Max. Continuous Flow @ 1500rpm(l/min) | 5 | 6.7 | 8.4 |
| Working Noise @1m Distance(dB) | ＜75 | ＜75 | ＜75 |
| Motor Power Required @ 1500rpm(kW) | 1.8 | 2.4 | 3 |
| Media Temperature(℃) | 2~50 | 2~50 | 2~50 |
| Ambient Temperature(℃) | 0~50 | 0~50 | 0~50 |
| Main Material | SUS304 | SUS304 | SUS304 |
| Pump Weight(kg) | 3.7 | 3.7 | 3.7 |

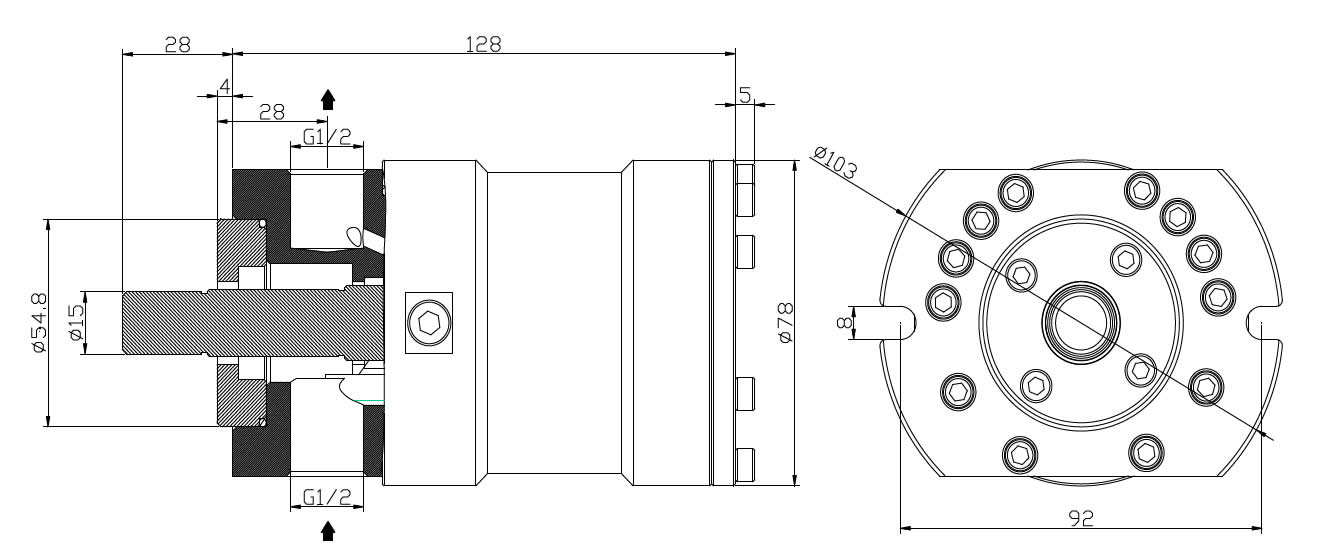

4. Dimensions:
