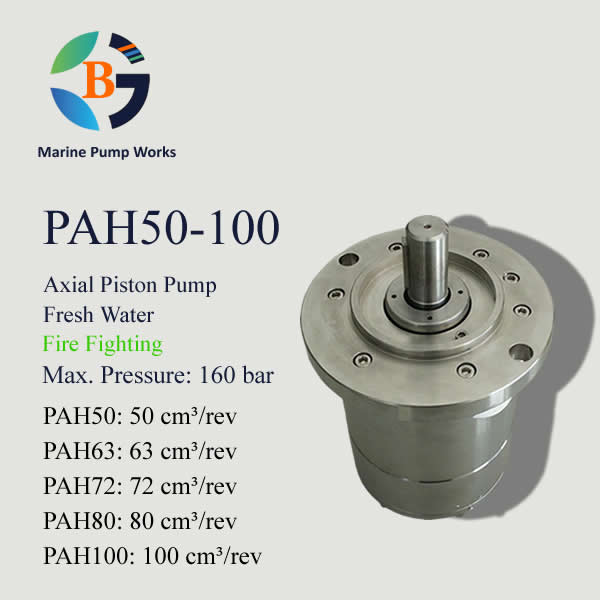

PAH50-100
Type: Positive Displacement Axial Piston Pump
Fluid: Fresh Water
Application: Fire Fighting/ Misting/ Flushing/ Humidification
Max. Pressure: 160 bar
PAH50 Displacement: 50 cm³/rev
PAH63 Displacement: 63 cm³/rev
PAH72 Displacement: 72 cm³/rev
PAH80 Displacement: 80 cm³/rev
PAH100 Displacement: 100 cm³/rev
Certificate: CCS/BV/ABS/RINA
Description
PAH pumps are positive displacement axial piston pumps, flow is proportional to the number of revolutions(rpm), unlike centrifugal pumps, they produce a fixed flow at a given speed no matter what the discharge pressure.
PAH50/PAH63/PAH72/PAH80/PAH100 high pressure water pumps are axial piston pumps with displacement 50/63/72/80/100 cm³/rev, max. pressure 160bar.
1. Model Key
PAH80
- PAH – High Pressure Pump Code
- 80 – Geometric Displacement is 80 cm³/rev
2. Construction:
| Part No. | Name | Part No. | Name |
| 1 | Main Shaft | 11 | Piston |
| 2 | Shaft Seal | 12 | Spring |
| 3 | Mounting Flange | 13 | Bushing |
| 4 | Cylinder Barrel | 14 | Guide Pin |
| 5 | Casing | 15 | Top Pin |
| 6 | Port Flange | 16 | Piston Shoes |
| 7 | Swash Plate | 17 | Plug |
| 8 | Port Plate | ||
| 9 | Retainer plate | ||
| 10 | Valve Plate |
3. Technical Date:
| Model | PAH50 | PAH63 | PAH72 | PAH80 | PAH100 |
| Geometric Displacement(cm³/rev) | 50 | 63 | 72 | 80 | 100 |
| Min. Continuous Speed(rpm) | 700 | 700 | 700 | 700 | 700 |
| Max. Continuous Speed(rpm) | 1800 | 1800 | 1800 | 1800 | 180 |
| Max. Continuous Outlet Pressure(bar) | 160 | 160 | 160 | 160 | 80 |
| Peak Pressure(bar) | 180 | 180 | 180 | 180 | 100 |
| Max. Continuous Flow @ 1500rpm(l/min) | 72 | 87 | 100 | 112 | 138 |
| Working Noise @1m Distance(dB) | ＜80 | ＜80 | ＜80 | ＜80 | ＜80 |
| Motor Power Required @ 1500rpm(kW) | 11 | 26 | 30 | 33 | 25 |
| Media Temperature(℃) | 2~50 | 2~50 | 2~50 | 2~50 | 2~50 |
| Ambient Temperature(℃) | 0~50 | 0~50 | 0~50 | 0~50 | 0~50 |
| Main Material | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 |
| Pump Weight(kg) | 31 | 31 | 31 | 31 | 31 |

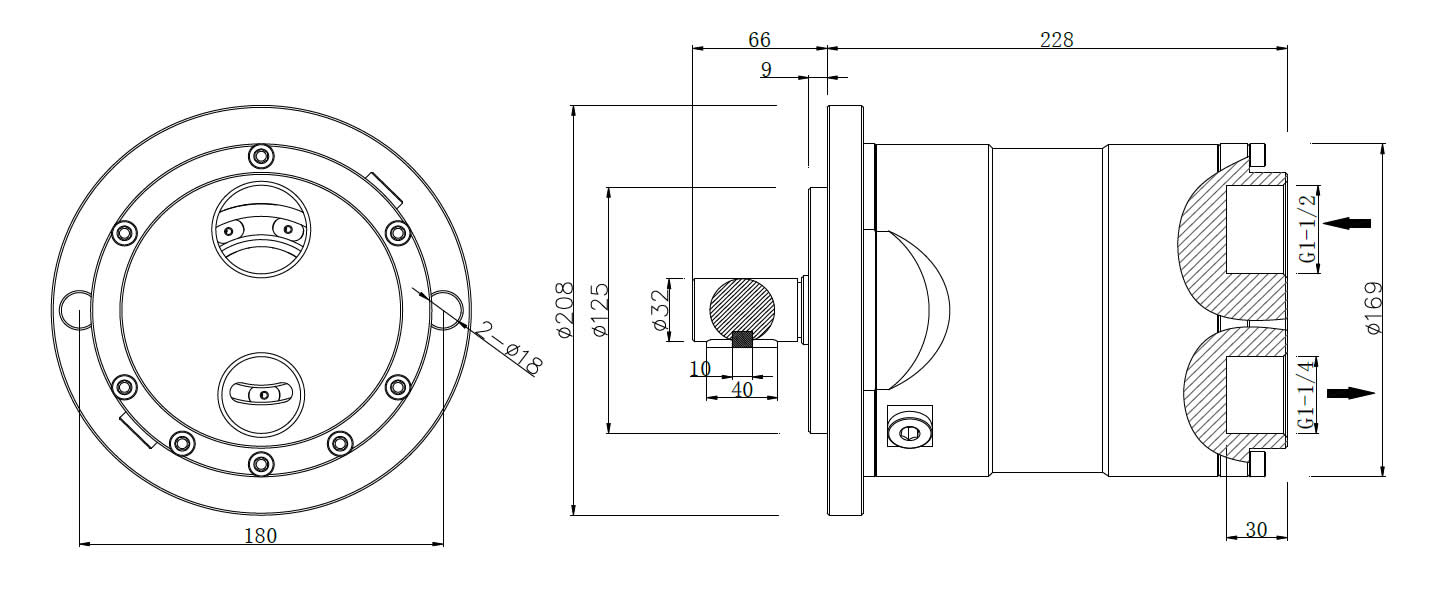

4. Dimensions:
