PHT1
Type: Vertical Multistage Centrifugal Pump
Stage: Multistage
Fluid: Fresh Water
Application: Boiler Feed Water/ Condensate Transfer
Q(@50Hz, 2900r/min): 0.4 ~ 1.8 m³/h
Hmax(@50Hz, 2900r/min): 214 m
Max. Temperature: 180 ℃
Inlet and Outlet Flange: DN25
Description
PHT1 high temperature multistage pump is centrifugal pump with flow rate Q: 0.4~1.8 m³/h @ 50Hz, 2900r/min and Max. temperature 180℃. It is designed to transfer fresh water, widely used for boiler feed water and condensate transfer.
1. Model Key
PHT1-270
- PHT – Industrial pump code
- 1 – Pump rated capacity is 1 m³/h
- 270 – Number of impellers is 27

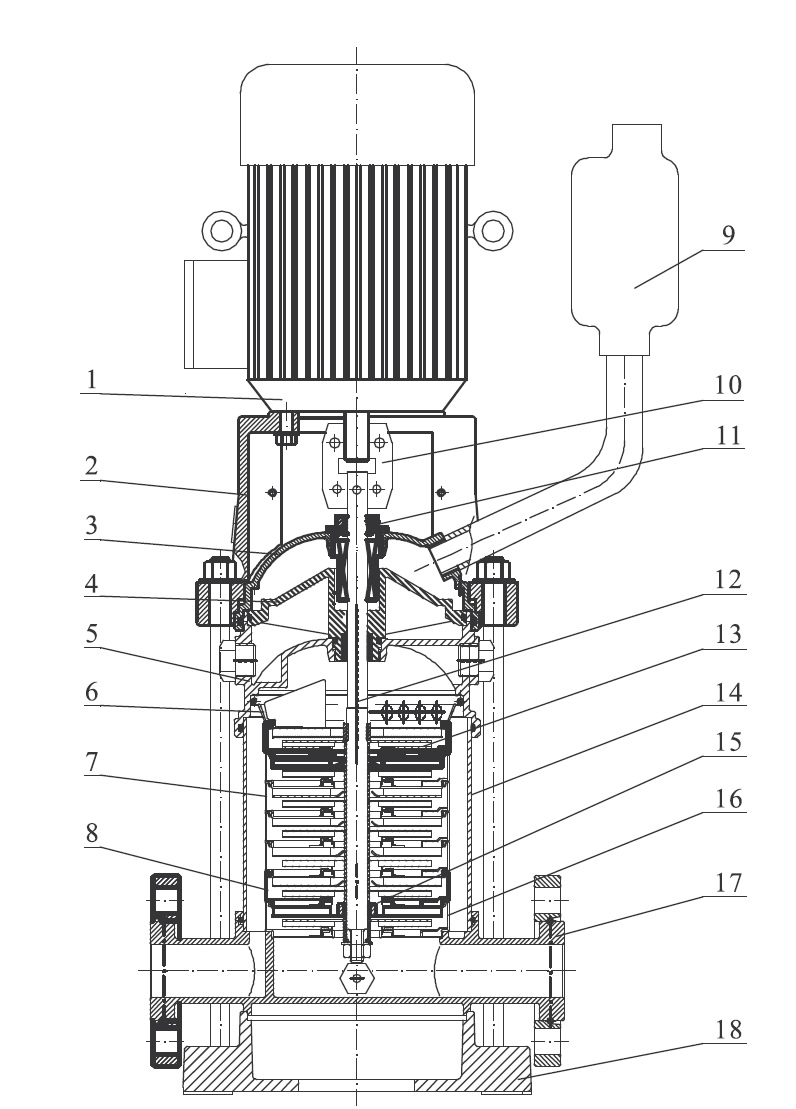

2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Motor Base | QT500 |
| 3 | Seal Cover | SUS304 |
| 4 | Lining | SUS304 |
| 5 | Pump Head | SUS304 |
| 6 | Top Diffuser | SUS304 |
| 7 | Diffuser | SUS304 |
| 8 | Support Diffuser | SUS304 |
| 9 | Exhaust Valve | Assembly |
| 10 | Coupling | QT500 |
| 11 | Mechanical Seal | Assembly |
| 12 | Shaft | SUS304 |
| 13 | Impeller | SUS304 |
| 14 | Cylinder | SUS304 |
| 15 | Bearing | TC |
| 16 | Support Diffuser | SUS304 |
| 17 | Pump Base | SUS304 |
| 18 | Base Plate | QT500 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 0.4 | 0.6 | 0.8 | 1 | 1.2 | 1.4 | 1.6 | 1.8 |
| PHT1-20 | 0.37 | H(m) | 13 | 12.5 | 12 | 11.5 | 11 | 10.5 | 10 | 9.5 |
| PHT1-30 | 0.37 | 19 | 18 | 17.5 | 17 | 16.5 | 16 | 15 | 14 | |
| PHT1-40 | 0.37 | 24 | 23.5 | 23 | 22.5 | 21.5 | 21 | 19 | 18 | |
| PHT1-50 | 0.37 | 30 | 29.6 | 29 | 28 | 27 | 26 | 24 | 22 | |
| PHT1-60 | 0.37 | 36 | 35.5 | 35 | 33.5 | 33 | 31 | 28 | 26 | |
| PHT1-70 | 0.37 | 42 | 41 | 40.5 | 39 | 38 | 36 | 33 | 30 | |
| PHT1-80 | 0.55 | 48 | 47 | 46 | 45 | 43 | 41 | 38 | 34 | |
| PHT1-90 | 0.55 | 54 | 53 | 52 | 51 | 49 | 46 | 43 | 39 | |
| PHT1-100 | 0.55 | 60 | 59 | 58 | 57 | 54 | 51 | 48 | 43 | |
| PHT1-110 | 0.55 | 66 | 65 | 63 | 61 | 59 | 56 | 52 | 47 | |
| PHT1-120 | 0.75 | 72 | 71 | 69 | 67 | 64 | 61 | 57 | 51 | |
| PHT1-130 | 0.75 | 78 | 77 | 75 | 73 | 69 | 66 | 62 | 55 | |
| PHT1-150 | 0.75 | 89 | 88 | 86 | 84 | 79 | 76 | 71 | 63 | |
| PHT1-170 | 1.1 | 101 | 99 | 97 | 95 | 89 | 86 | 80 | 71 | |
| PHT1-190 | 1.1 | 113 | 110 | 108 | 106 | 99 | 96 | 89 | 79 | |
| PHT1-210 | 1.1 | 124 | 122 | 120 | 117 | 110 | 106 | 98 | 87 | |
| PHT1-230 | 1.1 | 137 | 133 | 131 | 128 | 121 | 116 | 107 | 96 | |
| PHT1-250 | 1.5 | 149 | 145 | 143 | 139 | 131 | 126 | 116 | 104 | |
| PHT1-270 | 1.5 | 161 | 157 | 155 | 150 | 141 | 136 | 125 | 112 | |
| PHT1-300 | 1.5 | 178 | 175 | 171 | 166 | 157 | 150 | 139 | 124 | |
| PHT1-330 | 2.2 | 196 | 192 | 188 | 183 | 173 | 165 | 154 | 137 | |
| PHT1-360 | 2.2 | 214 | 210 | 205 | 200 | 190 | 181 | 169 | 151 |

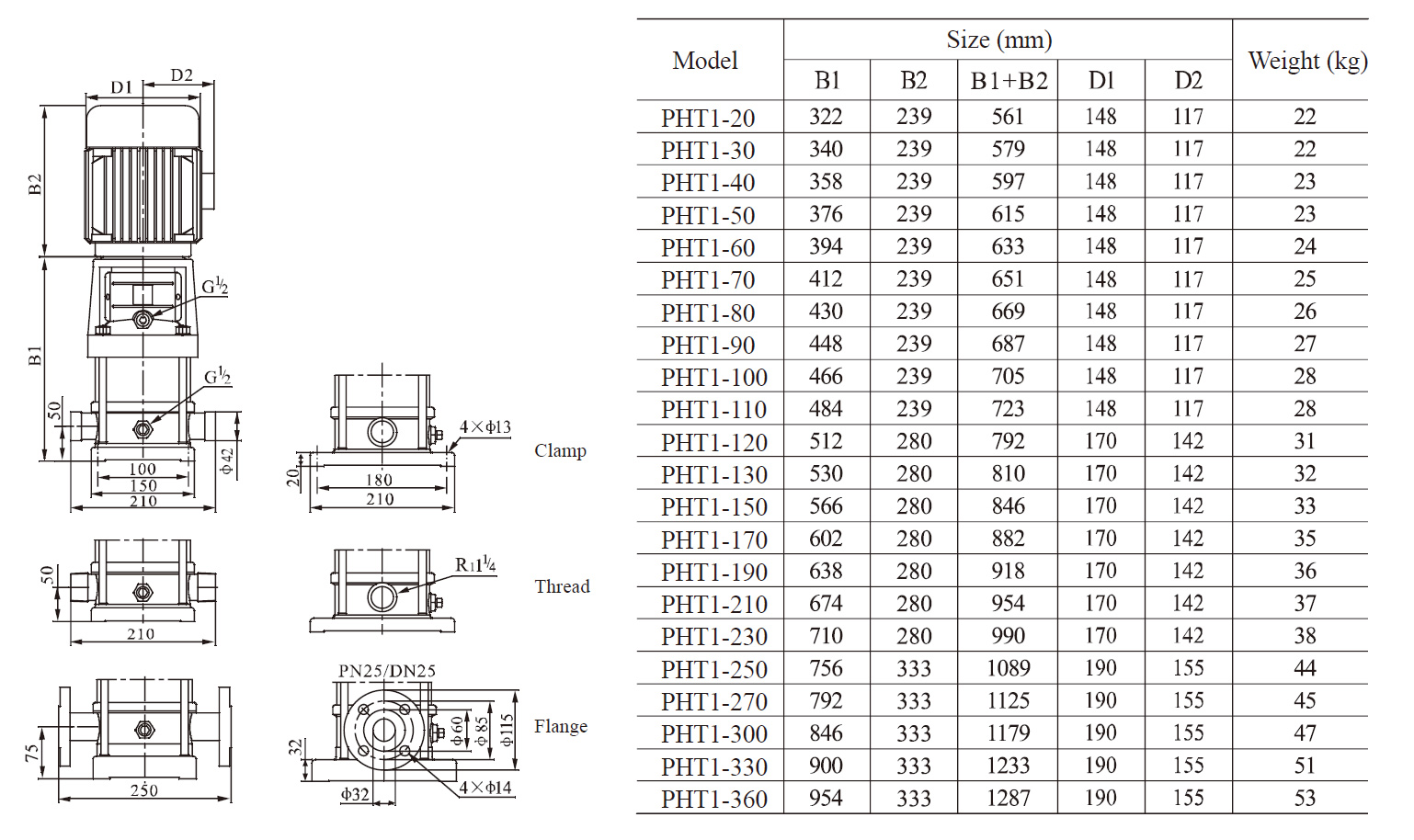

4. Dimensions and Weight:
@ 50Hz, 2900r/min
