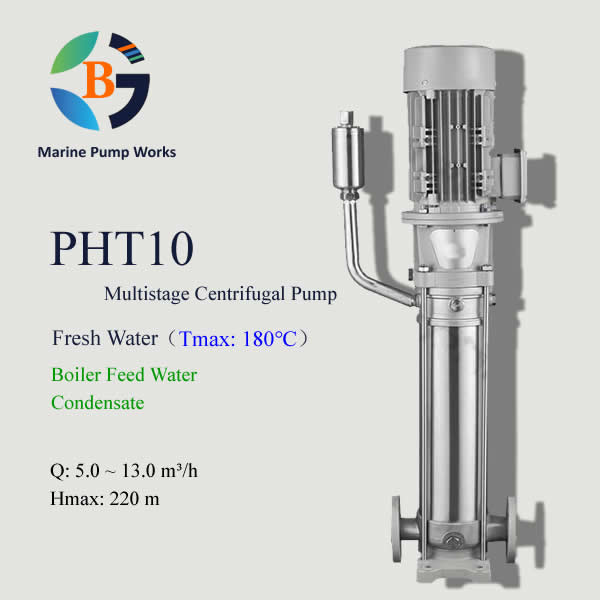

PHT10
Type: Vertical Multistage Centrifugal Pump
Stage: Multistage
Fluid: Fresh Water
Application: Boiler Feed Water/ Condensate Transfer
Q(@50Hz, 2900r/min): 5 ~ 13 m³/h
Hmax(@50Hz, 2900r/min): 222 m
Max. Temperature: 180 ℃
Inlet and Outlet Flange: DN40
Description
PHT10 high temperature multistage pump is centrifugal pump with flow rate Q: 5~13 m³/h @ 50Hz, 2900r/min and Max. temperature 180℃. It is designed to transfer fresh water, widely used for boiler feed water and condensate transfer.
1. Model Key
PHT10-180
- PHT – Industrial pump code
- 10 – Pump rated capacity is 10 m³/h
- 180 – Number of impellers is 18
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Motor Base | QT500 |
| 3 | Seal Cover | SUS304 |
| 4 | Lining | SUS304 |
| 5 | Pump Head | SUS304 |
| 6 | Top Diffuser | SUS304 |
| 7 | Diffuser | SUS304 |
| 8 | Support Diffuser | SUS304 |
| 9 | Exhaust Valve | Assembly |
| 10 | Coupling | QT500 |
| 11 | Mechanical Seal | Assembly |
| 12 | Shaft | SUS304 |
| 13 | Impeller | SUS304 |
| 14 | Cylinder | SUS304 |
| 15 | Bearing | TC |
| 16 | Support Diffuser | SUS304 |
| 17 | Pump Base | SUS304 |
| 18 | Base Plate | QT500 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 |
| PHT10-20 | 0.75 | H(m) | 18.5 | 17 | 16 | 14 | 13 | 12 | 10 | 8.5 | 7 |
| PHT10-30 | 1.1 | 30 | 28.5 | 27.5 | 25.5 | 24.5 | 22 | 20 | 18 | 14.5 | |
| PHT10-40 | 1.5 | 40.5 | 39.5 | 38.5 | 36.5 | 34 | 31.5 | 28.5 | 25.5 | 21 | |
| PHT10-50 | 2.2 | 50 | 49 | 47.5 | 45.5 | 42.5 | 39.5 | 36 | 32 | 27 | |
| PHT10-60 | 2.2 | 60 | 59 | 57 | 55 | 51 | 47.5 | 43.5 | 39 | 33.5 | |
| PHT10-70 | 3 | 70.5 | 69 | 66.5 | 64 | 59.5 | 55.5 | 50.5 | 45.5 | 39 | |
| PHT10-80 | 3 | 81 | 79 | 77 | 74.5 | 69 | 64 | 58.5 | 53 | 44.5 | |
| PHT10-90 | 3 | 91 | 89 | 86.5 | 82.5 | 78 | 72 | 66.5 | 59.5 | 50 | |
| PHT10-100 | 4 | 101.5 | 99 | 96.5 | 92.5 | 87.5 | 81.5 | 74 | 67 | 57 | |
| PHT10-120 | 4 | 120.5 | 119 | 114 | 110 | 104 | 97 | 88.5 | 80 | 68 | |
| PHT10-140 | 5.5 | 142 | 139 | 134.5 | 131 | 123 | 114 | 103.5 | 93.5 | 80 | |
| PHT10-160 | 5.5 | 162 | 159 | 154 | 148.5 | 139 | 130 | 119 | 107 | 91 | |
| PHT10-180 | 7.5 | 183 | 180 | 175 | 167 | 158 | 148 | 136 | 121 | 105 | |
| PHT10-200 | 7.5 | 203 | 200 | 195 | 186 | 176 | 165 | 151 | 134 | 118 | |
| PHT10-220 | 7.5 | 222 | 219 | 213 | 203 | 192 | 179 | 165 | 149 | 130 |

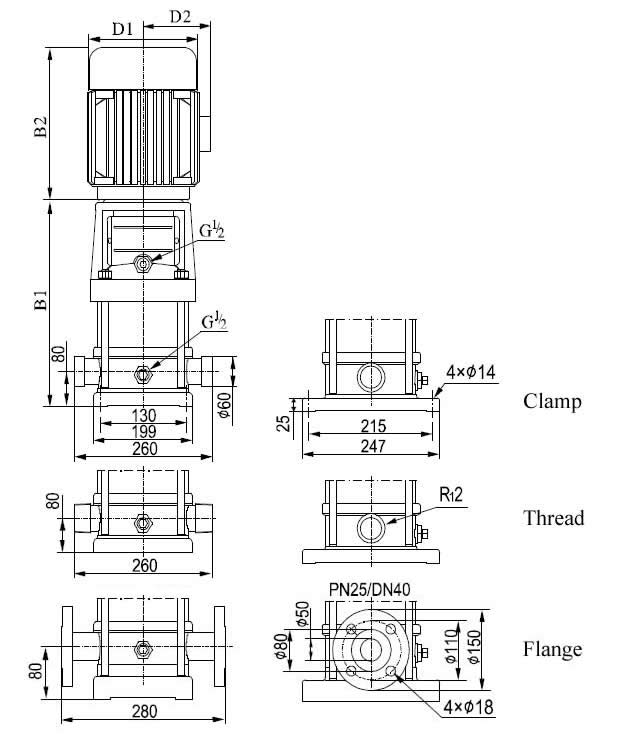

4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size(mm) | Weight (kg) | ||||
| Bl | B2 | Bl+B2 | D1 | D2 | ||
| PHT10-20 | 437 | 280 | 717 | 170 | 142 | 35 |
| PHT10-30 | 467 | 280 | 747 | 170 | 142 | 37 |
| PHT10-40 | 507 | 333 | 840 | 190 | 155 | 43 |
| PHT10-50 | 537 | 333 | 870 | 190 | 155 | 47 |
| PHT10-60 | 567 | 333 | 900 | 190 | 155 | 48 |
| PHT10-70 | 607 | 348 | 955 | 197 | 165 | 55 |
| PHT10-80 | 637 | 348 | 985 | 197 | 165 | 56 |
| PHT10-90 | 667 | 348 | 1015 | 197 | 165 | 57 |
| PHT10-100 | 697 | 382 | 1079 | 230 | 185 | 67 |
| PHT10-120 | 757 | 382 | 1139 | 230 | 185 | 69 |
| PHT10-140 | 837 | 435 | 1272 | 260 | 210 | 84 |
| PHT10-160 | 897 | 435 | 1332 | 260 | 210 | 85 |
| PHT10-180 | 957 | 435 | 1392 | 260 | 210 | 96 |
| PHT10-200 | 1017 | 435 | 1452 | 260 | 210 | 97 |
| PHT10-220 | 1077 | 435 | 1512 | 260 | 210 | 98 |
