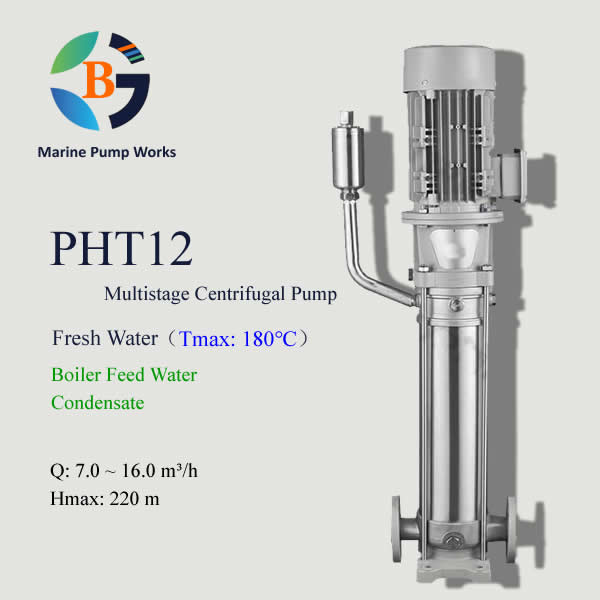

PHT12
Type: Vertical Multistage Centrifugal Pump
Stage: Multistage
Fluid: Fresh Water
Application: Boiler Feed Water/ Condensate Transfer
Q(@50Hz, 2900r/min): 7 ~ 16 m³/h
Hmax(@50Hz, 2900r/min): 217 m
Max. Temperature: 180 ℃
Inlet and Outlet Flange: DN50
Description
PHT12 high temperature multistage pump is centrifugal pump with flow rate Q: 7~16 m³/h @ 50Hz, 2900r/min and Max. temperature 180℃. It is designed to transfer fresh water, widely used for boiler feed water and condensate transfer.
1. Model Key
PHT12-120
- PHT – Industrial pump code
- 12 – Pump rated capacity is 12 m³/h
- 120 – Number of impellers is 12
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Motor Base | QT500 |
| 3 | Seal Cover | SUS304 |
| 4 | Lining | SUS304 |
| 5 | Pump Head | SUS304 |
| 6 | Top Diffuser | SUS304 |
| 7 | Diffuser | SUS304 |
| 8 | Support Diffuser | SUS304 |
| 9 | Exhaust Valve | Assembly |
| 10 | Coupling | QT500 |
| 11 | Mechanical Seal | Assembly |
| 12 | Shaft | SUS304 |
| 13 | Impeller | SUS304 |
| 14 | Cylinder | SUS304 |
| 15 | Bearing | TC |
| 16 | Support Diffuser | SUS304 |
| 17 | Pump Base | SUS304 |
| 18 | Base Plate | QT500 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| PHT12-20 | 1.5 | H(m) | 23.5 | 23 | 22.5 | 22 | 21 | 20 | 18.5 | 17 | 15.5 | 14 |
| PHT12-30 | 2.2 | 35.5 | 35 | 34 | 33 | 31.5 | 30 | 28 | 26 | 23.5 | 21 | |
| PHT12-40 | 3 | 47 | 46 | 45 | 44 | 42 | 40 | 37 | 34 | 31 | 28 | |
| PHT12-50 | 3 | 59.5 | 58 | 56.5 | 55 | 52.5 | 50 | 46.5 | 43 | 39 | 35 | |
| PHT12-60 | 4 | 71.5 | 70 | 68 | 66 | 63 | 60 | 56 | 52 | 47 | 42 | |
| PHT12-70 | 5.5 | 83.5 | 82 | 79.5 | 77 | 73.5 | 70 | 65.5 | 61 | 55 | 49 | |
| PHT12-80 | 5.5 | 95.5 | 94 | 91 | 88 | 84 | 80 | 75 | 70 | 63 | 56 | |
| PHT12-90 | 5.5 | 108 | 106 | 103 | 100 | 95.5 | 91 | 85 | 79 | 71.5 | 64 | |
| PHT12-100 | 7.5 | 120 | 118 | 114.5 | 111 | 106 | 101 | 94.5 | 88 | 80 | 72 | |
| PHT12-120 | 7.5 | 143.5 | 141 | 137 | 133 | 127 | 121 | 113.5 | 106 | 96 | 86 | |
| PHT12-140 | 11 | 168 | 165 | 160 | 155 | 148 | 141 | 132.5 | 124 | 112 | 100 | |
| PHT12-160 | 11 | 192.5 | 189 | 183.5 | 178 | 170 | 162 | 152 | 142 | 128.5 | 115 | |
| PHT12-180 | 11 | 217 | 213 | 207.5 | 202 | 192.5 | 183 | 171.5 | 160 | 145 | 130 |

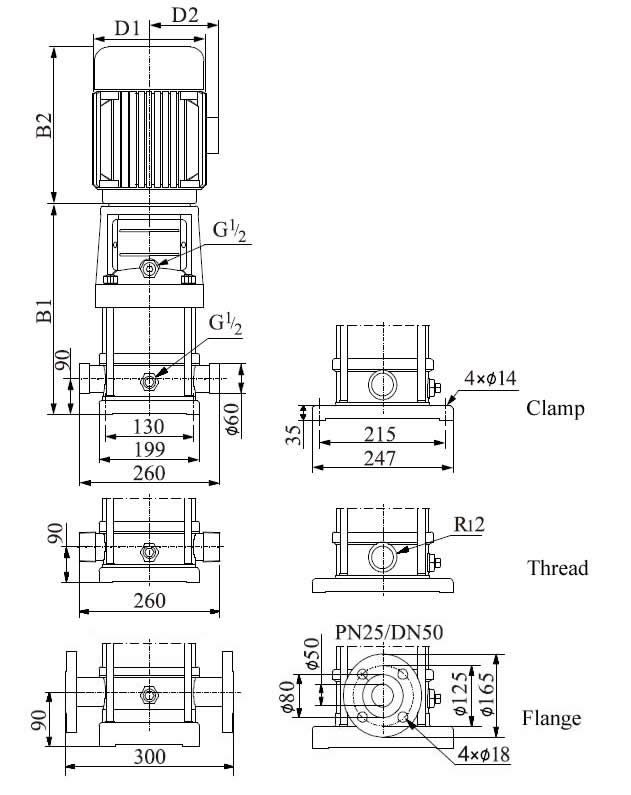

4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size(mm) | Weight (kg) | ||||
| Bl | B2 | Bl+B2 | D1 | D2 | ||
| PHT12-20 | 457 | 333 | 790 | 190 | 155 | 42 |
| PHT12-30 | 487 | 333 | 820 | 190 | l55 | 46 |
| PHT12-40 | 527 | 348 | 875 | 197 | 165 | 54 |
| PHT12-50 | 557 | 348 | 905 | 197 | 165 | 56 |
| PHT12-60 | 587 | 382 | 969 | 230 | 188 | 64 |
| PHT12-70 | 637 | 435 | 1072 | 260 | 208 | 76 |
| PHT12-80 | 667 | 435 | 1102 | 260 | 208 | 77 |
| PHT12-90 | 697 | 435 | 1132 | 260 | 208 | 79 |
| PHT12-100 | 727 | 435 | 1162 | 260 | 208 | 86 |
| PHT12-120 | 787 | 435 | 1222 | 260 | 208 | 90 |
| PHT12-140 | 935 | 580 | 1515 | 350 | 260 | 161 |
| PHT12-160 | 995 | 580 | 1575 | 350 | 260 | 164 |
| PHT12-180 | 1055 | 580 | 1635 | 350 | 260 | 167 |
