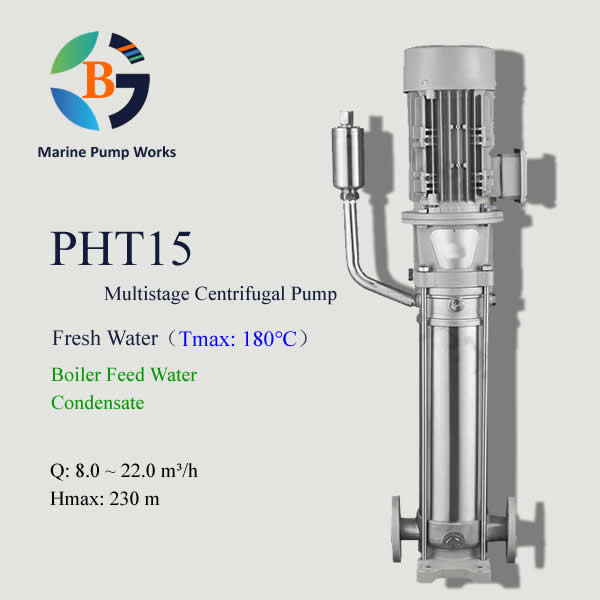

PHT15
Type: Vertical Multistage Centrifugal Pump
Stage: Multistage
Fluid: Fresh Water
Application: Boiler Feed Water/ Condensate Transfer
Q(@50Hz, 2900r/min): 8 ~ 22 m³/h
Hmax(@50Hz, 2900r/min): 227 m
Max. Temperature: 180 ℃
Inlet and Outlet Flange: DN50
Description
PHT15 high temperature multistage pump is centrifugal pump with flow rate Q: 8~22 m³/h @ 50Hz, 2900r/min and Max. temperature 180℃. It is designed to transfer fresh water, widely used for boiler feed water and condensate transfer.
1. Model Key
PHT15-80
- PHT – Industrial pump code
- 15 – Pump rated capacity is 15 m³/h
- 80 – Number of impellers is 8
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Motor Base | QT500 |
| 3 | Seal Cover | SUS304 |
| 4 | Lining | SUS304 |
| 5 | Pump Head | SUS304 |
| 6 | Top Diffuser | SUS304 |
| 7 | Diffuser | SUS304 |
| 8 | Support Diffuser | SUS304 |
| 9 | Exhaust Valve | Assembly |
| 10 | Coupling | QT500 |
| 11 | Mechanical Seal | Assembly |
| 12 | Shaft | SUS304 |
| 13 | Impeller | SUS304 |
| 14 | Cylinder | SUS304 |
| 15 | Bearing | TC |
| 16 | Support Diffuser | SUS304 |
| 17 | Pump Base | SUS304 |
| 18 | Base Plate | QT500 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 8 | 10 | 12 | 14 | 15 | 16 | 18 | 20 | 22 |
| PHT15-10 | 1.1 | H(m) | 13 | 12 | 11.5 | 10.5 | 10 | 9 | 7.5 | 6 | 4.5 |
| PHT15-20 | 2.2 | 26 | 25 | 24 | 23 | 22 | 20.5 | 18 | 16 | 13 | |
| PHT15-30 | 3 | 39.5 | 38.5 | 37.5 | 35.5 | 34.5 | 33.5 | 30.5 | 27 | 21 | |
| PHT15-40 | 4 | 53 | 51.5 | 50 | 47.5 | 46 | 44.5 | 41 | 36.5 | 29 | |
| PHT15-50 | 4 | 67 | 64.5 | 62.5 | 60 | 58 | 55.5 | 52 | 46 | 37 | |
| PHT15-60 | 5.5 | 80.5 | 78 | 76 | 73 | 70.5 | 68 | 63.5 | 57 | 46.5 | |
| PHT15-70 | 5.5 | 94 | 92 | 89.5 | 86 | 83.5 | 81 | 75.5 | 68.5 | 56.5 | |
| PHT15-80 | 7.5 | 107.5 | 106 | 102.5 | 98.5 | 96 | 93 | 86.5 | 78 | 64.5 | |
| PHT15-90 | 7.5 | 120 | 118 | 114.5 | 110 | 107 | 105 | 97 | 88 | 72 | |
| PHT15-100 | 11 | 134 | 132 | 128 | 123 | 120 | 116.5 | 108.5 | 98.5 | 82.5 | |
| PHT15-120 | 11 | 161 | 158 | 154 | 148 | 144 | 139 | 130 | 119 | 99 | |
| PHT15-140 | 11 | 186 | 183 | 178 | 172 | 167 | 162 | 152 | 139 | 116 | |
| PHT15-170 | l5 | 227 | 224 | 217 | 210 | 203 | 196 | 185 | 167 | 140 |

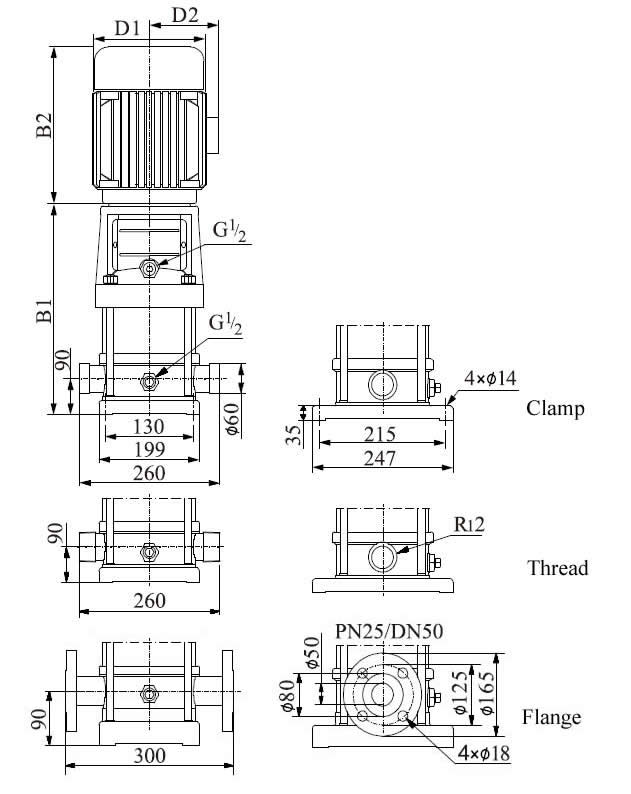

4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size(mm) | Weight (kg) | ||||
| Bl | B2 | Bl+B2 | D1 | D2 | ||
| PHT15-10 | 442 | 280 | 722 | 170 | 142 | 36 |
| PHT15-20 | 487 | 333 | 820 | 190 | 155 | 45 |
| PHT15-30 | 542 | 348 | 890 | 197 | 165 | 53 |
| PHT15-40 | 587 | 382 | 969 | 230 | 185 | 62 |
| PHT15-50 | 632 | 382 | 1014 | 230 | 185 | 63 |
| PHT15-60 | 697 | 435 | 1132 | 260 | 210 | 80 |
| PHT15-70 | 742 | 435 | 1177 | 260 | 210 | 81 |
| PHT15-80 | 787 | 435 | 1222 | 260 | 210 | 89 |
| PHT15-90 | 832 | 435 | 1267 | 260 | 210 | 90 |
| PHT15-100 | 965 | 580 | 1545 | 350 | 260 | 163 |
| PHT15-120 | 1055 | 580 | 1635 | 350 | 260 | 164 |
| PHT15-140 | 1145 | 580 | 1725 | 350 | 260 | 165 |
| PHT15-170 | 1280 | 580 | 1860 | 350 | 260 | 182 |
