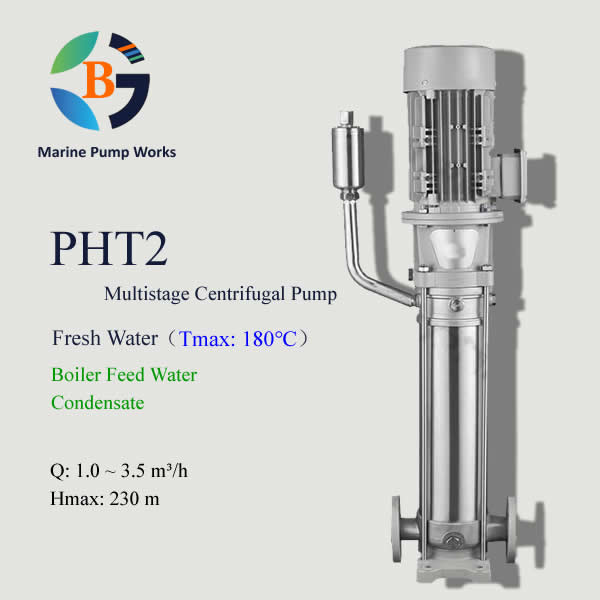

PHT2
Type: Vertical Multistage Centrifugal Pump
Stage: Multistage
Fluid: Fresh Water
Application: Boiler Feed Water/ Condensate Transfer
Q(@50Hz, 2900r/min): 1.0 ~ 3.5 m³/h
Hmax(@50Hz, 2900r/min): 232 m
Max. Temperature: 180 ℃
Inlet and Outlet Flange: DN25
Description
PHT2 high temperature multistage pump is centrifugal pump with flow rate Q: 1.0~3.5 m³/h @ 50Hz, 2900r/min and Max. temperature 180℃. It is designed to transfer fresh water, widely used for boiler feed water and condensate transfer.
1. Model Key
PHT2-150
- PHT – Industrial pump code
- 2 – Pump rated capacity is 2 m³/h
- 150 – Number of impellers is 15
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Motor Base | QT500 |
| 3 | Seal Cover | SUS304 |
| 4 | Lining | SUS304 |
| 5 | Pump Head | SUS304 |
| 6 | Top Diffuser | SUS304 |
| 7 | Diffuser | SUS304 |
| 8 | Support Diffuser | SUS304 |
| 9 | Exhaust Valve | Assembly |
| 10 | Coupling | QT500 |
| 11 | Mechanical Seal | Assembly |
| 12 | Shaft | SUS304 |
| 13 | Impeller | SUS304 |
| 14 | Cylinder | SUS304 |
| 15 | Bearing | TC |
| 16 | Support Diffuser | SUS304 |
| 17 | Pump Base | SUS304 |
| 18 | Base Plate | QT500 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 1 | 1.2 | 1.6 | 2 | 2.4 | 2.8 | 3.2 | 3.5 |
| PHT2-20 | 0.37 | H(m) | 18 | 17 | 16 | 15 | 13 | 12 | 10 | 8 |
| PHT2-30 | 0.37 | 27 | 26 | 24 | 22 | 20 | 18 | 15 | 12 | |
| PHT2-40 | 0.55 | 36 | 35 | 33 | 30 | 26 | 24 | 20 | 16 | |
| PHT2-50 | 0.55 | 45 | 43 | 40 | 37 | 33 | 30 | 24 | 20 | |
| PHT2-60 | 0.75 | 53 | 52 | 50 | 45 | 40 | 36 | 30 | 24 | |
| PHT2-70 | 0.75 | 63 | 61 | 51 | 52 | 47 | 41 | 35 | 28 | |
| PHT2-90 | 1.1 | 80 | 78 | 73 | 67 | 61 | 54 | 45 | 37 | |
| PHT2-110 | 1.1 | 98 | 95 | 89 | 82 | 73 | 64 | 54 | 44 | |
| PHT2-130 | 1.5 | 116 | 114 | 106 | 98 | 89 | 78 | 65 | 52 | |
| PHT2-150 | 1.5 | 134 | 130 | 123 | 112 | 100 | 90 | 73 | 60 | |
| PHT2-180 | 2.2 | 161 | 157 | 148 | 136 | 121 | 108 | 91 | 76 | |
| PHT2-220 | 2.2 | 197 | 192 | 180 | 165 | 148 | 130 | 110 | 90 | |
| PHT2-260 | 3 | 232 | 228 | 214 | 198 | 179 | 158 | 130 | 110 |

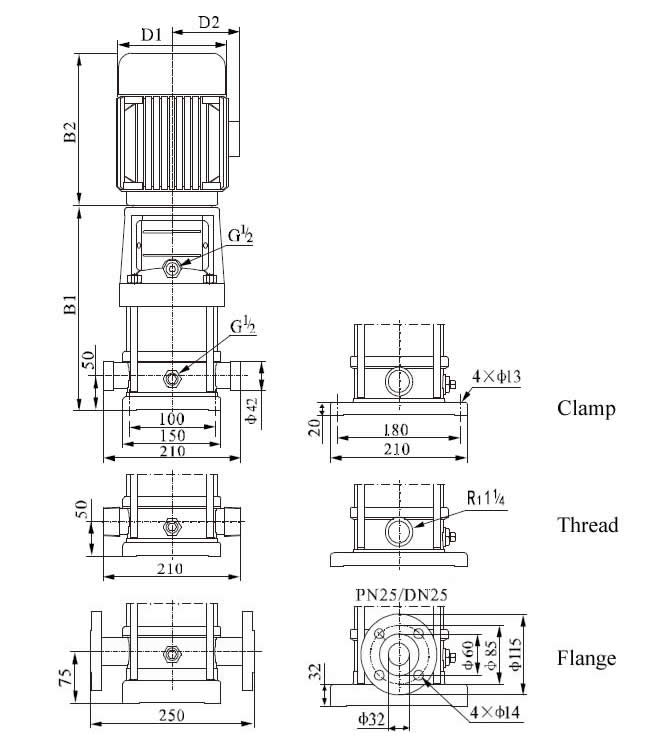

4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size(mm) | Weight (kg) | ||||
| Bl | B2 | Bl+B2 | D1 | D2 | ||
| PHT2-20 | 322 | 239 | 561 | 148 | 117 | 22 |
| PHT2-30 | 340 | 239 | 579 | 148 | 117 | 22 |
| PHT2-40 | 358 | 239 | 597 | 148 | 117 | 24 |
| PHT2-50 | 376 | 239 | 615 | 148 | 117 | 25 |
| PHT2-60 | 404 | 280 | 684 | 170 | 142 | 28 |
| PHT2-70 | 422 | 280 | 702 | 170 | 142 | 28 |
| PHT2-90 | 458 | 280 | 738 | 170 | 142 | 30 |
| PHT2-110 | 494 | 280 | 774 | 170 | 142 | 31 |
| PHT2-130 | 540 | 333 | 873 | 190 | 155 | 37 |
| PHT2-150 | 576 | 333 | 909 | 190 | 155 | 38 |
| PHT2-180 | 630 | 333 | 963 | 190 | 155 | 43 |
| PHT2-220 | 702 | 333 | 1035 | 190 | 155 | 44 |
| PHT2-260 | 784 | 348 | 1132 | 197 | 165 | 54 |
