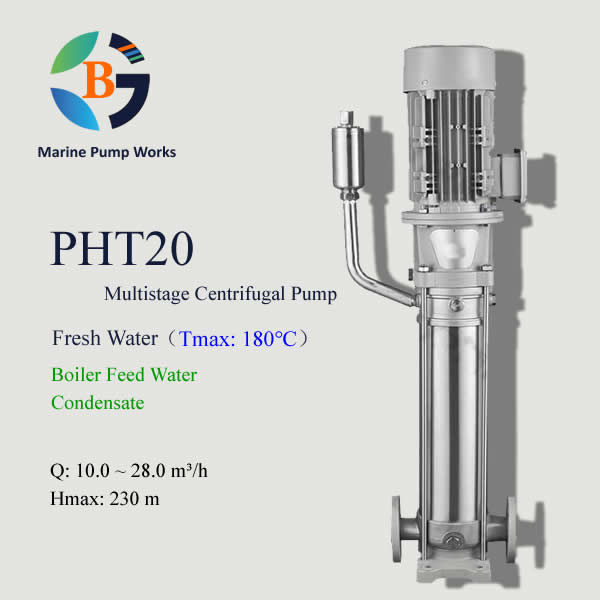

PHT20
Type: Vertical Multistage Centrifugal Pump
Stage: Multistage
Fluid: Fresh Water
Application: Boiler Feed Water/ Condensate Transfer
Q(@50Hz, 2900r/min): 10 ~ 28 m³/h
Hmax(@50Hz, 2900r/min): 234 m
Max. Temperature: 180 ℃
Inlet and Outlet Flange: DN50
Description
PHT20 high temperature multistage pump is centrifugal pump with flow rate Q: 10~28 m³/h @ 50Hz, 2900r/min and Max. temperature 180℃. It is designed to transfer fresh water, widely used for boiler feed water and condensate transfer.
1. Model Key
PHT20-60
- PHT – Industrial pump code
- 20 – Pump rated capacity is 20 m³/h
- 60 – Number of impellers is 6
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Motor Base | QT500 |
| 3 | Seal Cover | SUS304 |
| 4 | Lining | SUS304 |
| 5 | Pump Head | SUS304 |
| 6 | Top Diffuser | SUS304 |
| 7 | Diffuser | SUS304 |
| 8 | Support Diffuser | SUS304 |
| 9 | Exhaust Valve | Assembly |
| 10 | Coupling | QT500 |
| 11 | Mechanical Seal | Assembly |
| 12 | Shaft | SUS304 |
| 13 | Impeller | SUS304 |
| 14 | Cylinder | SUS304 |
| 15 | Bearing | TC |
| 16 | Support Diffuser | SUS304 |
| 17 | Pump Base | SUS304 |
| 18 | Base Plate | QT500 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 |
| PHT20-10 | 1.1 | H(m) | 13.5 | 13 | 12.5 | 12 | 11 | 10 | 9 | 8 | 7 | 6 |
| PHT20-20 | 2.2 | 27 | 26.5 | 26 | 25 | 24 | 23 | 22 | 20 | 18 | 15 | |
| PHT20-30 | 4 | 40 | 39.5 | 39 | 38 | 37 | 35 | 33 | 30 | 27 | 24 | |
| PHT20-40 | 5.5 | 54 | 53 | 52 | 51 | 49 | 47 | 44 | 41 | 37 | 33 | |
| PHT20-50 | 5.5 | 67 | 66 | 64 | 62 | 60 | 58 | 55 | 50 | 45 | 40 | |
| PHT20-60 | 7.5 | 81 | 79 | 77 | 75 | 73 | 70 | 66 | 61 | 55 | 49 | |
| PHT20-70 | 7.5 | 95 | 93 | 91 | 89 | 86 | 82 | 77 | 71 | 65 | 58 | |
| PHT20-80 | 11 | 109 | 107 | 105 | 102 | 99 | 94 | 89 | 82 | 75 | 67 | |
| PHT20-100 | 11 | 136 | 134 | 131 | 128 | 124 | 118 | 111 | 103 | 95 | 85 | |
| PHT20-120 | 15 | 164 | 162 | 158 | 154 | 149 | 142 | 133 | 124 | 114 | 102 | |
| PHT20-140 | 15 | 192 | 189 | 185 | 180 | 174 | 166 | 156 | 145 | 133 | 119 | |
| PHT20-170 | 18.5 | 234 | 230 | 225 | 219 | 212 | 202 | 190 | 177 | 162 | 145 |

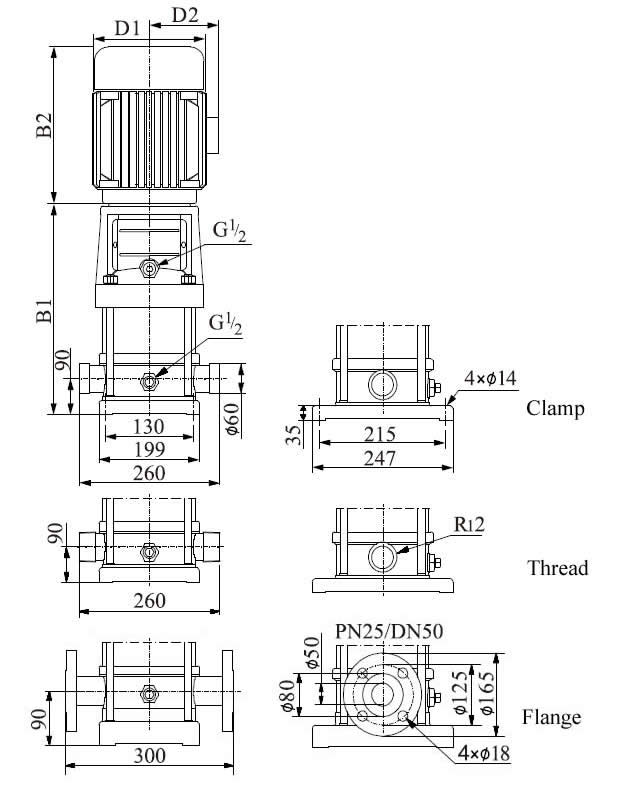

4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size(mm) | Weight (kg) | ||||
| Bl | B2 | Bl+B2 | D1 | D2 | ||
| PHT20-10 | 477 | 280 | 757 | 170 | 142 | 36 |
| PHT20-20 | 487 | 333 | 820 | 190 | 155 | 45 |
| PHT20-30 | 542 | 382 | 924 | 230 | 188 | 61 |
| PHT20-40 | 607 | 435 | 1042 | 260 | 208 | 77 |
| PHT20-50 | 652 | 435 | 1087 | 260 | 208 | 79 |
| PHT20-60 | 697 | 435 | 1132 | 260 | 208 | 85 |
| PHT20-70 | 742 | 435 | 1177 | 260 | 208 | 87 |
| PHT20-80 | 875 | 580 | 1455 | 330 | 255 | 156 |
| PHT20-100 | 965 | 580 | 1545 | 350 | 260 | 160 |
| PHT20-120 | 1055 | 580 | 1635 | 350 | 260 | 173 |
| PHT20-140 | 1145 | 580 | 1725 | 350 | 260 | 175 |
| PHT20-170 | 1280 | 610 | 1890 | 350 | 260 | 198 |
