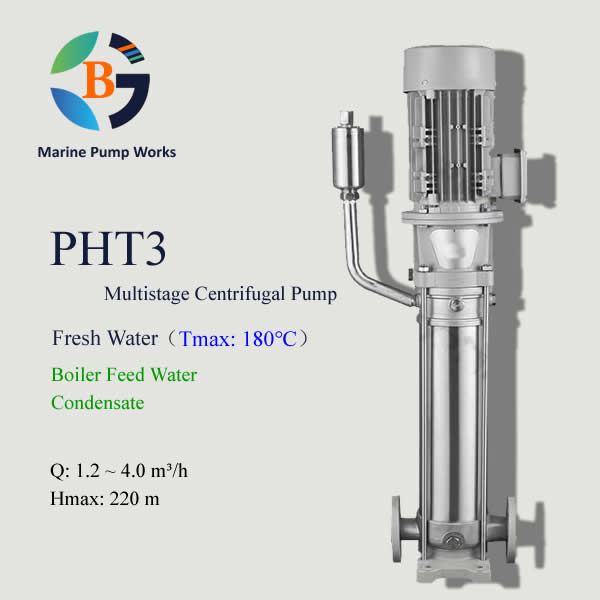

PHT3
Type: Vertical Multistage Centrifugal Pump
Stage: Multistage
Fluid: Fresh Water
Application: Boiler Feed Water/ Condensate Transfer
Q(@50Hz, 2900r/min): 1.2 ~ 4.0 m³/h
Hmax(@50Hz, 2900r/min): 218 m
Max. Temperature: 180 ℃
Inlet and Outlet Flange: DN25
Description
PHT3 high temperature multistage pump is centrifugal pump with flow rate Q: 1.2~4.0 m³/h @ 50Hz, 2900r/min and Max. temperature 180℃. It is designed to transfer fresh water, widely used for boiler feed water and condensate transfer.
1. Model Key
PHT3-190
- PHT – Industrial pump code
- 3 – Pump rated capacity is 3 m³/h
- 190 – Number of impellers is 19
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Motor Base | QT500 |
| 3 | Seal Cover | SUS304 |
| 4 | Lining | SUS304 |
| 5 | Pump Head | SUS304 |
| 6 | Top Diffuser | SUS304 |
| 7 | Diffuser | SUS304 |
| 8 | Support Diffuser | SUS304 |
| 9 | Exhaust Valve | Assembly |
| 10 | Coupling | QT500 |
| 11 | Mechanical Seal | Assembly |
| 12 | Shaft | SUS304 |
| 13 | Impeller | SUS304 |
| 14 | Cylinder | SUS304 |
| 15 | Bearing | TC |
| 16 | Support Diffuser | SUS304 |
| 17 | Pump Base | SUS304 |
| 18 | Base Plate | QT500 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 1.2 | 1.6 | 2 | 2.4 | 2.8 | 3 | 3.2 | 3.6 | 4 |
| PHT3-20 | 0.37 | H(m) | 12.5 | 11.5 | 11 | 10.5 | 10 | 9 | 8 | 7 | 6 |
| PHT3-30 | 0.37 | 19 | 18.5 | 17.S | 16.S | 15 | 14 | 13 | 11 | 9 | |
| PHT3-40 | 0.37 | 25 | 24 | 23 | 21.S | 20 | 19 | 18 | 15 | 12 | |
| PHT3-50 | 0.37 | 31 | 30 | 29 | 27 | 25 | 23 | 22 | 19 | 16 | |
| PHT3-60 | 0.55 | 36 | 35 | 34 | 32 | 30 | 28 | 27 | 23 | 19 | |
| PHT3-70 | 0.55 | 43 | 41 | 39 | 37 | 34 | 32 | 31 | 27 | 22 | |
| PHT3-80 | 0.75 | 49 | 47 | 45 | 43 | 39 | 37 | 35 | 31 | 25 | |
| PHT3-90 | 0.75 | 55 | 53 | 51 | 48 | 45 | 42 | 40 | 35 | 28 | |
| PHT3-100 | 0.75 | 61 | 59 | 57 | 54 | 50 | 47 | 45 | 39 | 31 | |
| PHT3-110 | 1.1 | 67 | 64 | 61 | 58 | 54 | 51 | 49 | 42 | 34 | |
| PHT3-120 | 1.1 | 73 | 70 | 67 | 63 | 58 | 55 | 52 | 45 | 37 | |
| PHT3-130 | 1.1 | 78 | 76 | 73 | 69 | 64 | ω | 57 | 49 | 40 | |
| PHT3-150 | 1.1 | 90 | 88 | 84 | 79 | 73 | 69 | 66 | 57 | 46 | |
| PHT3-170 | 1.5 | 103 | 100 | 96 | 90 | 83 | 79 | 75 | 64 | 52 | |
| PHT3-190 | 1.5 | 115 | 112 | 107 | 100 | 92 | 88 | 83 | 72 | 58 | |
| PHT3-210 | 2.2 | 128 | 124 | 119 | 112 | 102 | 98 | 91 | 79 | 64 | |
| PHT3-230 | 2.2 | 140 | 135 | 130 | 122 | 112 | 107 | 100 | 86 | 70 | |
| PHT3-250 | 2.2 | 151 | 147 | 141 | 131 | 122 | 116 | 109 | 94 | 76 | |
| PHT3-270 | 2.2 | 164 | 159 | 152 | 143 | 132 | 124 | 117 | 101 | 82 | |
| PHT3-290 | 2.2 | 175 | 170 | 163 | 153 | 142 | 133 | 126 | 109 | 88 | |
| PHT3-310 | 3 | 187 | 182 | 175 | 165 | 153 | 142 | 135 | 116 | 94 | |
| PHT3-330 | 3 | 199 | 194 | 187 | 176 | 163 | 151 | 145 | 125 | 100 | |
| PHT3-360 | 3 | 218 | 212 | 204 | 192 | 178 | 168 | 159 | 137 | 109 |

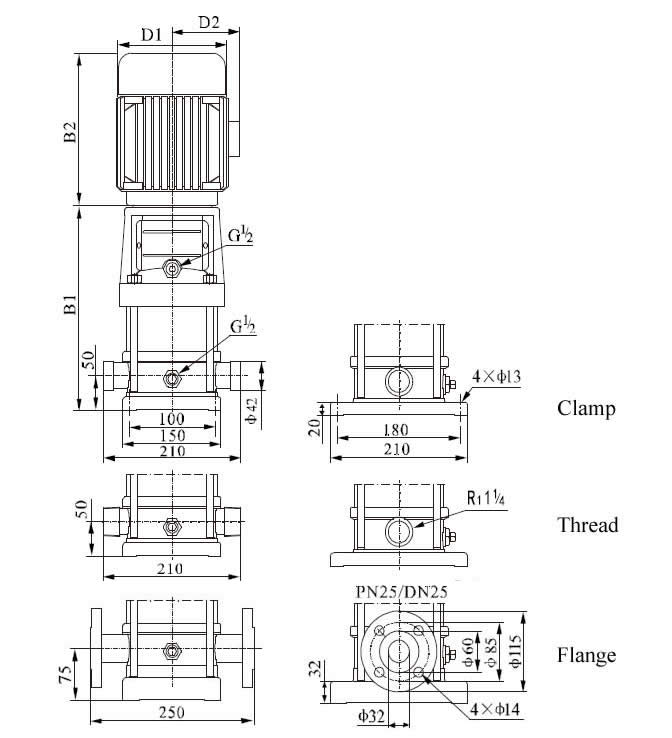

4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size(mm) | Weight (kg) | ||||
| Bl | B2 | Bl+B2 | D1 | D2 | ||
| PHT3-20 | 322 | 239 | 561 | 148 | 117 | 22 |
| PHT3-30 | 340 | 239 | 579 | 148 | 117 | 22 |
| PHT3-40 | 358 | 239 | 597 | 148 | 117 | 23 |
| PHT3-50 | 376 | 239 | 615 | 148 | 117 | 23 |
| PHT3-60 | 394 | 239 | 633 | 148 | 117 | 25 |
| PHT3-70 | 412 | 239 | 651 | 148 | 117 | 26 |
| PHT3-80 | 440 | 280 | 720 | 170 | 142 | 29 |
| PHT3-90 | 458 | 280 | 738 | 170 | 142 | 30 |
| PHT3-100 | 476 | 280 | 756 | 170 | 142 | 30 |
| PHT3-110 | 494 | 280 | 774 | 170 | 142 | 31 |
| PHT3-120 | 512 | 280 | 792 | 170 | 142 | 32 |
| PHT3-130 | 530 | 280 | 810 | 170 | 142 | 33 |
| PHT3-150 | 566 | 280 | 846 | 170 | 142 | 34 |
| PHT3-170 | 612 | 333 | 945 | 190 | 155 | 40 |
| PHT3-190 | 648 | 333 | 981 | 190 | 155 | 41 |
| PHT3-210 | 684 | 333 | 1017 | 190 | 155 | 44 |
| PHT3-230 | 720 | 333 | 1053 | 190 | 155 | 45 |
| PHT3-250 | 756 | 333 | 1089 | 190 | 155 | 46 |
| PHT3-270 | 792 | 333 | 1125 | 190 | 155 | 47 |
| PHT3-290 | 828 | 333 | 1161 | 190 | 155 | 48 |
| PHT3-310 | 874 | 348 | 1222 | 197 | 165 | 56 |
| PHT3-330 | 910 | 348 | 1258 | 197 | 165 | 57 |
| PHT3-360 | 964 | 348 | 1312 | 197 | 165 | 59 |
