PHT5
Type: Vertical Multistage Centrifugal Pump
Stage: Multistage
Fluid: Fresh Water
Application: Boiler Feed Water/ Condensate Transfer
Q(@50Hz, 2900r/min): 2.5 ~ 8.5 m³/h
Hmax(@50Hz, 2900r/min): 232 m
Max. Temperature: 180 ℃
Inlet and Outlet Flange: DN32
Description
PHT5 high temperature multistage pump is centrifugal pump with flow rate Q: 2.5~8.5 m³/h @ 50Hz, 2900r/min and Max. temperature 180℃. It is designed to transfer fresh water, widely used for boiler feed water and condensate transfer.
1. Model Key
PHT5-200
- PHT – Industrial pump code
- 5 – Pump rated capacity is 5 m³/h
- 200 – Number of impellers is 20
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Motor Base | QT500 |
| 3 | Seal Cover | SUS304 |
| 4 | Lining | SUS304 |
| 5 | Pump Head | SUS304 |
| 6 | Top Diffuser | SUS304 |
| 7 | Diffuser | SUS304 |
| 8 | Support Diffuser | SUS304 |
| 9 | Exhaust Valve | Assembly |
| 10 | Coupling | QT500 |
| 11 | Mechanical Seal | Assembly |
| 12 | Shaft | SUS304 |
| 13 | Impeller | SUS304 |
| 14 | Cylinder | SUS304 |
| 15 | Bearing | TC |
| 16 | Support Diffuser | SUS304 |
| 17 | Pump Base | SUS304 |
| 18 | Base Plate | QT500 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 2.5 | 4 | 5 | 6 | 7 | 8.5 |
| PHT5-20 | 0.37 | H(m) | 12.5 | 11.5 | 10.5 | 9 | 7 | 3.5 |
| PHT5-30 | 0.55 | 19.5 | 17.5 | 15.5 | 13.5 | 11 | 6 | |
| PHT5-40 | 0.55 | 26 | 23.5 | 21 | 18.5 | 15 | 8.5 | |
| PHT5-50 | 0.75 | 32.5 | 29.5 | 26.5 | 23 | 18.5 | 11 | |
| PHT5-60 | 1.1 | 38.5 | 34.5 | 31.5 | 28 | 23 | 14 | |
| PHT5-80 | 1.1 | 50.5 | 46 | 42.5 | 38 | 31.5 | 20 | |
| PHT5-100 | 1.5 | 63.5 | 58.5 | 54 | 48 | 41 | 27.5 | |
| PHT5-120 | 2.2 | 76 | 71 | 65.5 | 58.5 | 50.5 | 35 | |
| PHT5-140 | 2.2 | 89 | 82 | 76.5 | 68 | 58.5 | 40 | |
| PHT5-160 | 2.2 | 101 | 94 | 87 | 77.5 | 66.5 | 46 | |
| PHT5-180 | 3 | 115 | 107 | 99 | 88.5 | 77 | 53 | |
| PHT5-200 | 3 | 129 | 120 | 112 | 100 | 87 | 62 | |
| PHT5-220 | 4 | 142 | 132 | 123 | 111 | 96 | 69 | |
| PHT5-240 | 4 | 156 | 144 | 134 | 121 | 105 | 75.5 | |
| PHT5-260 | 4 | 169 | 157 | 145 | 131 | 113 | 81 | |
| PHT5-290 | 4 | 189 | 175 | 162 | 146 | 125 | 88 | |
| PHT5-320 | 5.5 | 209 | 194 | 180 | 162 | 141 | 102 | |
| PHT5-360 | 5.5 | 232 | 216 | 201 | 181 | 158 | 114 |

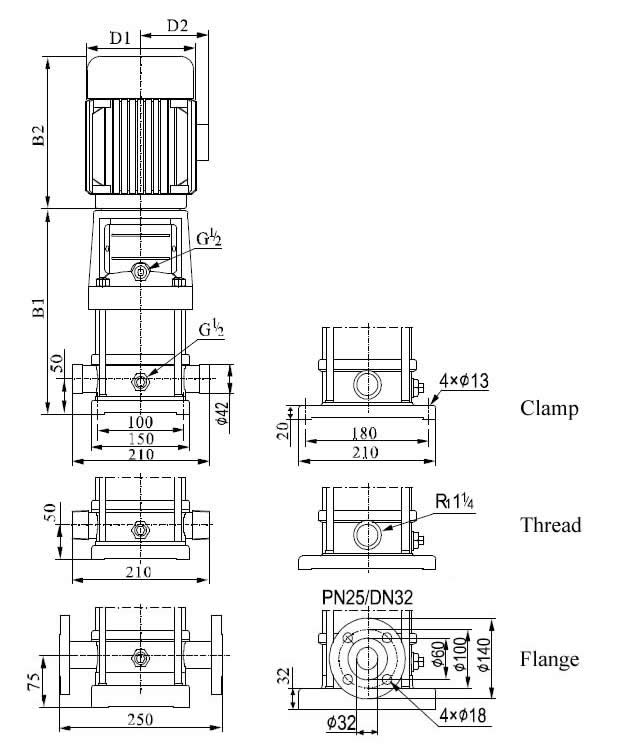

4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size(mm) | Weight (kg) | ||||
| Bl | B2 | Bl+B2 | D1 | D2 | ||
| PHT5-20 | 340 | 239 | 579 | 148 | 117 | 23 |
| PHT5-30 | 367 | 239 | 606 | 148 | 117 | 24 |
| PHT5-40 | 394 | 239 | 633 | 148 | 117 | 25 |
| PHT5-50 | 431 | 280 | 711 | 170 | 142 | 27 |
| PHT5-60 | 458 | 280 | 738 | 170 | 142 | 28 |
| PHT5-80 | 512 | 280 | 792 | 170 | 142 | 29 |
| PHTS-100 | 576 | 333 | 909 | 190 | 155 | 35 |
| PHT5-120 | 630 | 333 | 963 | 190 | 155 | 39 |
| PHTS-140 | 684 | 333 | 1017 | 190 | 155 | 40 |
| PHT5-160 | 738 | 333 | 1071 | 190 | 155 | 41 |
| PHT5-180 | 802 | 348 | 1150 | 197 | 165 | 50 |
| PHT5-200 | 856 | 348 | 1204 | 197 | 165 | 51 |
| PHT5-220 | 910 | 382 | 1292 | 230 | 185 | 59 |
| PHT5-240 | 964 | 382 | 1346 | 230 | 185 | 60 |
| PHT5-260 | 1018 | 382 | 1400 | 230 | 185 | 61 |
| PHT5-290 | 1099 | 382 | 1481 | 230 | 185 | 62 |
| PHTS-320 | 1200 | 435 | 1635 | 260 | 210 | 77 |
| PHT5-360 | 1308 | 435 | 1743 | 260 | 210 | 78 |
