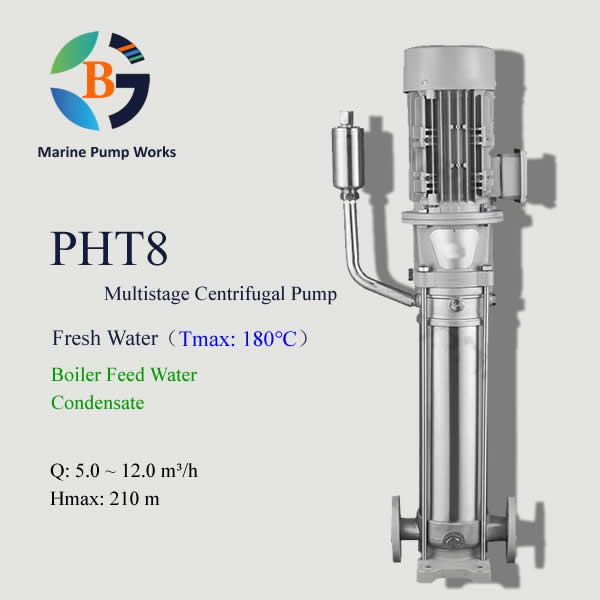

PHT8
Type: Vertical Multistage Centrifugal Pump
Stage: Multistage
Fluid: Fresh Water
Application: Boiler Feed Water/ Condensate Transfer
Q(@50Hz, 2900r/min): 5 ~ 12 m³/h
Hmax(@50Hz, 2900r/min): 208 m
Max. Temperature: 180 ℃
Inlet and Outlet Flange: DN40
Description
PHT8 high temperature multistage pump is centrifugal pump with flow rate Q: 5~12 m³/h @ 50Hz, 2900r/min and Max. temperature 180℃. It is designed to transfer fresh water, widely used for boiler feed water and condensate transfer.
1. Model Key
PHT8-160
- PHT – Industrial pump code
- 8 – Pump rated capacity is 8 m³/h
- 160 – Number of impellers is 16
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Motor Base | QT500 |
| 3 | Seal Cover | SUS304 |
| 4 | Lining | SUS304 |
| 5 | Pump Head | SUS304 |
| 6 | Top Diffuser | SUS304 |
| 7 | Diffuser | SUS304 |
| 8 | Support Diffuser | SUS304 |
| 9 | Exhaust Valve | Assembly |
| 10 | Coupling | QT500 |
| 11 | Mechanical Seal | Assembly |
| 12 | Shaft | SUS304 |
| 13 | Impeller | SUS304 |
| 14 | Cylinder | SUS304 |
| 15 | Bearing | TC |
| 16 | Support Diffuser | SUS304 |
| 17 | Pump Base | SUS304 |
| 18 | Base Plate | QT500 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| PHT8-20 | 0.75 | H(m) | 20 | 19.5 | 19 | 18 | 17 | 16 | 14 | 13 |
| PHT8-30 | 1.1 | 30 | 29.5 | 28.5 | 27 | 25 | 24 | 21 | 19 | |
| PHT8-40 | 1.5 | 41 | 39.5 | 38 | 36 | 34 | 32 | 28 | 26 | |
| PHT8-50 | 2.2 | 52 | 50 | 48 | 45 | 42 | 40 | 36 | 32 | |
| PHT8-60 | 2.2 | 62 | 60 | 57 | 54 | 51 | 48 | 43 | 39 | |
| PHT8-80 | 3 | 83 | 80 | 77 | 73 | 69 | 65 | 58 | 52 | |
| PHT8-100 | 4 | 104 | 100 | 97 | 92 | 87 | 81 | 73 | 65 | |
| PHT8-120 | 4 | 124 | 120 | 116 | 111 | 104 | 92 | 87 | 78 | |
| PHT8-140 | 5.5 | 145 | 141 | 136 | 130 | 122 | 113 | 102 | 92 | |
| PHT8-160 | 5.5 | 166 | 161 | 156 | 148 | 139 | 130 | 118 | 106 | |
| PHT8-180 | 7.5 | 187 | 182 | 175 | 167 | 157 | 146 | 134 | 120 | |
| PHT8-200 | 7.5 | 208 | 202 | 195 | 186 | 175 | 163 | 150 | 135 |

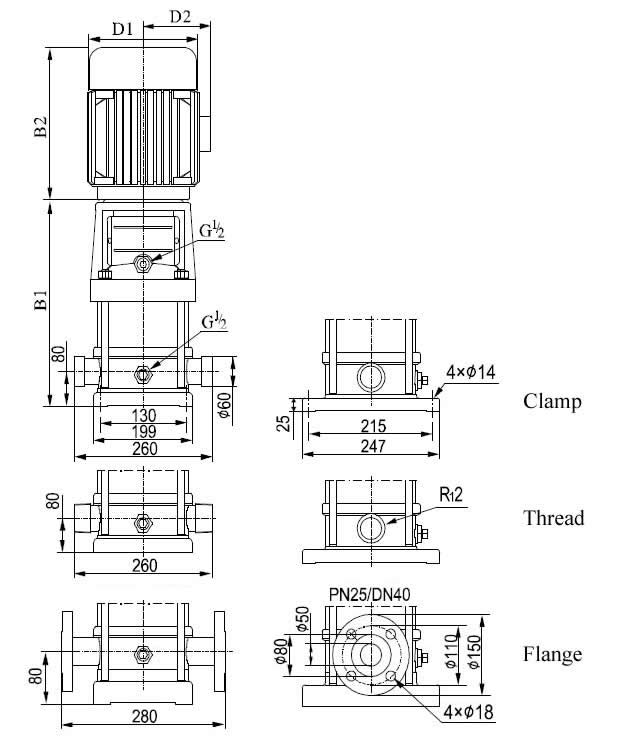

4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size(mm) | Weight (kg) | ||||
| Bl | B2 | Bl+B2 | D1 | D2 | ||
| PHT8-20 | 437 | 280 | 717 | 170 | 142 | 35 |
| PHT8-30 | 467 | 280 | 747 | 170 | 142 | 37 |
| PHT8-40 | 507 | 333 | 840 | 190 | 155 | 43 |
| PHT8-50 | 537 | 333 | 870 | 190 | 155 | 47 |
| PHT8-60 | 567 | 333 | 900 | 190 | 155 | 48 |
| PHT8-80 | 637 | 348 | 985 | 197 | 165 | 56 |
| PHT8-100 | 697 | 382 | 1079 | 230 | 188 | 67 |
| PHT8-120 | 757 | 382 | 1139 | 230 | 188 | 69 |
| PHT8-140 | 837 | 435 | 1272 | 260 | 208 | 84 |
| PHT8-160 | 897 | 435 | 1332 | 260 | 208 | 87 |
| PHT8-180 | 957 | 435 | 1392 | 260 | 208 | 96 |
| PHT8-200 | 1017 | 435 | 1452 | 260 | 208 | 97 |
