QLY16
Type: Multistage Centrifugal Pump
Stage: Multistage
Fluid: Fresh Water & Coolant
Application: CNC Cooling/ Ultrasonic Cleaning
Q(@50Hz, 2900r/min): 8 ~ 22 m³/h
Hmax(@50Hz, 2900r/min): 222 m
Outlet Size: Rp2
Description

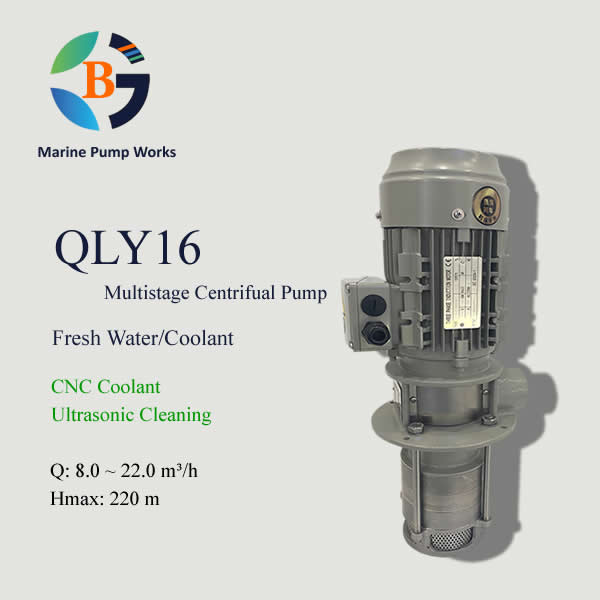

QLY16 immersible coolant pump is a multistage centrifugal pump with flow range Q: 8~22m³/h @ 50Hz, 2900r/min and Max. head 222m. It is designed to transfer fresh water and coolant, widely used for CNC cooling and ultrasonic cleaning.
1. Model Key
QLY16-60
- QLY – Industrial pump code
- 16 – Pump rated capacity is 16 m³/h
- 60 – Number of impellers is 6
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Coupling | QT500 |
| 3 | Pump Head | QT500/SUS304 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Pull Rod | SUS304 |
| 6 | Shaft | SUS304 |
| 7 | Impeller | SUS304 |
| 8 | Inlet Strainer | SUS304 |
| 9 | Inducer | SUS304 |
| 10 | Support Diffuser | SUS304 |
| 11 | Bearing | TC |
| 12 | Strainer | SUS304 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 |
| QLY16-20 | 2.2 | H(m) | 27 | 26 | 25 | 24 | 22 | 21 | 19 | 16 |
| QLY16-30 | 3 | 41 | 40 | 38 | 37 | 34 | 32 | 29 | 25 | |
| QLY16-40 | 4 | 54 | 53 | 52 | 49 | 46 | 43 | 38 | 34 | |
| QLY16-50 | 5.5 | 68 | 67 | 65 | 62 | 58 | 54 | 48 | 43 | |
| QLY16-60 | 5.5 | 82 | 80 | 78 | 74 | 70 | 64 | 58 | 52 | |
| QLY16-70 | 7.5 | 96 | 95 | 91 | 87 | 82 | 76 | 68 | 61 | |
| QLY16-80 | 7.5 | 110 | 108 | 104 | 99 | 94 | 86 | 77 | 70 | |
| QLY16-100 | 11 | 138 | 136 | 131 | 125 | 118 | 109 | 97 | 87 | |
| QLY16-120 | 11 | 166 | 162 | 157 | 150 | 141 | 130 | 116 | 105 | |
| QLY16-140 | 15 | 194 | 190 | 184 | 175 | 166 | 152 | 136 | 122 | |
| QLY16-160 | 15 | 222 | 217 | 210 | 200 | 189 | 174 | 156 | 140 |

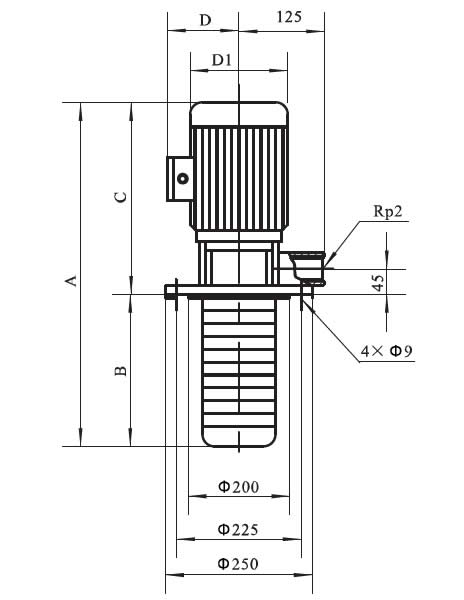

4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size（mm) | Weight （kg) | ||||
| A | B | C | D | D1 | ||
| QLY16-20 | 663 | 180 | 483 | 155 | 190 | 35 |
| QLY16-30 | 718 | 225 | 493 | 165 | 197 | 40 |
| QLY16-40 | 797 | 270 | 527 | 185 | 230 | 50 |
| QLY16-50 | 920 | 315 | 605 | 210 | 260 | 65 |
| QLY16-60 | 965 | 360 | 68 | |||
| QLY16-70 | 1010 | 405 | 75 | |||
| QLY16-80 | 1055 | 450 | 78 | |||
| QLY16-100 | 1320 | 540 | 780 | 255 | 330 | 131 |
| QLY16-120 | 1410 | 630 | 136 | |||
| QLY16-140 | 1500 | 720 | 148 | |||
| QLY16-160 | 1590 | 810 | 151 | |||
