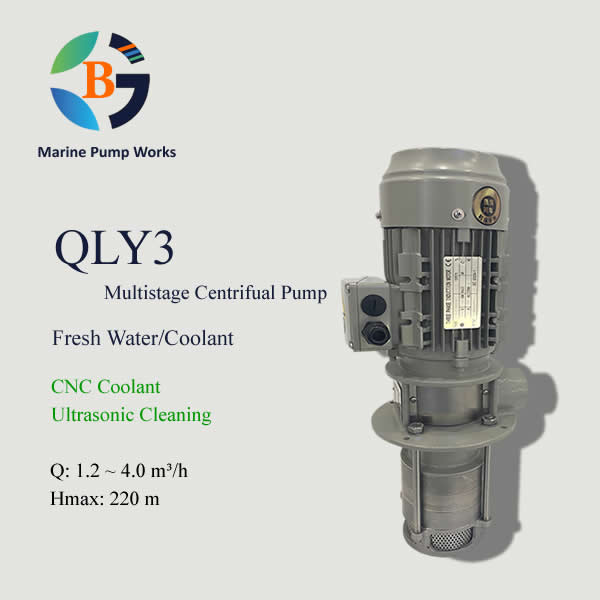

QLY3
Type: Multistage Centrifugal Pump
Stage: Multistage
Fluid: Fresh Water & Coolant
Application: CNC Cooling/ Ultrasonic Cleaning
Q(@50Hz, 2900r/min): 1.2 ~ 4.0 m³/h
Hmax(@50Hz, 2900r/min): 218 m
Outlet Size: Rp1-1/4
Description
QLY3 immersible coolant pump is a multistage centrifugal pump with flow range Q: 1.2~4.0m³/h @ 50Hz, 2900r/min and Max. head 218m. It is designed to transfer fresh water and coolant, widely used for CNC cooling and ultrasonic cleaning.
1. Model Key
QLY3-360
- QLY – Industrial pump code
- 3 – Pump rated capacity is 3 m³/h
- 360 – Number of impellers is 36
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Coupling | QT500 |
| 3 | Pump Head | QT500/SUS304 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Pull Rod | SUS304 |
| 6 | Shaft | SUS304 |
| 7 | Impeller | SUS304 |
| 8 | Inlet Strainer | SUS304 |
| 9 | Inducer | SUS304 |
| 10 | Support Diffuser | SUS304 |
| 11 | Bearing | TC |
| 12 | Strainer | SUS304 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 1.2 | 1.6 | 2 | 2.4 | 2.8 | 3 | 3.2 | 3.6 | 4 |
| QLY3-20 | 0.37 | H(m) | 12.5 | 11.5 | 11 | 10.5 | 10 | 9 | 8 | 7 | 6 |
| QLY3-30 | 0.37 | 19 | 18.5 | 17.S | 16.S | 15 | 14 | 13 | 11 | 9 | |
| QLY3-40 | 0.37 | 25 | 24 | 23 | 21.S | 20 | 19 | 18 | 15 | 12 | |
| QLY3-50 | 0.37 | 31 | 30 | 29 | 27 | 25 | 23 | 22 | 19 | 16 | |
| QLY3-60 | 0.55 | 36 | 35 | 34 | 32 | 30 | 28 | 27 | 23 | 19 | |
| QLY3-70 | 0.55 | 43 | 41 | 39 | 37 | 34 | 32 | 31 | 27 | 22 | |
| QLY3-80 | 0.75 | 49 | 47 | 45 | 43 | 39 | 37 | 35 | 31 | 25 | |
| QLY3-90 | 0.75 | 55 | 53 | 51 | 48 | 45 | 42 | 40 | 35 | 28 | |
| QLY3-100 | 0.75 | 61 | 59 | 57 | 54 | 50 | 47 | 45 | 39 | 31 | |
| QLY3-110 | 1.1 | 67 | 64 | 61 | 58 | 54 | 51 | 49 | 42 | 34 | |
| QLY3-120 | 1.1 | 73 | 70 | 67 | 63 | 58 | 55 | 52 | 45 | 37 | |
| QLY3-130 | 1.1 | 78 | 76 | 73 | 69 | 64 | ω | 57 | 49 | 40 | |
| QLY3-150 | 1.1 | 90 | 88 | 84 | 79 | 73 | 69 | 66 | 57 | 46 | |
| QLY3-170 | 1.5 | 103 | 100 | 96 | 90 | 83 | 79 | 75 | 64 | 52 | |
| QLY3-190 | 1.5 | 115 | 112 | 107 | 100 | 92 | 88 | 83 | 72 | 58 | |
| QLY3-210 | 2.2 | 128 | 124 | 119 | 112 | 102 | 98 | 91 | 79 | 64 | |
| QLY3-230 | 2.2 | 140 | 135 | 130 | 122 | 112 | 107 | 100 | 86 | 70 | |
| QLY3-250 | 2.2 | 151 | 147 | 141 | 131 | 122 | 116 | 109 | 94 | 76 | |
| QLY3-270 | 2.2 | 164 | 159 | 152 | 143 | 132 | 124 | 117 | 101 | 82 | |
| QLY3-290 | 2.2 | 175 | 170 | 163 | 153 | 142 | 133 | 126 | 109 | 88 | |
| QLY3-310 | 3 | 187 | 182 | 175 | 165 | 153 | 142 | 135 | 116 | 94 | |
| QLY3-330 | 3 | 199 | 194 | 187 | 176 | 163 | 151 | 145 | 125 | 100 | |
| QLY3-360 | 3 | 218 | 212 | 204 | 192 | 178 | 168 | 159 | 137 | 109 |

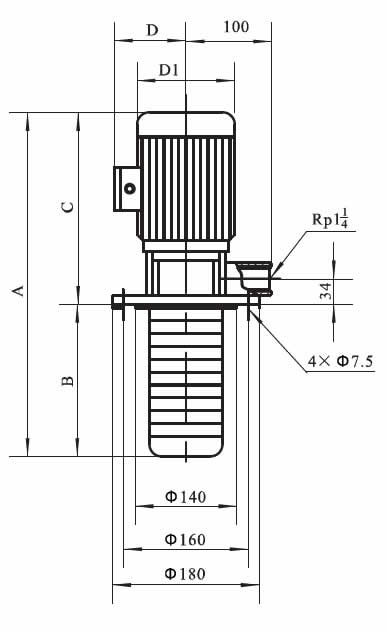

4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size（mm) | Weight （kg) | ||||
| A | B | C | D | D1 | ||
| QLY3-20 | 463 | 123 | 340 | 117 | 148 | 20 |
| QLY3-30 | 481 | 141 | 20 | |||
| QLY3-50 | 517 | 177 | 21 | |||
| QLY3-60 | 535 | 195 | 23 | |||
| QLY3-70 | 553 | 213 | 23 | |||
| QLY3-80 | 622 | 231 | 391 | 142 | 170 | 26 |
| QLY3-100 | 658 | 267 | 28 | |||
| QLY3-120 | 694 | 303 | 30 | |||
| QLY3-150 | 748 | 357 | 32 | |||
| QLY3-170 | 862 | 393 | 469 | 155 | 190 | 38 |
| QLY3-190 | 898 | 429 | 40 | |||
| QLY3-250 | 1006 | 537 | 43 | |||
| QLY3-290 | 1078 | 609 | 45 | |||
| QLY3-330 | 1160 | 681 | 478 | 165 | 397 | 54 |
| QLY3-360 | 1214 | 735 | 56 | |||
