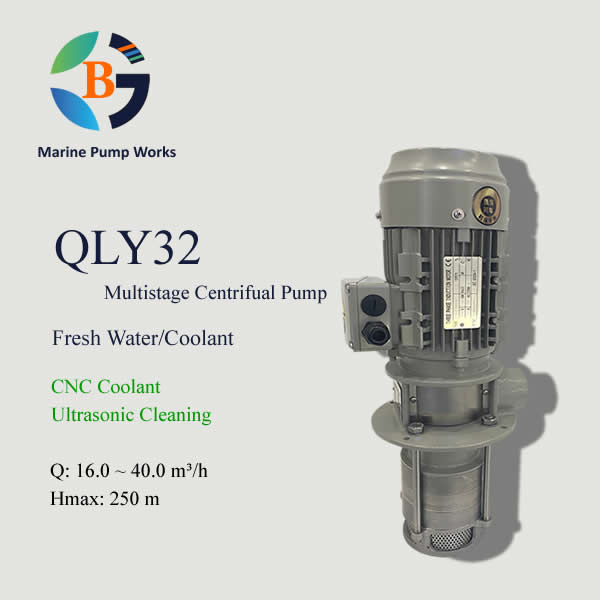

QLY32
Type: Multistage Centrifugal Pump
Stage: Multistage
Fluid: Fresh Water & Coolant
Application: CNC Cooling/ Ultrasonic Cleaning
Q(@50Hz, 2900r/min): 16 ~ 40 m³/h
Hmax(@50Hz, 2900r/min): 255 m
Outlet Size: DN65
Description
QLY32 immersible coolant pump is a multistage centrifugal pump with flow range Q: 16~40m³/h @ 50Hz, 2900r/min and Max. head 255m. It is designed to transfer fresh water and coolant, widely used for CNC cooling and ultrasonic cleaning.
1. Model Key
QLY32-50-2
- QLY – Industrial pump code
- 32 – Pump rated capacity is 32 m³/h
- 50 – Number of impellers is 5
- 2 – Number of reduced-diameter impellers is 2
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Coupling | QT500 |
| 3 | Pump Head | QT500/SUS304 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Pull Rod | SUS304 |
| 6 | Shaft | SUS304 |
| 7 | Impeller | SUS304 |
| 8 | Inlet Strainer | SUS304 |
| 9 | Inducer | SUS304 |
| 10 | Support Diffuser | SUS304 |
| 11 | Bearing | TC |
| 12 | Strainer | SUS304 |
| 13 | Motor Base | QT500/HT200 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 16 | 20 | 24 | 28 | 32 | 36 | 40 |
| QLY32-10-l | 1.5 | H(m) | 14 | 13 | 12 | 11 | 9 | 7 | 4 |
| QLY32-10 | 2.2 | 18 | 17 | 15 | 14 | 13 | l1 | 8 | |
| QLY32-20-2 | 3 | 29 | 28 | 26 | 23 | 20 | 16 | 11 | |
| QLY32-20 | 4 | 36 | 34 | 32 | 29 | 27 | 23 | 18 | |
| QLY32-30-2 | 5.5 | 47 | 44 | 41 | 38 | 33 | 28 | 21 | |
| QLY32-30 | 5.5 | 54 | 51 | 48 | 44 | 40 | 35 | 27 | |
| QLY32-40-2 | 7.5 | 65 | 62 | 58 | 53 | 46 | 40 | 30 | |
| QLY32-40 | 7.5 | 72 | 69 | 65 | 59 | 53 | 47 | 37 | |
| QLY32-50-2 | l1 | 83 | 79 | 74 | 68 | 60 | 52 | 41 | |
| QLY32-50 | l1 | 90 | 86 | 81 | 74 | 67 | 59 | 47 | |
| QLY32-60-2 | l1 | 101 | 97 | 90 | 83 | 74 | 65 | 51 | |
| QLY32-60 | 11 | 108 | 104 | 97 | 90 | 81 | 72 | 57 | |
| QLY32-70-2 | 15 | 119 | 114 | 107 | 98 | 88 | 78 | 60 | |
| QLY32-70 | 15 | 126 | 121 | 113 | 105 | 95 | 85 | 67 | |
| QLY32-80-2 | 15 | 136 | 131 | 123 | 114 | 102 | 90 | 71 | |
| QLY32-80 | 15 | 144 | 138 | 130 | 120 | 109 | 97 | 77 | |
| QLY32-90-2 | 18.5 | 154 | 148 | 140 | 129 | 117 | 102 | 82 | |
| QLY32-90 | 18.5 | 162 | 156 | 147 | 136 | 124 | 109 | 88 | |
| QLY32-100-2 | 18.5 | 175 | 166 | 157 | 146 | 131 | 115 | 91 | |
| QLY32-100 | 18.5 | 182 | 173 | 164 | 152 | 138 | 122 | 98 | |
| QLY32-110-2 | 22 | 193 | 184 | 173 | 164 | 146 | 128 | 102 | |
| QLY32-110 | 22 | 200 | 191 | 180 | 168 | 153 | 135 | 109 | |
| QLY32-120-2 | 22 | 211 | 201 | 189 | 178 | 160 | 140 | 113 | |
| QLY32-120 | 22 | 218 | 208 | 196 | 184 | 167 | 147 | 120 | |
| QLY32-130-2 | 30 | 230 | 218 | 206 | 193 | 174 | 153 | 124 | |
| QLY32-130 | 30 | 237 | 225 | 213 | 200 | 181 | 160 | 131 | |
| QLY32-140-2 | 30 | 247 | 235 | 222 | 210 | 189 | 165 | 135 | |
| QLY32-140 | 30 | 255 | 242 | 229 | 216 | 196 | 172 | 142 |

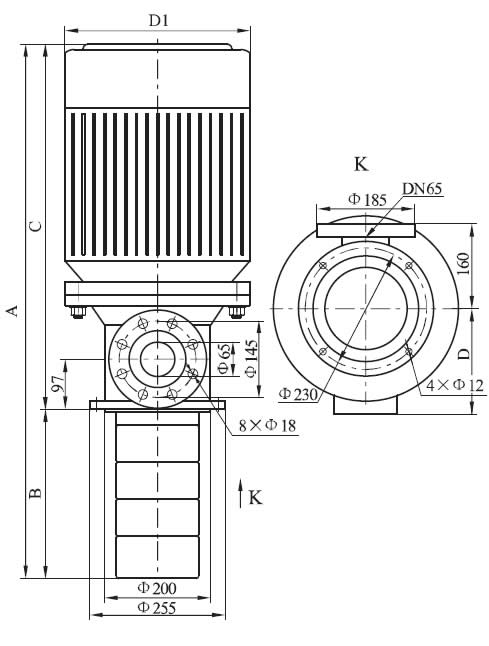

4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size（mm) | Weight （kg) | ||||
| A | B | C | D | D1 | ||
| QLY32-10-l/QLY32-10 | 664 | 186 | 478 | 155 | 190 | 49/51 |
| QLY32-20-2/QLY32-20 | 749/783 | 256 | 493/527 | 165/185 | 197/230 | 57/62 |
| QLY32-30-2/QLY32-30 | 926 | 326 | 600 | 210 | 260 | 70 |
| QLY32-40-2/QLY32-40 | 996 | 396 | 600 | 210 | 260 | 77 |
| QLY32-50-2/QLY32-50 | 1309 | 466 | 833 | 255 | 330 | 148 |
| QLY32-60-2/QLY32-60 | 1379 | 536 | 833 | 255 | 330 | 150 |
| QLY32-70-2/QLY32-70 | 1449 | 606 | 833 | 255 | 330 | 162 |
| QLY32-80-2/QLY32-80 | 1519 | 676 | 833 | 255 | 330 | 165 |
| QLY32-90-2/QLY32-90 | 1614 | 746 | 868 | 255 | 330 | 191 |
| QLY32-100-2/QLY32-100 | 1684 | 816 | 868 | 255 | 330 | 194 |
| QLY32-110-2/QLY32-110 | 1794 | 886 | 908 | 285 | 360 | 230 |
| QLY32-120-2/QLY32-120 | 1864 | 956 | 908 | 285 | 360 | 234 |
| QLY32-130-2/QLY32-130 | 1994 | 1026 | 968 | 310 | 400 | 297 |
| QLY32-140-2/QLY32-140 | 2064 | 1096 | 968 | 310 | 400 | 300 |
