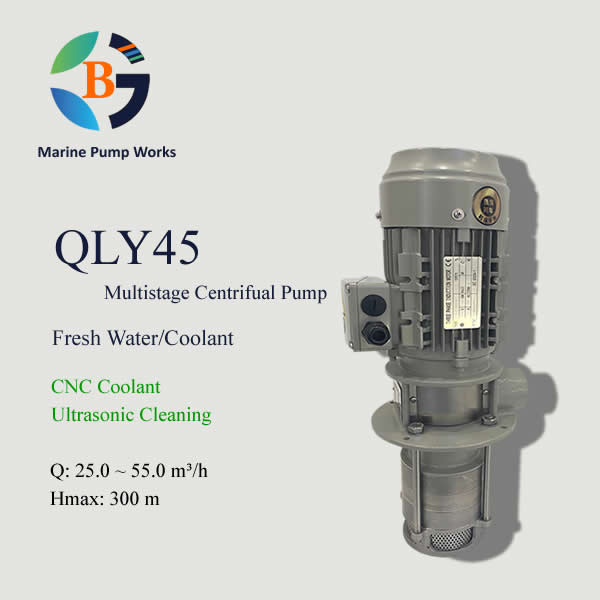

QLY45
Type: Multistage Centrifugal Pump
Stage: Multistage
Fluid: Fresh Water & Coolant
Application: CNC Cooling/ Ultrasonic Cleaning
Q(@50Hz, 2900r/min): 25 ~ 55 m³/h
Hmax(@50Hz, 2900r/min): 305 m
Outlet Size: DN80
Description
QLY45 immersible coolant pump is a multistage centrifugal pump with flow range Q: 25~55m³/h @ 50Hz, 2900r/min and Max. head 305m. It is designed to transfer fresh water and coolant, widely used for CNC cooling and ultrasonic cleaning.
1. Model Key
QLY45-60-2
- QLY – Industrial pump code
- 45 – Pump rated capacity is 45 m³/h
- 60 – Number of impellers is 6
- 2 – Number of reduced-diameter impellers is 2
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Coupling | QT500 |
| 3 | Pump Head | QT500/SUS304 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Pull Rod | SUS304 |
| 6 | Shaft | SUS304 |
| 7 | Impeller | SUS304 |
| 8 | Inlet Strainer | SUS304 |
| 9 | Inducer | SUS304 |
| 10 | Support Diffuser | SUS304 |
| 11 | Bearing | TC |
| 12 | Strainer | SUS304 |
| 13 | Motor Base | QT500/HT200 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor（kW） | Q (m³/h) | 25 | 30 | 35 | 40 | 45 | 50 | 55 |
| QLY45-10-1 | 3 | H(m) | 20 | 19 | 18 | 17 | l5 | 13 | 11 |
| QLY45-10 | 4 | 24 | 23 | 22 | 21 | 19 | 18 | 16 | |
| QLY45-20-2 | 5.5 | 40 | 38 | 36 | 33 | 30 | 27 | 23 | |
| QLY45-20 | 7.5 | 48 | 46 | 44 | 42 | 39 | 35 | 31 | |
| QLY45-30-2 | 11 | 63 | 61 | 58 | 54 | 50 | 44 | 38 | |
| QLY45-30 | 11 | 71 | 69 | 66 | 63 | 58 | 53 | 47 | |
| QLY45-40-2 | 15 | 87 | 84 | 80 | 75 | 69 | 62 | 54 | |
| QLY45-40 | 15 | 95 | 92 | 88 | 84 | 78 | 71 | 62 | |
| QLY45-50-2 | 18.5 | 111 | 1σ7 | 102 | 96 | 88 | 80 | 69 | |
| QLY45-50 | 18.5 | 119 | 115 | 110 | 105 | 97 | 88 | 78 | |
| QLY45-60-2 | 22 | 135 | 130 | 124 | 117 | 108 | 97 | 85 | |
| QLY45-60 | 22 | 143 | 138 | 132 | 125 | 116 | 106 | 93 | |
| QLY45-70-2 | 30 | 158 | 152 | 146 | 138 | 127 | 115 | 100 | |
| QLY45-70 | 30 | 166 | 161 | 154 | 146 | 135 | 124 | 109 | |
| QLY45-80-2 | 30 | 182 | 175 | 168 | 159 | 146 | 133 | 116 | |
| QLY45-80 | 30 | 190 | 184 | 176 | 167 | 154 | 141 | 124 | |
| QLY45-90-2 | 30 | 205 | 198 | 190 | 180 | 166 | 150 | 132 | |
| QLY45-90 | 37 | 214 | 207 | 198 | 188 | 174 | 159 | 140 | |
| QLY45-100-2 | 37 | 230 | 221 | 212 | 200 | 185 | 168 | 147 | |
| QLY45-100 | 37 | 238 | 230 | 220 | 209 | 193 | 177 | 155 | |
| QLY45-110-2 | 45 | 255 | 246 | 236 | 223 | 206 | 188 | 165 | |
| QLY45-110 | 45 | 263 | 255 | 244 | 232 | 214 | 196 | 173 | |
| QLY45-120-2 | 45 | 280 | 270 | 259 | 245 | 226 | 206 | 181 | |
| QLY45-120 | 45 | 289 | 280 | 268 | 255 | 236 | 216 | 190 | |
| QLY45-130-2 | 45 | 305 | 294 | 282 | 267 | 247 | 225 | 198 |

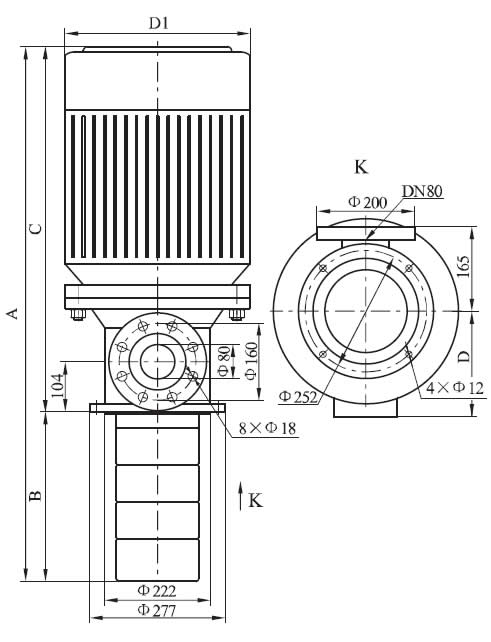

4. Dimensions and Weight:
@ 50Hz, 2900r/min
| Model | Size（mm) | Weight （kg) | ||||
| A | B | C | D | D1 | ||
| JGGC45-10-l/JGGC45-10 | 705/739 | 198 | 507/541 | 165/185 | 197/230 | 60/65 |
| JGGC45-20-2/JGGC45-20 | 892 | 278 | 614 | 210 | 260 | 77/84 |
| JGGC45-30-2/JGGC45-30 | 1215 | 358 | 857 | 255 | 330 | 150 |
| JGGC45-40-2/JGGC45-40 | 1295 | 438 | 857 | 255 | 330 | 162 |
| JGGC45-50-2/JGGC45-50 | 1400 | 518 | 882 | 255 | 330 | 182 |
| JGGC45-60-2/JGGC45-60 | 1520 | 598 | 922 | 285 | 360 | 225 |
| JGGC45-70-2/JGGC45-70 | 1660 | 678 | 982 | 310 | 400 | 288 |
| JGGC45-80-2/JGGC45-80 | 1740 | 758 | 982 | 310 | 400 | 292 |
| JGGC45-90-2/JGGC45-90 | 1820 | 838 | 982 | 310 | 400 | 296/315 |
| JGGC45-100-2/JGGC45-100 | 1900 | 918 | 982 | 310 | 400 | 320 |
| JGGC45-110-2/JGGC45-110 | 2015 | 998 | 1017 | 345 | 450 | 385 |
| JGGC45-120-2/JGGC45-120 | 2095 | 1078 | 1017 | 345 | 450 | 390 |
| JGGC45-130-2 | 2175 | 1158 | 1017 | 345 | 450 | 394 |
