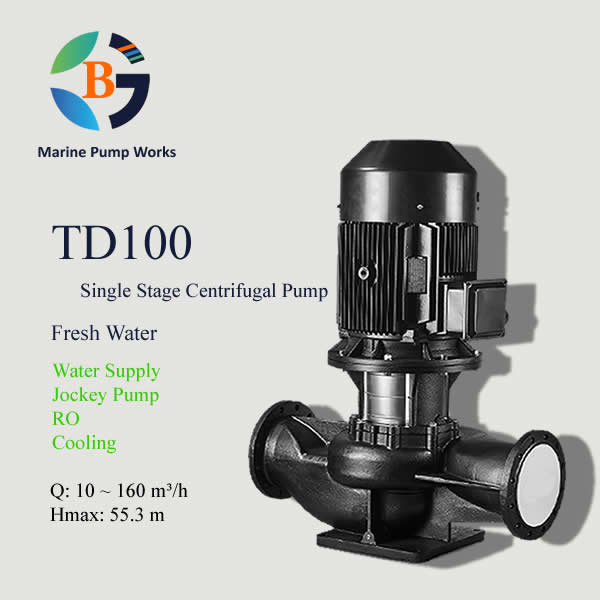

TD100
Type: Vertical Centrifugal Pump
Stage: Single
Fluid: Fresh Water
Application: Water Supply/Jockey Pump/RO System/ Cooling/
Q(@50Hz, 2900r/min): 10 ~ 160 m³/h
Hmax(@50Hz, 2900r/min): 55.3 m
Inlet and Outlet Flange: DN100
Description
TD100 inline single stage pump is a vertical centrifugal pump with inlet and outlet flange are DN100. with flow rate Q: 10~160 m³/h @ 50Hz, 2900r/min. It mianly used to transfer fresh water, widely used for water transfer, cooling, jockey pump and RO system.
1. Model Key
TD100-100-27
- TD – Industrial pump code
- 100 – Pump inlet and outlet flange are DN100
- 100 – Pump rated capacity is 100m³/h
- 27 – Pump rated head is 27m
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Casing | HT200 |
| 2 | Impeller | HT200/1Cr18Ni9 |
| 3 | Casing Cover | HT200 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Coupling Guard | 1Cr18Ni9 |
| 6 | Pump Shaft | 1Cr18Ni9 |
| 7 | Air release bolt | 1Cr18Ni9 |
| 8 | Seal O Ring | NBR/FKM/EPDM |
| 9 | Plug | 1Cr18Ni9 |
| 10 | Coupling | QT450 |
| 11 | Seal Cover | 45# Steel |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor | Q | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 145 | 160 |
| (Kw) | (m³/h) | ||||||||||||||||
| TD100-50-9 | 2.2 | H (m) | 13.9 | 13.2 | 12.2 | 10.8 | 9 | 6.8 | 4.4 | ||||||||
| TD100-60-15 | 4 | 18.6 | 18.2 | 17.7 | 17.1 | 16.2 | 15 | 13.4 | 11 | ||||||||
| TD100-80-17 | 5.5 | 21.7 | 21.5 | 21.1 | 20.7 | 20 | 19.2 | 18.3 | 17 | 15.3 | 13 | 10.4 | |||||
| TD100-80-22 | 7.5 | 26.8 | 26.6 | 26.3 | 25.9 | 25.3 | 24.5 | 23.4 | 22 | 20.3 | 18.2 | 15.8 | |||||
| TD100-100-27 | 11 | 31.5 | 31.3 | 31.1 | 30.9 | 30.7 | 30.3 | 29.8 | 29.2 | 28.2 | 27 | 25.5 | 23.6 | 20.8 | |||
| TD100-100-33 | 15 | 37.1 | 37 | 36.8 | 36.6 | 36.2 | 35.8 | 35.3 | 34.7 | 33.9 | 33 | 31.7 | 30.1 | 27.9 | |||
| TD100-100-40 | 18.5 | 43.3 | 43.2 | 43.1 | 42.9 | 42.7 | 42.4 | 42.1 | 41.6 | 40.9 | 40 | 38.9 | 37.4 | 35.3 | |||
| TD100-100-48 | 22 | 51.2 | 51.1 | 51 | 50.8 | 50.6 | 50.3 | 49.9 | 49.4 | 48.8 | 48 | 46.9 | 45.3 | 43.2 | |||
| TD100-130-52 | 30 | 55.3 | 55.3 | 55.3 | 55.3 | 55.2 | 55.1 | 54.8 | 54.6 | 54.4 | 54.2 | 53.8 | 53.1 | 52 | 49 | 43.5 |
4. Dimensions and Weights:
@ 50Hz, 2900r/min
