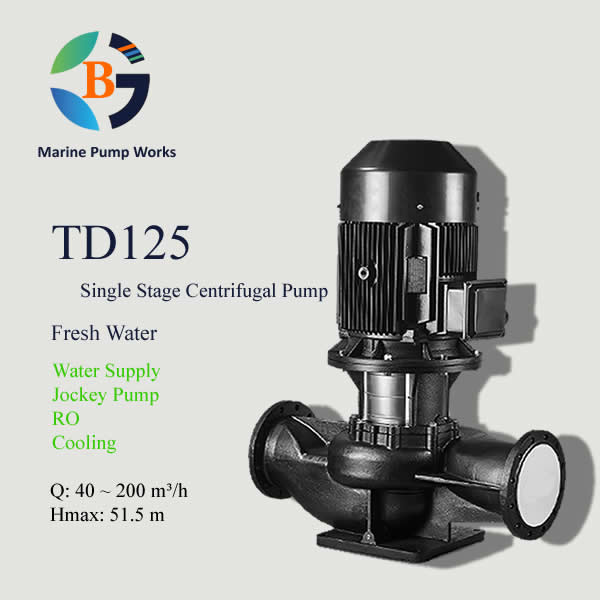

TD125
Type: Vertical Centrifugal Pump
Stage: Single
Fluid: Fresh Water
Application: Water Supply/Jockey Pump/RO System/ Cooling/
Q(@50Hz, 2900r/min): 40 ~ 200 m³/h
Hmax(@50Hz, 2900r/min): 51.5 m
Inlet and Outlet Flange: DN125
Description
TD125 inline single stage pump is a vertical centrifugal pump with inlet and outlet flange are DN125. with flow rate Q: 40~200 m³/h @ 50Hz, 2900r/min. It mianly used to transfer fresh water, widely used for water transfer, cooling, jockey pump and RO system.
1. Model Key
TD125-160-32
- TD – Industrial pump code
- 125 – Pump inlet and outlet flange are DN125
- 160 – Pump rated capacity is 100m³/h
- 32 – Pump rated head is 32m

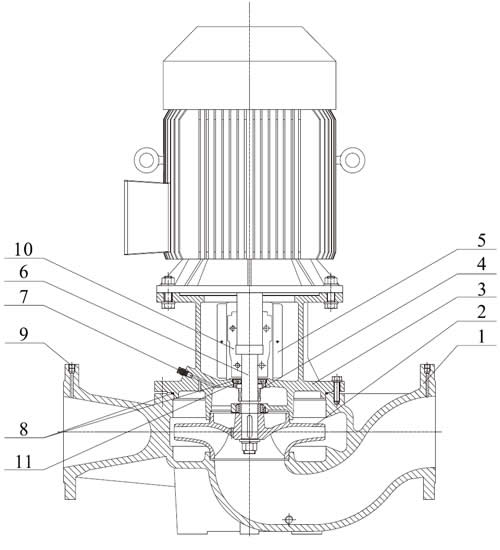

2. Construction and Material:
| Part No. | Name | Material |
| 1 | Casing | HT200 |
| 2 | Impeller | HT200/1Cr18Ni9 |
| 3 | Casing Cover | HT200 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Coupling Guard | 1Cr18Ni9 |
| 6 | Pump Shaft | 1Cr18Ni9 |
| 7 | Air release bolt | 1Cr18Ni9 |
| 8 | Seal O Ring | NBR/FKM/EPDM |
| 9 | Plug | 1Cr18Ni9 |
| 10 | Coupling | QT450 |
| 11 | Seal Cover | 45# Steel |
3. Technical Date:
@ 50Hz, 1450r/min
| Model | Motor | Q | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 | 200 |
| (Kw) | (m³/h) | ||||||||||
| TD125-120-11 | 5.5 | H (m) | 12.9 | 12.7 | 12.4 | 11.8 | 11 | 9.9 | 8 | ||
| TD125-120-14 | 7.5 | 16.2 | 15.9 | 15.5 | 14.9 | 14 | 12.8 | 11.2 | |||
| TD125-160-18 | 11 | 21.5 | 21.3 | 21 | 20.6 | 19.9 | 19.1 | 18 | 16.4 | 14.1 | |
| TD125-160-22 | 15 | 26.7 | 26.5 | 26.2 | 25.7 | 24.9 | 23.7 | 22 | 19.8 | 16.7 | |
| TD125-160-28 | 18.5 | 30.9 | 30.8 | 30.7 | 30.5 | 30.1 | 29.3 | 28 | 25.8 | 22.2 | |
| TD125-160-32 | 22 | 34.6 | 34.6 | 34.5 | 34.4 | 34 | 33.3 | 32 | 30.2 | 27.3 | |
| TD125-160-40 | 30 | 43.9 | 43.6 | 43.3 | 42.9 | 42.2 | 41.3 | 40 | 38 | 35.4 | |
| TD125-160-48 | 37 | 51.5 | 51.3 | 51 | 50.5 | 49.9 | 49.1 | 48 | 46.4 | 44.2 |
4. Dimensions and Weights:
@ 50Hz, 2900r/min
