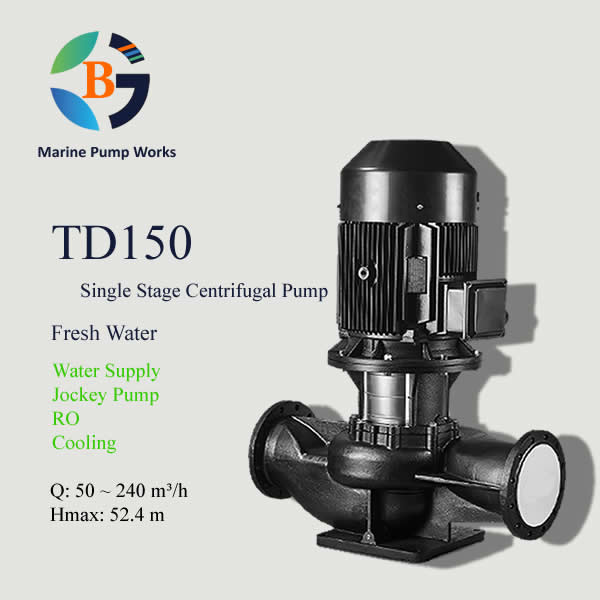

TD150
Type: Vertical Centrifugal Pump
Stage: Single
Fluid: Fresh Water
Application: Water Supply/Jockey Pump/RO System/ Cooling/
Q(@50Hz, 2900r/min): 50 ~ 240 m³/h
Hmax(@50Hz, 2900r/min): 52.4 m
Inlet and Outlet Flange: DN150
Description
TD150 inline single stage pump is a vertical centrifugal pump with inlet and outlet flange are DN150. with flow rate Q: 50~240 m³/h @ 50Hz, 2900r/min. It mianly used to transfer fresh water, widely used for water transfer, cooling, jockey pump and RO system.
1. Model Key
TD150-200-40
- TD – Industrial pump code
- 150 – Pump inlet and outlet flange are DN150
- 200 – Pump rated capacity is 200m³/h
- 40 – Pump rated head is 32m
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Casing | HT200 |
| 2 | Impeller | HT200/1Cr18Ni9 |
| 3 | Casing Cover | HT200 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Coupling Guard | 1Cr18Ni9 |
| 6 | Pump Shaft | 1Cr18Ni9 |
| 7 | Air release bolt | 1Cr18Ni9 |
| 8 | Seal O Ring | NBR/FKM/EPDM |
| 9 | Plug | 1Cr18Ni9 |
| 10 | Coupling | QT450 |
| 11 | Seal Cover | 45# Steel |
3. Technical Date:
@ 50Hz, 1450r/min
| Model | Motor | Q | 50 | 80 | 110 | 140 | 170 | 200 | 220 | 240 |
| (Kw) | (m³/h) | |||||||||
| TD150-200-12.5 | 11 | H (m) | 14.6 | 14.5 | 14.4 | 14.2 | 13.7 | 12.5 | 11.1 | 9.2 |
| TD150-200-17 | 15 | 18.8 | 18.8 | 18.7 | 18.5 | 18 | 17 | 16.1 | 15 | |
| TD150-200-21 | 18.5 | 23.3 | 23.1 | 22.9 | 22.9 | 22 | 21 | 19.8 | 17.9 | |
| TD150-200-25 | 22 | 28 | 28 | 27.8 | 27.8 | 26.5 | 25 | 23.5 | 21.3 | |
| TD150-200-33 | 30 | 35.5 | 35.4 | 35.2 | 34.8 | 34.2 | 33 | 31.5 | 29.6 | |
| TD150-200-40 | 37 | 43.1 | 43 | 42.8 | 42.4 | 41.6 | 40 | 38.4 | 36.2 | |
| TD150-200-50 | 45 | 52.4 | 52.2 | 52 | 51.7 | 51.1 | 50 | 48.7 | 46.7 |
4. Dimensions and Weights:
@ 50Hz, 1450r/min
