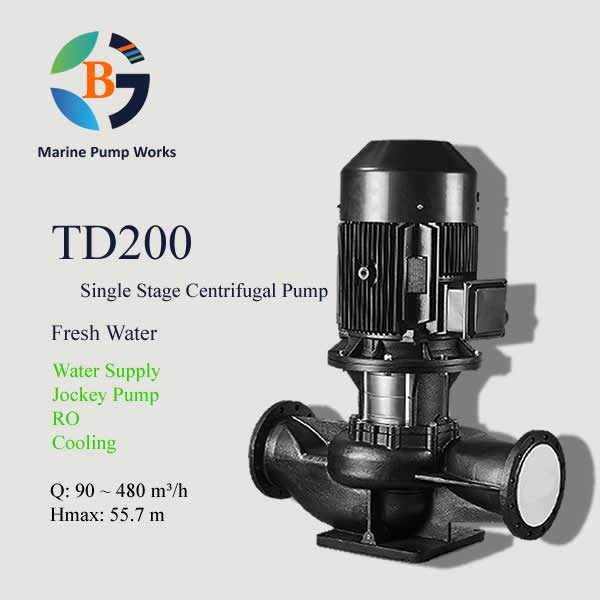

TD200
Type: Vertical Centrifugal Pump
Stage: Single
Fluid: Fresh Water
Application: Water Supply/Jockey Pump/RO System/ Cooling/
Q(@50Hz, 2900r/min): 90 ~ 480 m³/h
Hmax(@50Hz, 2900r/min): 55.7 m
Inlet and Outlet Flange: DN200
Description
TD200 inline single stage pump is a vertical centrifugal pump with inlet and outlet flange are DN200. with flow rate Q: 90~480 m³/h @ 50Hz, 2900r/min. It mianly used to transfer fresh water, widely used for water transfer, cooling, jockey pump and RO system.
1. Model Key
TD200-300-30
- TD – Industrial pump code
- 200 – Pump inlet and outlet flange are DN200
- 300 – Pump rated capacity is 300m³/h
- 30 – Pump rated head is 30m

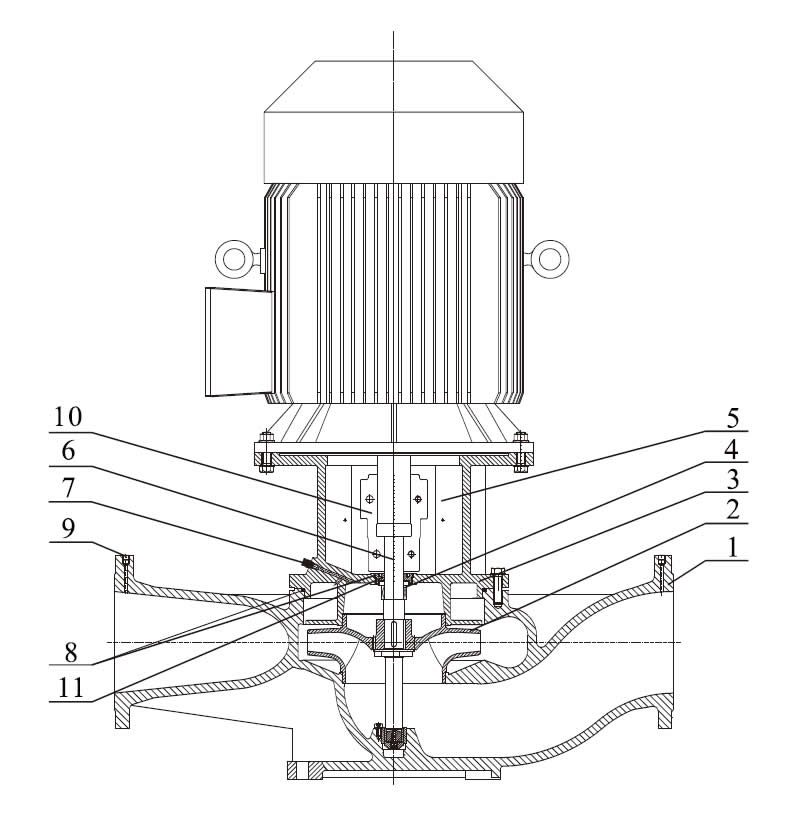

2. Construction and Material:
| Part No. | Name | Material |
| 1 | Casing | HT200 |
| 2 | Impeller | HT200/1Cr18Ni9 |
| 3 | Casing Cover | HT200 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Coupling Guard | 1Cr18Ni9 |
| 6 | Pump Shaft | 1Cr18Ni9 |
| 7 | Air release bolt | 1Cr18Ni9 |
| 8 | Seal O Ring | NBR/FKM/EPDM |
| 9 | Plug | 1Cr18Ni9 |
| 10 | Coupling | QT450 |
| 11 | Seal Cover | 45# Steel |
3. Technical Date:
@ 50Hz, 1450r/min
| Model | Motor | Q | 90 | 120 | 150 | 180 | 210 | 240 | 270 | 300 | 330 | 360 |
| (Kw) | (m³/h) | |||||||||||
| TD200-300-15 | 18.5 | H (m) | 18 | 17.7 | 17.5 | 17.2 | 16.8 | 16.4 | 15.8 | 15 | 14.1 | 12.9 |
| TD200-300-18 | 22 | 21 | 20.7 | 20.5 | 20.2 | 19.8 | 19.4 | 18.8 | 18 | 17.1 | 15.8 | |
| TD200-300-24 | 30 | 26.1 | 26 | 25.8 | 25.7 | 25.4 | 25.1 | 24.6 | 24 | 23.1 | 21.9 | |
| TD200-300-30 | 37 | 33.4 | 33.2 | 33 | 32.6 | 32.2 | 31.6 | 30.9 | 30 | 29 | 27.7 | |
| TD200-300-35 | 45 | 38.3 | 38.3 | 38.1 | 37.8 | 37.3 | 36.7 | 35.9 | 35 | 33.8 | 32.2 | |
| TD200-300-44 | 55 | 46.3 | 46.1 | 45.9 | 45.6 | 45.4 | 45 | 44.6 | 44 | 43.1 | 41.9 | |
| TD200-300-53 | 75 | 55.7 | 55.7 | 55.7 | 55.5 | 55.3 | 54.8 | 54 | 53 | 51.6 | 50 |
| Model | Motor | Q | 160 | 200 | 240 | 280 | 320 | 360 | 400 | 440 | 480 |
| (Kw) | (m³/h) | ||||||||||
| TD200-400-12.5 | 22 | H (m) | 17.2 | 16.9 | 16.5 | 15.9 | 15.1 | 14 | 12.5 | 10.7 | 8 |
| TD200-400-20 | 30 | 24.6 | 24.4 | 24 | 23.6 | 22.8 | 21.7 | 20 | 17.5 | 14.2 | |
| TD200-400-23 | 37 | 28.1 | 27.8 | 27.4 | 26.8 | 25.9 | 24.8 | 23 | 20.9 | 18.2 | |
| TD200-400-27 | 45 | 32.1 | 31.7 | 31.2 | 30.5 | 29.6 | 28.4 | 27 | 24.9 | 22.5 | |
| TD200-400-32 | 55 | 37.5 | 37.1 | 36.5 | 35.7 | 34.7 | 33.3 | 32 | 29.9 | 27.7 | |
| TD200-400-43 | 75 | 47 | 46.7 | 46.4 | 45.9 | 45.3 | 44.4 | 43 | 41.1 | 38.6 | |
| TD200-400-50 | 90 | 52.9 | 52.8 | 52.6 | 52.2 | 51.7 | 51 | 50 | 48.3 | 45.5 |

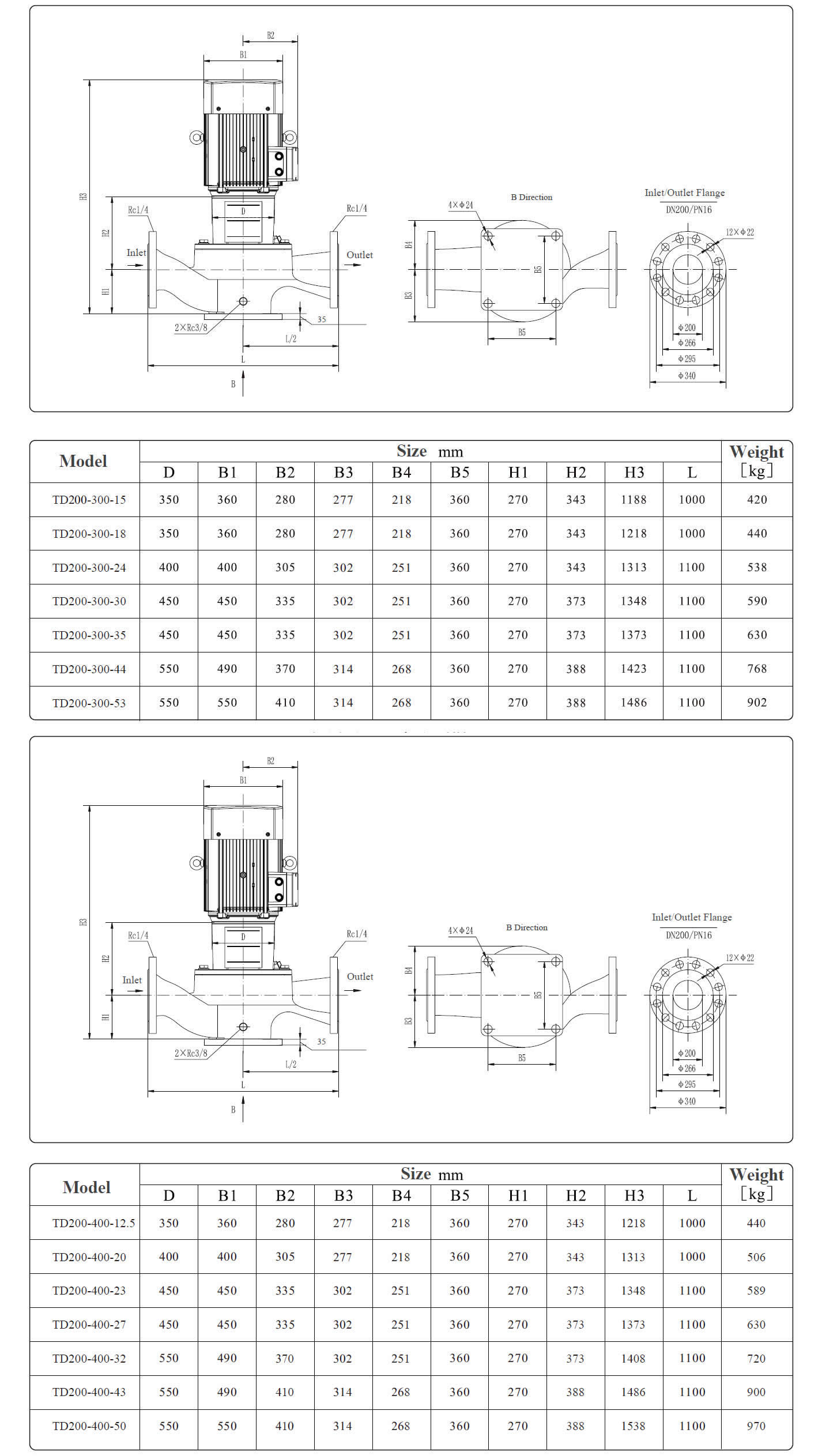

4. Dimensions and Weights:
@ 50Hz, 1450r/min
