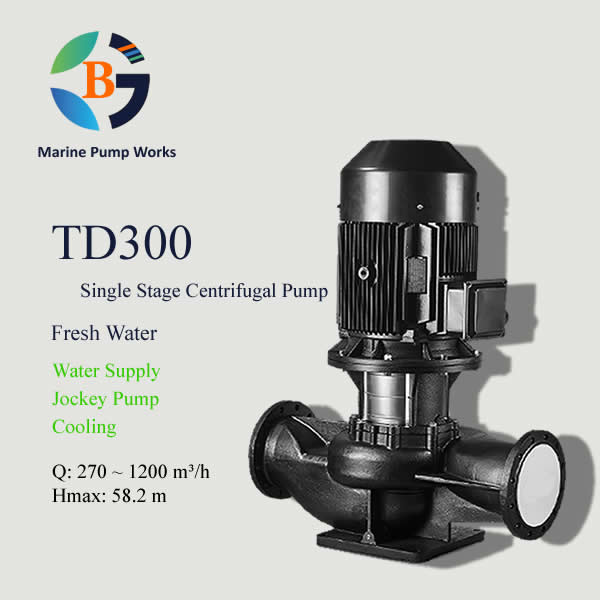

TD300
Type: Vertical Centrifugal Pump
Stage: Single
Fluid: Fresh Water
Application: Water Supply/Jockey Pump/ Cooling/
Q(@50Hz, 2900r/min): 270 ~ 1200 m³/h
Hmax(@50Hz, 2900r/min): 58.2 m
Inlet and Outlet Flange: DN300
Description
TD300 inline single stage pump is a vertical centrifugal pump with inlet and outlet flange are DN300. with flow rate Q: 270~1200 m³/h @ 50Hz, 2900r/min. It mianly used to transfer fresh water, widely used for water transfer, cooling, jockey pump and RO system.
1. Model Key
TD300-900-30
- TD – Industrial pump code
- 300 – Pump inlet and outlet flange are DN300
- 900 – Pump rated capacity is 900m³/h
- 30 – Pump rated head is 30m

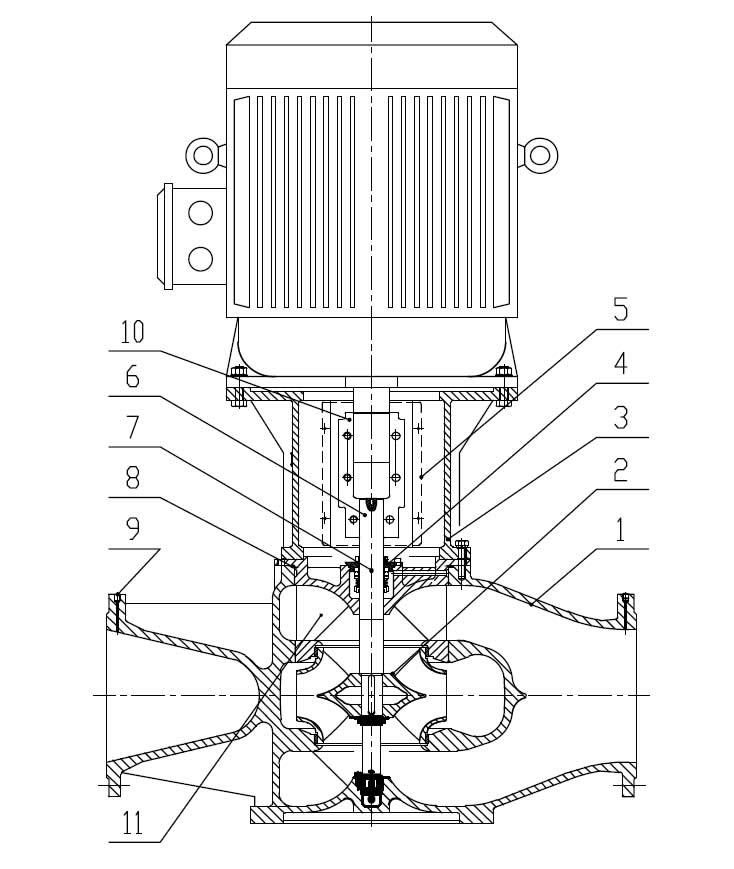

2. Construction and Material:
| Part No. | Name | Material |
| 1 | Casing | HT200 |
| 2 | Impeller | HT200/1Cr18Ni9 |
| 3 | Casing Cover | HT200 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Coupling Guard | 1Cr18Ni9 |
| 6 | Pump Shaft | 1Cr18Ni9 |
| 7 | Air release bolt | 1Cr18Ni9 |
| 8 | Seal O Ring | NBR/FKM/EPDM |
| 9 | Plug | 1Cr18Ni9 |
| 10 | Coupling | QT450 |
| 11 | Seal Cover | 45# Steel |
3. Technical Date:
@ 50Hz, 1450r/min
| Model | Motor | Q | 270 | 360 | 450 | 630 | 750 | 900 | 1080 | 1200 |
| (Kw) | (m³/h) | |||||||||
| TD300-900-15 | 55 | H (m) | 22.7 | 22.3 | 21.6 | 19.5 | 17.8 | 15 | 11.6 | 8.5 |
| TD300-900-20 | 75 | 26.4 | 26 | 25.5 | 24.1 | 22.4 | 20 | 17.1 | 14.5 | |
| TD300-900-25 | 90 | 30.8 | 30.4 | 29.8 | 28.2 | 27.1 | 25 | 22.5 | 20 | |
| TD300-900-30 | 110 | 34.5 | 34 | 33.5 | 32.4 | 31.6 | 30 | 27.5 | 25 | |
| TD300-900-35 | 132 | 38.6 | 38.1 | 37.8 | 36.9 | 36 | 35 | 32.6 | 29.6 | |
| TD300-900-44 | 160 | 49.5 | 49.2 | 48.8 | 47.6 | 46.3 | 44 | 40.5 | 37.5 | |
| TD300-900-55 | 200 | 58.2 | 57.9 | 57.6 | 56.7 | 56.1 | 55 | 52.5 | 49.2 |

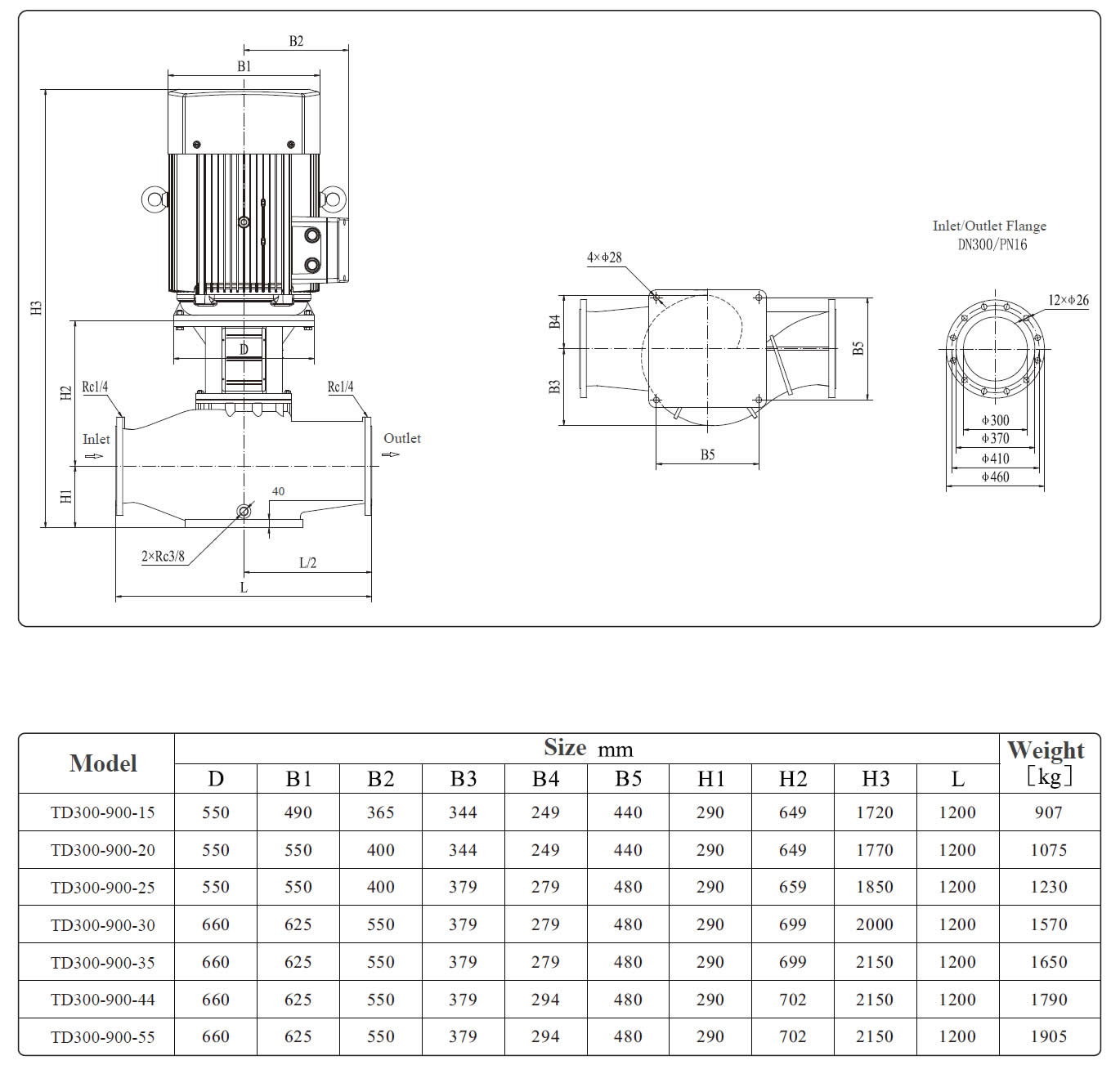

4. Dimensions and Weights:
@ 50Hz, 1450r/min
