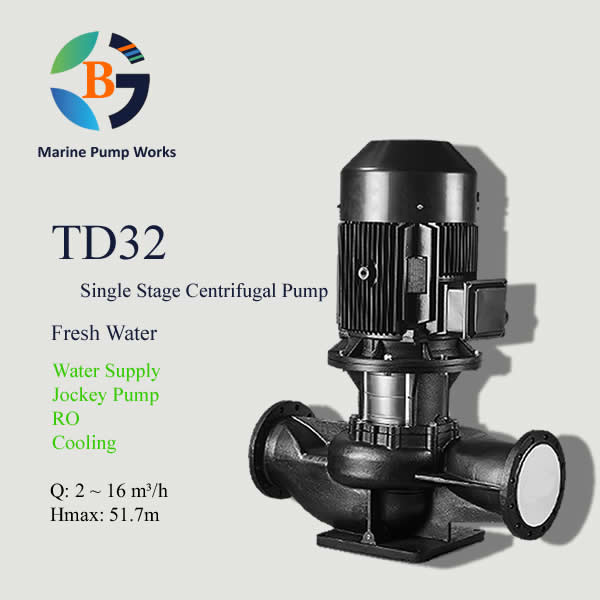

TD32
Type: Vertical Centrifugal Pump
Stage: Single
Fluid: Fresh Water
Application: Water Supply/Jockey Pump/RO System/ Cooling/
Q(@50Hz, 2900r/min): 2 ~ 16 m³/h
Hmax(@50Hz, 2900r/min): 51.7 m
Inlet and Outlet Flange: DN32
Description
TD32 inline single stage pump is a vertical centrifugal pump with inlet and outlet flange are DN32. with flow rate Q: 2~16 m³/h @ 50Hz, 2900r/min. It mianly used to transfer fresh water, widely used for water transfer, cooling, jockey pump and RO system.
1. Model Key
TD32-12.5-25
- TD – Industrial pump code
- 32 – Pump inlet and outlet flange are DN32
- 12.5 – Pump rated capacity is 12.5m³/h
- 25 – Pump rated head is 25m
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Casing | HT200 |
| 2 | Impeller | HT200/1Cr18Ni9 |
| 3 | Casing Cover | HT200 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Coupling Guard | 1Cr18Ni9 |
| 6 | Pump Shaft | 1Cr18Ni9 |
| 7 | Air release bolt | 1Cr18Ni9 |
| 8 | Seal O Ring | NBR/FKM/EPDM |
| 9 | Plug | 1Cr18Ni9 |
| 10 | Coupling | QT450 |
| 11 | Seal Cover | 45# Steel |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor | Q | 2 | 4 | 6 | 8 | 10 | 12.5 | 14 | 16 |
| (Kw) | (m³/h) | |||||||||
| TD32-8-18 | 1.1 | H (m) | 19.4 | 19.1 | 18.7 | 18 | 16.7 | 14.3 | ||
| TD32-12.5-21 | 1.5 | 24.5 | 24.2 | 23.9 | 23.3 | 22.5 | 21 | 19.4 | 15.8 | |
| TD32-12.5-25 | 2.2 | 28.3 | 28.2 | 28 | 27.5 | 26.7 | 25 | 23.6 | 20.6 | |
| TD32-12.5-32 | 3 | 34.3 | 34.2 | 33.9 | 33.6 | 33.1 | 32 | 30.8 | 28.1 | |
| TD32-12.5-38 | 4 | 39.8 | 39.8 | 39.7 | 39.4 | 39 | 38 | 37 | 35.1 | |
| TD32-12.5-50 | 5.5 | 51.7 | 51.6 | 51.4 | 51.1 | 50.7 | 50 | 49.3 | 48 |
4. Dimensions and Weights:
@ 50Hz, 2900r/min
