TD40
Type: Vertical Centrifugal Pump
Stage: Single
Fluid: Fresh Water
Application: Water Supply/Jockey Pump/RO System/ Cooling/
Q(@50Hz, 2900r/min): 4 ~ 32 m³/h
Hmax(@50Hz, 2900r/min): 49.8 m
Inlet and Outlet Flange: DN40
Description
TD40 inline single stage pump is a vertical centrifugal pump with inlet and outlet flange are DN40. with flow rate Q: 4~32 m³/h @ 50Hz, 2900r/min. It mianly used to transfer fresh water, widely used for water transfer, cooling, jockey pump and RO system.
1. Model Key
TD40-12.5-20
- TD – Industrial pump code
- 40 – Pump inlet and outlet flange are DN40
- 12.5 – Pump rated capacity is 12.5m³/h
- 20 – Pump rated head is 20m
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Casing | HT200 |
| 2 | Impeller | HT200/1Cr18Ni9 |
| 3 | Casing Cover | HT200 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Coupling Guard | 1Cr18Ni9 |
| 6 | Pump Shaft | 1Cr18Ni9 |
| 7 | Air release bolt | 1Cr18Ni9 |
| 8 | Seal O Ring | NBR/FKM/EPDM |
| 9 | Plug | 1Cr18Ni9 |
| 10 | Coupling | QT450 |
| 11 | Seal Cover | 45# Steel |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor | Q | 4 | 8 | 12.5 | 16 | 20 | 25 | 28 | 32 |
| (Kw) | (m³/h) | |||||||||
| TD40-12.5-16 | 1.1 | H (m) | 17.8 | 17.3 | 16 | 12.5 | ||||
| TD40-12.5-20 | 1.5 | 21.5 | 21.1 | 20 | 17.2 | |||||
| TD40-20-18 | 2.2 | 19.9 | 19.8 | 19.5 | 19 | 18 | 15.8 | |||
| TD40-20-25 | 3 | 27.7 | 27.5 | 27.1 | 26.4 | 25 | 22.5 | |||
| TD40-25-30 | 4 | 33.8 | 33.6 | 33.1 | 32.6 | 31.7 | 30 | 28.6 | 26.1 | |
| TD40-25-36 | 5.5 | 39 | 38.8 | 38.5 | 38.1 | 37.3 | 36 | 35 | 32.6 | |
| TD40-25-48 | 7.5 | 49.8 | 49.7 | 49.5 | 49.4 | 49 | 48 | 46.6 | 44.2 |

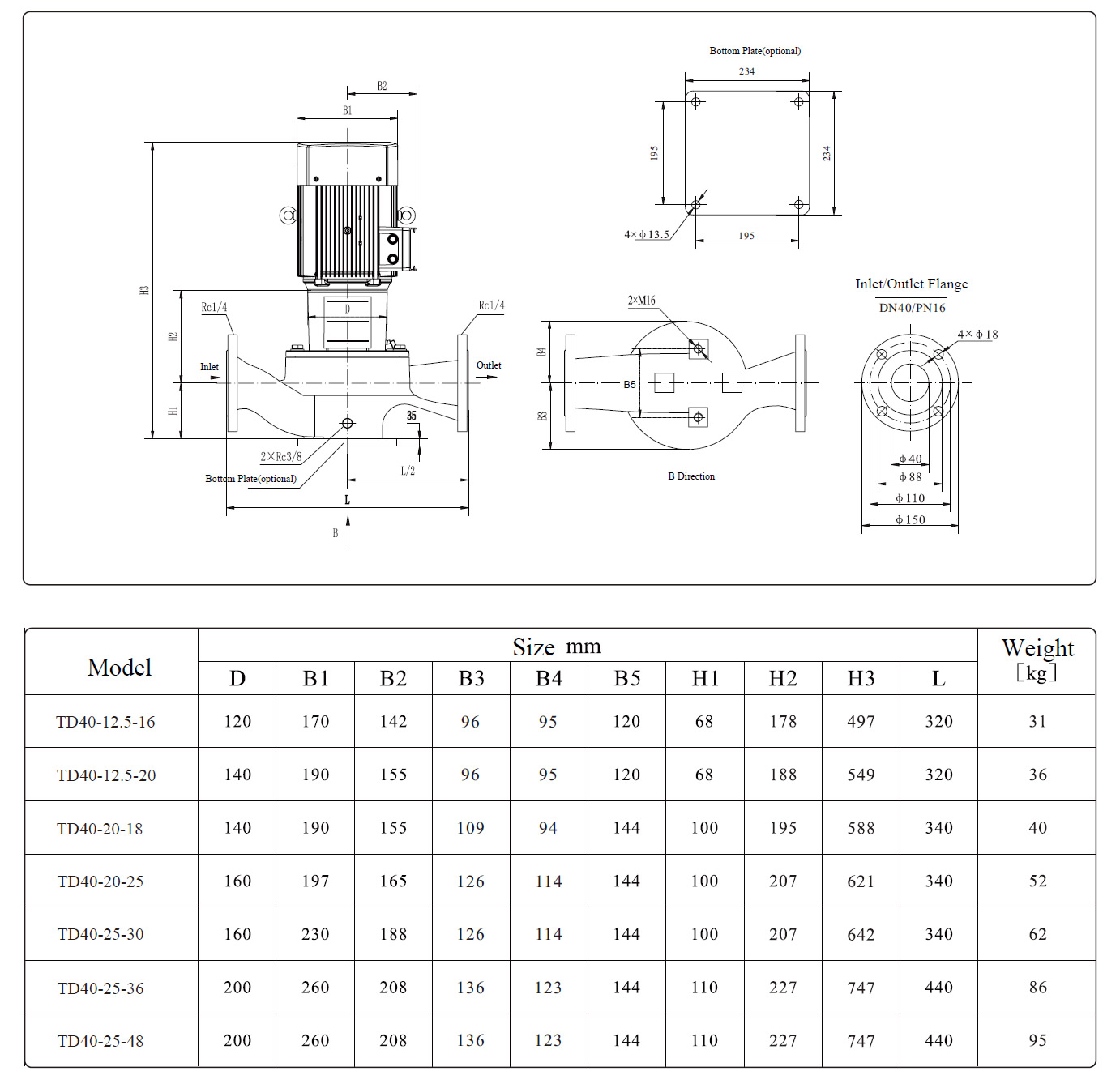

4. Dimensions and Weights:
@ 50Hz, 2900r/min
