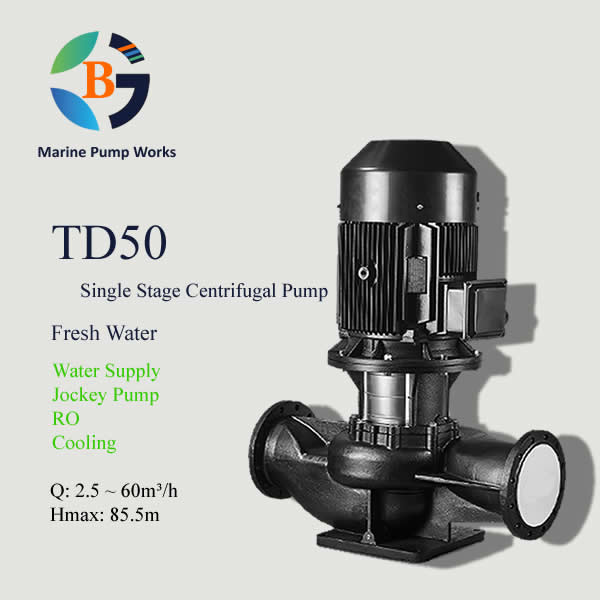

TD50
Type: Vertical Centrifugal Pump
Stage: Single
Fluid: Fresh Water
Application: Water Supply/Jockey Pump/RO System/ Cooling/
Q(@50Hz, 2900r/min): 2.5 ~ 60 m³/h
Hmax(@50Hz, 2900r/min): 85.5 m
Inlet and Outlet Flange: DN50
Description
TD50 inline single stage pump is a vertical centrifugal pump with inlet and outlet flange are DN50. with flow rate Q: 2.5~60 m³/h @ 50Hz, 2900r/min. It mianly used to transfer fresh water, widely used for water transfer, cooling, jockey pump and RO system.
1. Model Key
TD50-12.5-32
- TD – Industrial pump code
- 50 – Pump inlet and outlet flange are DN50
- 12.5 – Pump rated capacity is 12.5m³/h
- 32 – Pump rated head is 32m
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Casing | HT200 |
| 2 | Impeller | HT200/1Cr18Ni9 |
| 3 | Casing Cover | HT200 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Coupling Guard | 1Cr18Ni9 |
| 6 | Pump Shaft | 1Cr18Ni9 |
| 7 | Air release bolt | 1Cr18Ni9 |
| 8 | Seal O Ring | NBR/FKM/EPDM |
| 9 | Plug | 1Cr18Ni9 |
| 10 | Coupling | QT450 |
| 11 | Seal Cover | 45# Steel |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor | Q | 2.5 | 5 | 7.5 | 10 | 12.5 | 15 | 17.5 | 20 |
| (Kw) | (m³/h) | |||||||||
| TD50-12.5-32 | 3 | H (m) | 34.9 | 34.6 | 34 | 33.2 | 32 | 30.5 | 27.9 | 23.2 |
| TD50-12.5-38 | 4 | 40.7 | 40.6 | 40.2 | 39.2 | 38 | 36.2 | 33.9 | 30.3 | |
| TD50-12.5-48 | 5.5 | 50.4 | 50 | 49.7 | 49 | 48 | 46.5 | 44.2 | 40.6 |
| Model | Motor | Q | 5 | 10 | 16 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 50 |
| (Kw) | (m³/h) | ||||||||||||
| TD50-16-12 | 1.1 | H (m) | 15.2 | 14.2 | 12 | 10 | |||||||
| TD50-20-15 | 1.5 | 18.9 | 18 | 16.5 | 15 | 12.6 | |||||||
| TD50-25-18 | 2.2 | 22.8 | 22.3 | 21 | 19.8 | 18 | 15 | ||||||
| TD50-25-24 | 3 | 26.2 | 26 | 25.5 | 25 | 24 | 22.3 | ||||||
| TD50-30-28 | 4 | 31.5 | 31.3 | 31 | 30.5 | 29.5 | 28 | 25.5 | |||||
| TD50-30-35 | 5.5 | 36.9 | 36.7 | 36.5 | 36.2 | 35.8 | 35 | 33.7 | 31.5 | ||||
| TD50-35-40 | 7.5 | 42.3 | 42.2 | 41.9 | 41.7 | 41.3 | 40.8 | 40 | 38.3 | 35 | |||
| TD50-40-50 | 11 | 53.5 | 53.4 | 53.1 | 52.9 | 52.5 | 51.9 | 51.1 | 50 | 48.4 | 45.8 | ||
| TD50-50-60 | 15 | 65.7 | 65.8 | 65.7 | 65.6 | 65.3 | 64.7 | 63.9 | 62.8 | 61.6 | 60 | 55.4 | |
| TD50-50-70 | 18.5 | 73.7 | 73.6 | 73.4 | 73.3 | 73.1 | 72.9 | 72.5 | 72 | 71.2 | 70 | 65.4 | |
| TD50-80-81 | 22 | 85.5 | 85.3 | 85 | 84.8 | 84.5 | 84 | 83.5 | 82.8 | 82.1 | 81 | 77.1 |

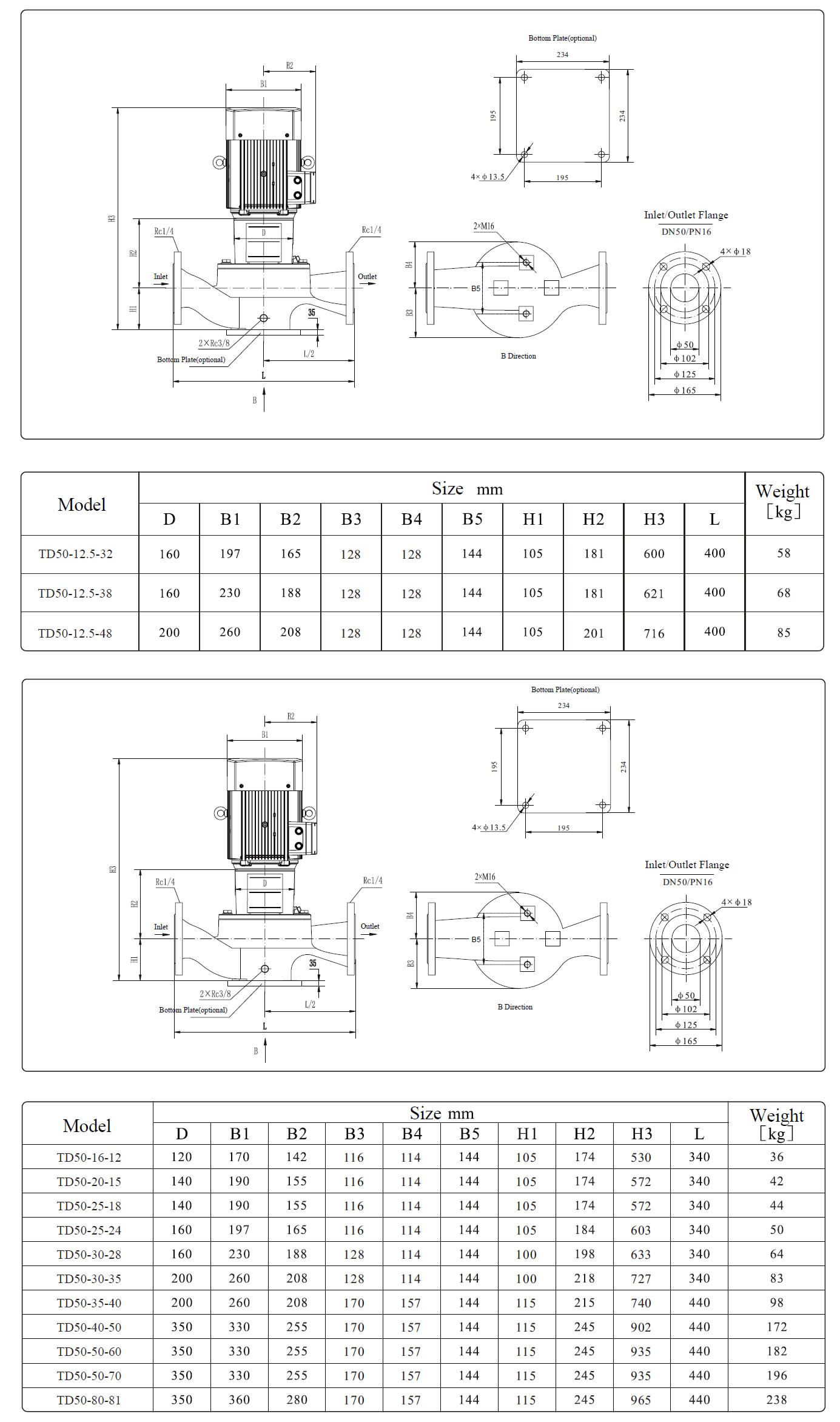

4. Dimensions and Weights:
@ 50Hz, 2900r/min
