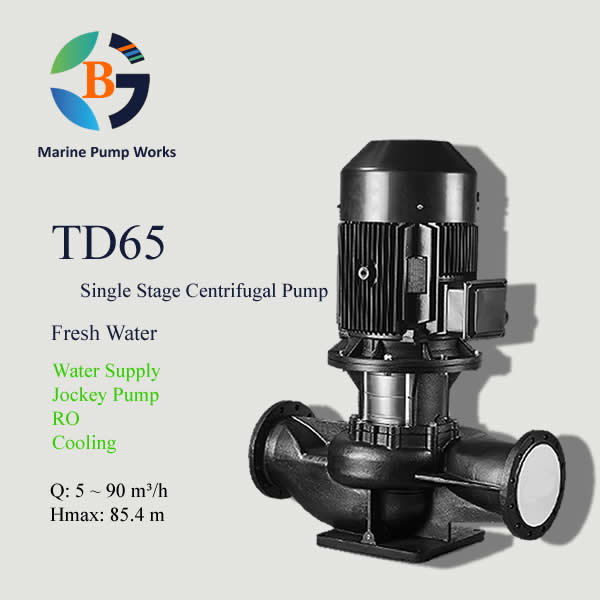

TD65
Type: Vertical Centrifugal Pump
Stage: Single
Fluid: Fresh Water
Application: Water Supply/Jockey Pump/RO System/ Cooling/
Q(@50Hz, 2900r/min): 5 ~ 90 m³/h
Hmax(@50Hz, 2900r/min): 85.4 m
Inlet and Outlet Flange: DN65
Description
TD65 inline single stage pump is a vertical centrifugal pump with inlet and outlet flange are DN65. with flow rate Q: 5~90 m³/h @ 50Hz, 2900r/min. It mianly used to transfer fresh water, widely used for water transfer, cooling, jockey pump and RO system.
1. Model Key
TD65-50-34
- TD – Industrial pump code
- 65 – Pump inlet and outlet flange are DN65
- 50 – Pump rated capacity is 50m³/h
- 34 – Pump rated head is 34m
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Casing | HT200 |
| 2 | Impeller | HT200/1Cr18Ni9 |
| 3 | Casing Cover | HT200 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Coupling Guard | 1Cr18Ni9 |
| 6 | Pump Shaft | 1Cr18Ni9 |
| 7 | Air release bolt | 1Cr18Ni9 |
| 8 | Seal O Ring | NBR/FKM/EPDM |
| 9 | Plug | 1Cr18Ni9 |
| 10 | Coupling | QT450 |
| 11 | Seal Cover | 45# Steel |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor | Q | 5 | 10 | 15 | 20 | 25 | 30 | 35 |
| (Kw) | (m³/h) | ||||||||
| TD65-25-36 | 5.5 | H (m) | 39.2 | 39.1 | 38.9 | 38.2 | 36 | 31.8 | 24.8 |
| TD65-25-48 | 7.5 | 50.4 | 50.3 | 50 | 49.3 | 48 | 45.9 | 42.5 |
| Model | Motor | Q | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| (Kw) | (m³/h) | ||||||||||
| TD65-30-15 | 2.2 | H (m) | 17.9 | 17 | 15 | 10.7 | |||||
| TD65-30-19 | 3 | 21.7 | 20.8 | 19 | 15.2 | ||||||
| TD65-40-22 | 4 | 25.1 | 24.7 | 23.9 | 22 | 17.5 | |||||
| TD65-40-30 | 5.5 | 32.4 | 32.1 | 31.5 | 30 | 26.1 | |||||
| TD65-50-34 | 7.5 | 38.6 | 38.2 | 37.6 | 36.4 | 34 | 29.6 | ||||
| TD65-50-40 | 11 | 43.4 | 42.9 | 42.3 | 41.4 | 40 | 37.6 | ||||
| TD65-50-50 | 15 | 53.6 | 53.3 | 52.7 | 51.6 | 50 | 47.3 | ||||
| TD65-50-61 | 18.5 | 63.1 | 63.2 | 63 | 62.3 | 61 | 58.8 | 54.8 | |||
| TD65-50-67 | 22 | 68 | 67.8 | 67.7 | 67.5 | 67 | 65.8 | 63.4 | 59.7 | ||
| TD65-50-83 | 30 | 85.4 | 85.1 | 84.6 | 83.9 | 83 | 81.7 | 80 | 77.8 | 74.2 |

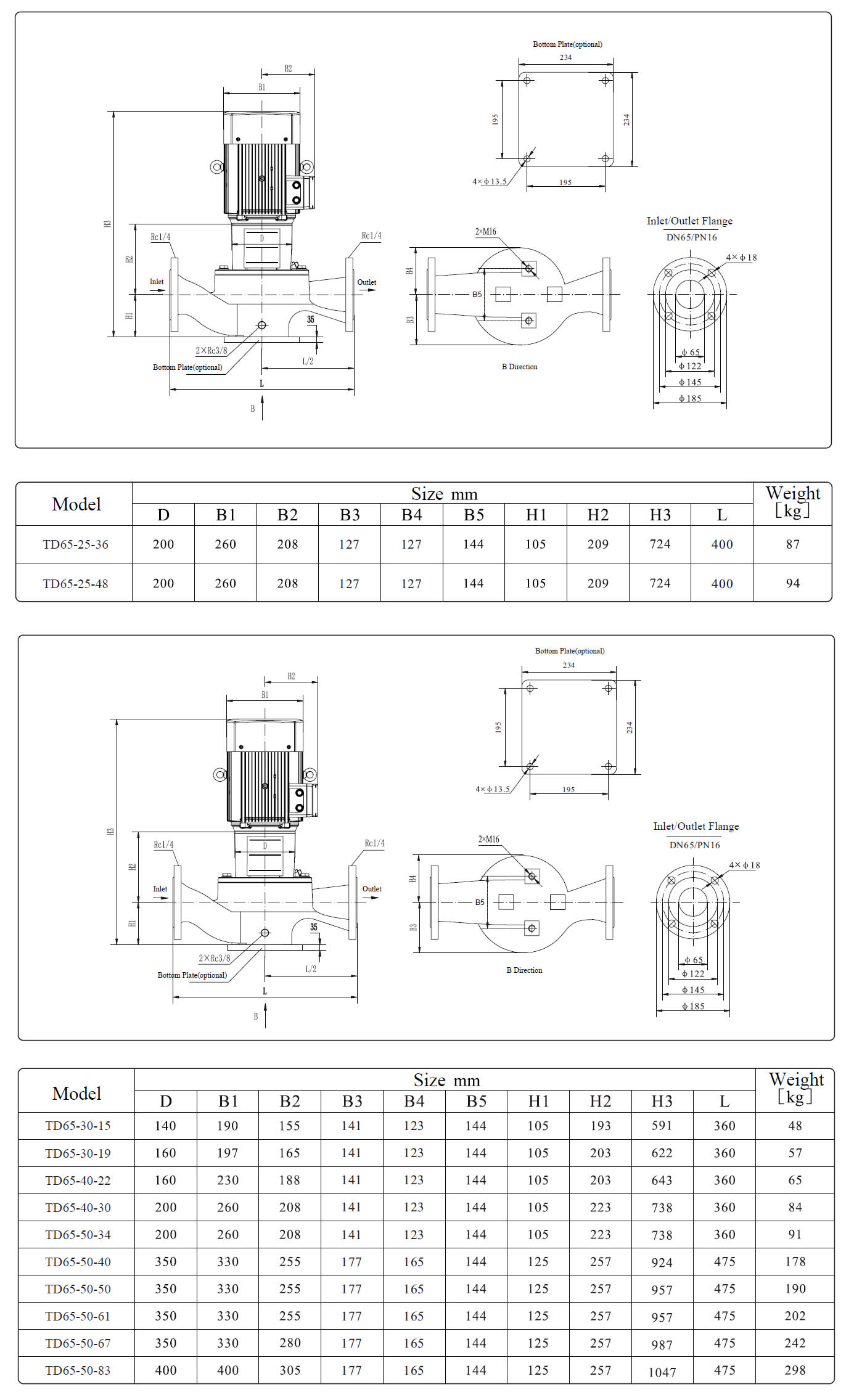

4. Dimensions and Weights:
@ 50Hz, 2900r/min
