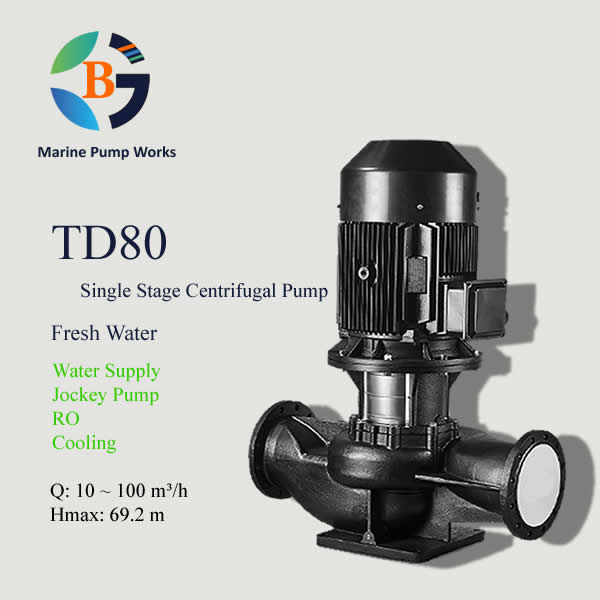

TD80
Type: Vertical Centrifugal Pump
Stage: Single
Fluid: Fresh Water
Application: Water Supply/Jockey Pump/RO System/ Cooling/
Q(@50Hz, 2900r/min): 10 ~ 100 m³/h
Hmax(@50Hz, 2900r/min): 69.2 m
Inlet and Outlet Flange: DN80
Description
TD80 inline single stage pump is a vertical centrifugal pump with inlet and outlet flange are DN80. with flow rate Q: 10~100 m³/h @ 50Hz, 2900r/min. It mianly used to transfer fresh water, widely used for water transfer, cooling, jockey pump and RO system.
1. Model Key
TD80-50-48
- TD – Industrial pump code
- 80 – Pump inlet and outlet flange are DN80
- 50 – Pump rated capacity is 50m³/h
- 48 – Pump rated head is 48m
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Casing | HT200 |
| 2 | Impeller | HT200/1Cr18Ni9 |
| 3 | Casing Cover | HT200 |
| 4 | Mechanical Seal | TC-CA/ TC-TC |
| 5 | Coupling Guard | 1Cr18Ni9 |
| 6 | Pump Shaft | 1Cr18Ni9 |
| 7 | Air release bolt | 1Cr18Ni9 |
| 8 | Seal O Ring | NBR/FKM/EPDM |
| 9 | Plug | 1Cr18Ni9 |
| 10 | Coupling | QT450 |
| 11 | Seal Cover | 45# Steel |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor | Q | 10 | 20 | 30 | 40 | 50 | 60 | 65 |
| (Kw) | (m³/h) | ||||||||
| TD80-50-40 | 11 | H (m) | 42.8 | 42.8 | 42.7 | 41.8 | 40 | 36.5 | |
| TD80-50-48 | 15 | 50.4 | 50.4 | 50.2 | 49.5 | 48 | 45 | 42.6 |
| Model | Motor | Q | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| (Kw) | (m³/h) | |||||||||||
| TD80-50-13 | 3 | H (m) | 16.1 | 15.8 | 15.2 | 14.3 | 13 | 10.9 | ||||
| TD80-50-18 | 4 | 21.1 | 20.8 | 20.2 | 19.2 | 18 | 16.2 | 13.2 | ||||
| TD80-50-22 | 5.5 | 24.4 | 24.1 | 23.7 | 23 | 22 | 20.5 | 18 | 14.3 | |||
| TD80-50-28 | 7.5 | 30.6 | 30.4 | 30 | 29.3 | 28 | 26.3 | 24 | 20.6 | |||
| TD80-80-30 | 11 | 34.8 | 34.5 | 34.2 | 33.8 | 33.2 | 32.4 | 31.3 | 30 | 27.8 | 24.7 | |
| TD80-80-38 | 15 | 41.2 | 41.2 | 41.1 | 40.9 | 40.6 | 40.1 | 39.3 | 38 | 36 | 32.9 | |
| TD80-80-47 | 18.5 | 50.6 | 50.4 | 50 | 49.8 | 49.6 | 49.1 | 48.3 | 47 | 44.8 | 41.4 | |
| TD80-80-54 | 22 | 57 | 57 | 56.8 | 56.6 | 56.3 | 56 | 55.3 | 54 | 52.2 | 49.2 | |
| TD80-80-67 | 30 | 69.2 | 69 | 68.8 | 68.7 | 68.6 | 68.3 | 67.8 | 67 | 65.9 | 63.9 |

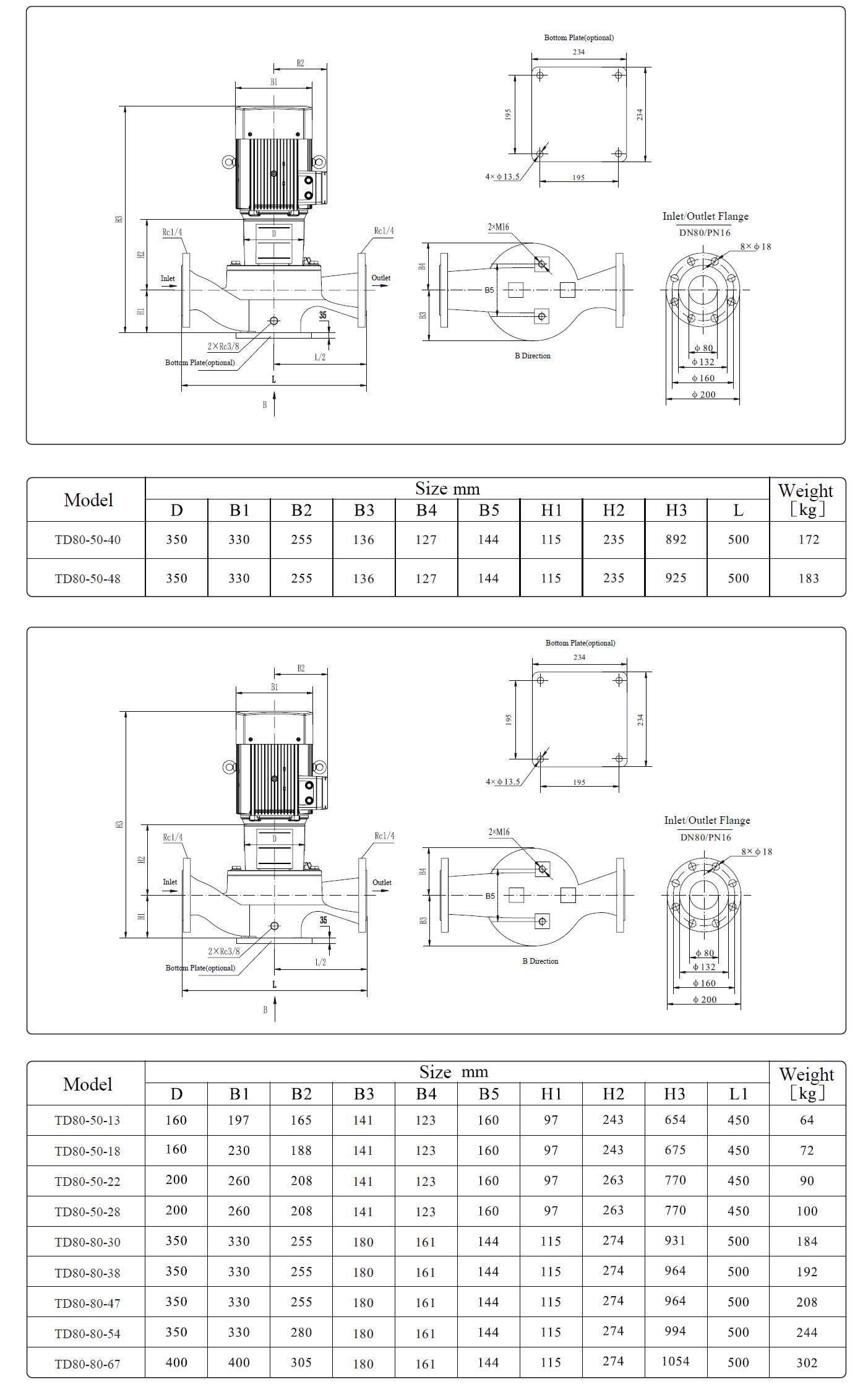

4. Dimensions and Weights:
@ 50Hz, 2900r/min
