TM12
Type: Horizontal Multistage Centrifugal Pump
Stage: Multistage
Fluid: Fresh Water
Application: Water Supply/ Cooling
Q(@50Hz, 2900r/min): 7 ~ 12 m³/h
Hmax(@50Hz, 2900r/min): 60 m
Inlet and Outlet Size: Rp1-1/2
Description
TM12 horizontal multistage pump is centrifugal pump with flow range Q: 7~12m³/h and max. head 60m @ 2900rpm, 50Hz. It’s designed to transfer fresh water and widely used for water supply and cooling.
1. Model Key
TM12-50
- TM – Industrial pump code
- 12 – Pump rated capacity is 12 m³/h
- 50 – Number of impellers is 5
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Pump Inlet | HT200/SUS304 |
| 3 | Pull Rod | SUS304 |
| 4 | Impeller | SUS304 |
| 5 | Diffuser | SUS304 |
| 6 | Pump Outlet | HT200/SUS304 |
| 7 | Motor Base | AISI1015 |
| 8 | Mechanical Seal | Assembly |
| 9 | Shaft | SUS304 |
| 10 | Support Diffuser | SUS304 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor | Q | 7 | 9 | 11 | 12 | 13 | 15 | 16 |
| (Kw) | (m³/h) | ||||||||
| TM12-20 | 1.2 | H (m) | 23 | 22 | 20.5 | 19.5 | 18.5 | 15.5 | 13 |
| TM12-30 | 1.8 | 35 | 33.5 | 31 | 29.5 | 28 | 23.5 | 20 | |
| TM12-40 | 2.4 | 47 | 45 | 41.5 | 39.5 | 37.5 | 31.5 | 27.5 | |
| TM12-50 | 3 | 60 | 56.5 | 52.5 | 50 | 47 | 40 | 35 |

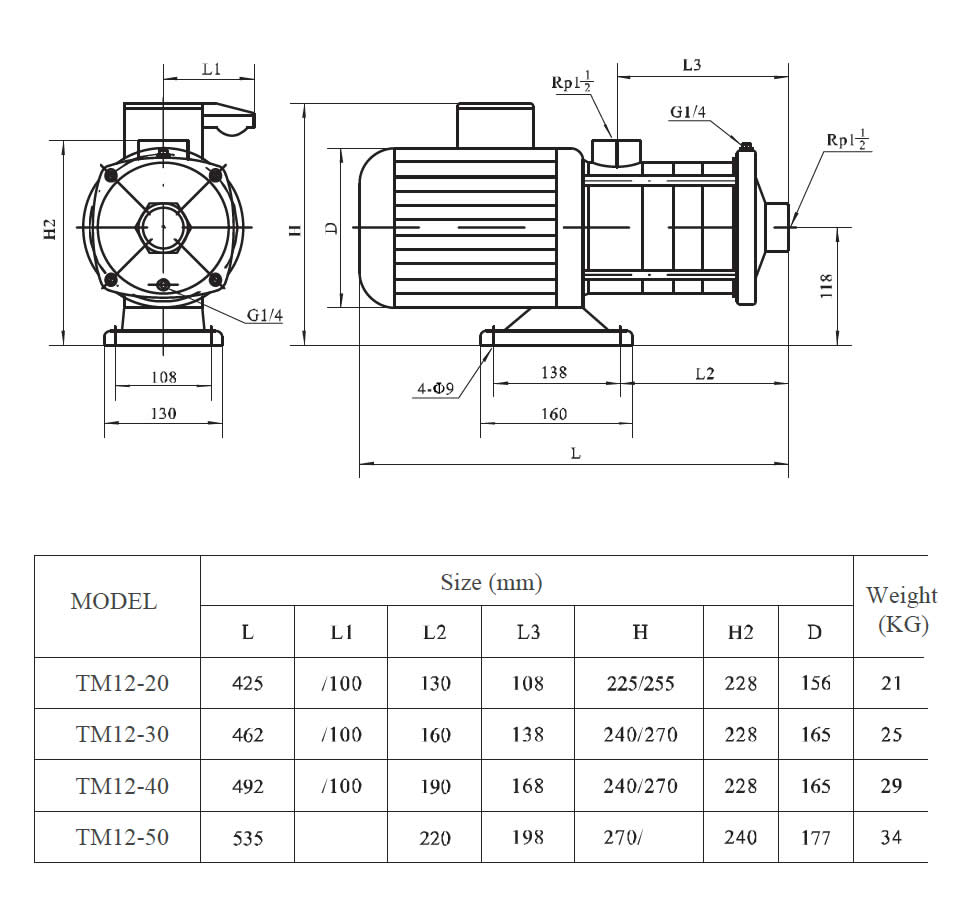

4. Dimensions and Weight:
@ 50Hz, 2900r/min
