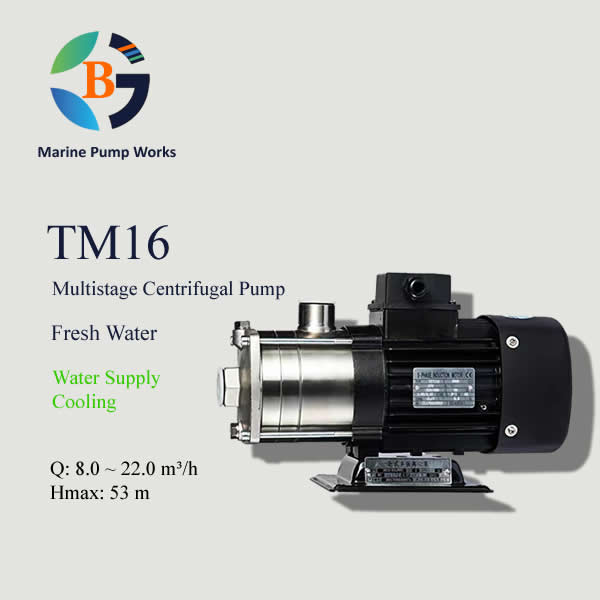

TM16
Type: Horizontal Multistage Centrifugal Pump
Stage: Multistage
Fluid: Fresh Water
Application: Water Supply/ Cooling
Q(@50Hz, 2900r/min): 8 ~ 22 m³/h
Hmax(@50Hz, 2900r/min): 53 m
Inlet and Outlet Size: Rp2
Description
TM16 horizontal multistage pump is centrifugal pump with flow range Q: 8~22m³/h and max. head 60m @ 2900rpm, 50Hz. It’s designed to transfer fresh water and widely used for water supply and cooling.
1. Model Key
TM16-30
- TM – Industrial pump code
- 16 – Pump rated capacity is 16 m³/h
- 30 – Number of impellers is 3
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Pump Inlet | HT200/SUS304 |
| 3 | Pull Rod | SUS304 |
| 4 | Impeller | SUS304 |
| 5 | Diffuser | SUS304 |
| 6 | Pump Outlet | HT200/SUS304 |
| 7 | Motor Base | AISI1015 |
| 8 | Mechanical Seal | Assembly |
| 9 | Shaft | SUS304 |
| 10 | Support Diffuser | SUS304 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor | Q | 8 | 10 | 12 | 14 | 16 | 16 | 20 | 22 |
| (Kw) | (m³/h) | |||||||||
| TM16-20 | 2.2 | H (m) | 26 | 25 | 24 | 23 | 21.6 | 20 | 18 | 15.5 |
| TM16-30 | 3 | 41 | 39 | 38 | 36 | 34 | 31.5 | 29 | 25 | |
| TM16-40 | 4 | 53.5 | 52 | 50 | 48 | 45 | 42 | 38 | 33.5 |
4. Dimensions and Weight:
@ 50Hz, 2900r/min
